74197 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) IGNITION/ELECTRICAL ASSEMBLY (CV23-75526 KOHLER) Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

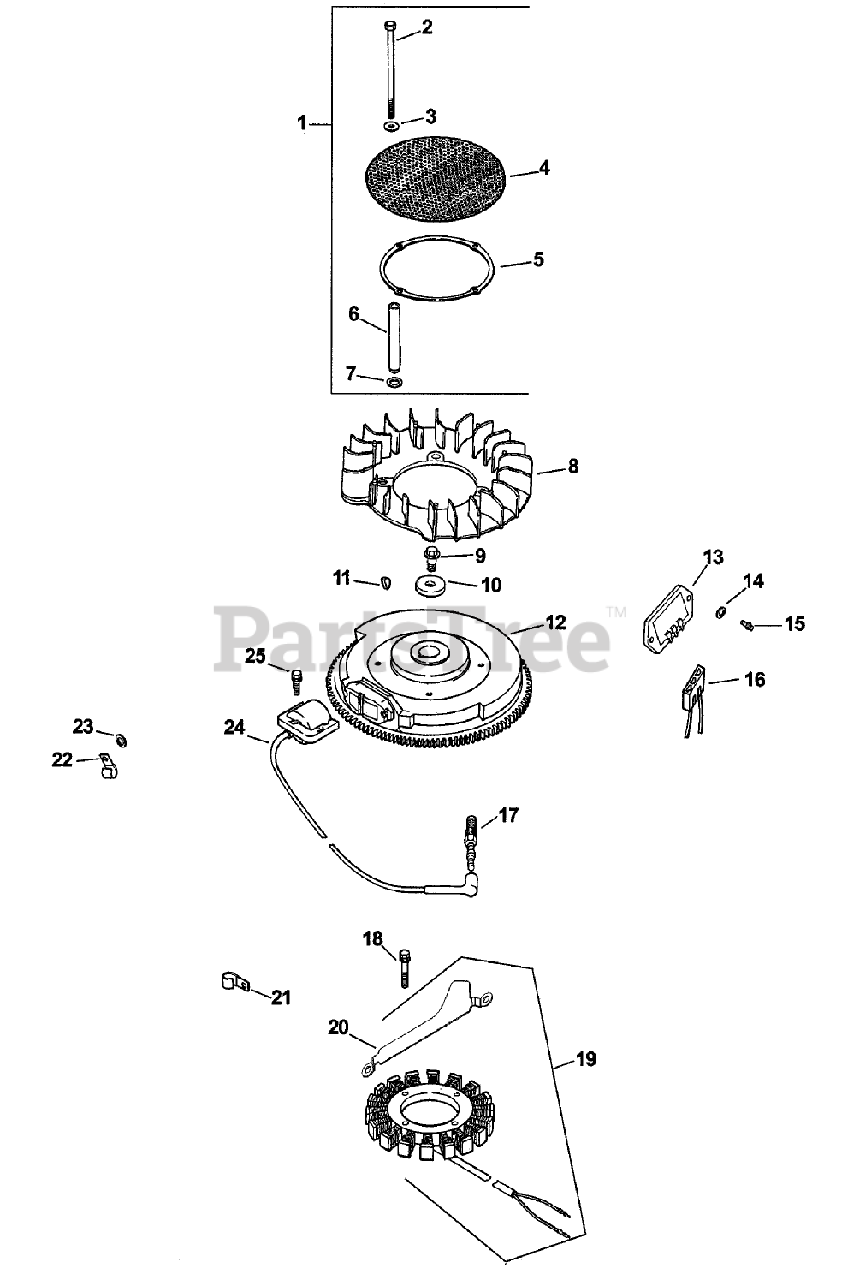

IGNITION/ELECTRICAL ASSEMBLY (CV23-75526 KOHLER) Parts Diagram

  • Title

1

Kohler 24 755 79-S

Kit, chopper screen (Includes 2-7)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$130.99

$

Usually ships in 2-5 days

0

2

Toro M-0603100-S

Screw, hex. cap

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

3

Kohler X-25-53-S

WASHER-FLAT (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

4

Kohler 24 162 25-S

Screen-Grass
(Superseded to 24 162 41-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$24.99

$

In Stock, only 1 left!

0

5

Kohler 24 141 06-S

Ring-Support
(Superseded to 25 141 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

Usually ships in 2-5 days

0

6

Kohler 24 112 14-S

Spacer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$18.99

$

Usually ships in 2-5 days

0

7

Kohler 24 468 11-S

Washer-Spring (10MM)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 24 157 03-S

Fan
(Superseded to 24 755 253-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$46.99

$

Usually ships in 2-5 days

0

9

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 12

0

10

Kohler 12 468 03-S

WASHER-FLAT (13/32)
(Superseded to 25 468 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 2 left!

0

11

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 6

0

12

Kohler 24 025 04-S

Flywheel
(Superseded to 24 025 55-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

Kohler 25 403 03-S

Rectifier-Regulator, 15 amp
(Superseded to 41 403 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler X-25-92-S

WASHER-FLAT (.188)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

15

Kohler 24 086 18-S

SCREW-PHL HD (11-16X.88)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 236602-S

Connector (3 contact)
(Superseded to 25 155 41-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$24.99

$

In Stock, only 1 left!

0

17

Kohler 12 132 06-S

Spark Plug
(Superseded to 25 132 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$20.99

$

Usually ships in 2-5 days

0

18

Toro M-0548025-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

19

Kohler 54 755 09-S

Kit, 15 amp stator (Includes Bracket, stator wire 24 126 71)
(Superseded to 237878-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$149.99

$

In Stock, Qty 8

0

20

Kohler 24 126 71-S

Bracket-Wire, Stator
(Superseded to 24 126 139-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

Usually ships in 2-5 days

0

21

Kohler 235173-S

CLIP-CABLE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

Usually ships in 2-5 days

0

22

Kohler 48 154 02-S

Clip-Cable

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

Usually ships in 2-5 days

0

23

Kohler X-25-63-S

WASHER-FLAT (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

24

Kohler 24 584 01-S

Module-Ignition
(Superseded to 24 584 45-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

25

Toro M-0545020-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

Kohler 24 176 07-S

Harness, wiring
(Superseded to 24 176 109-S)

Note: Not illustrated

$46.99

$

Usually ships in 2-5 days

0

Kohler 24 176 07-S

Harness, wiring
(Superseded to 24 176 109-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$46.99

$

Usually ships in 2-5 days

0

Kohler 25 518 28-S

Lead, black (rectifier-regulator 4" 18 gauge-insulated grip barrel eyelets)
(Superseded to 24 518 12-S)

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 25 518 28-S

Lead, black (rectifier-regulator 4" 18 gauge-insulated grip barrel eyelets)
(Superseded to 24 518 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

Usually ships in 2-5 days

0
