74197 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) HEAD/VALVE/BREATHER ASSEMBLY (CV23-75526 KOHLER) Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

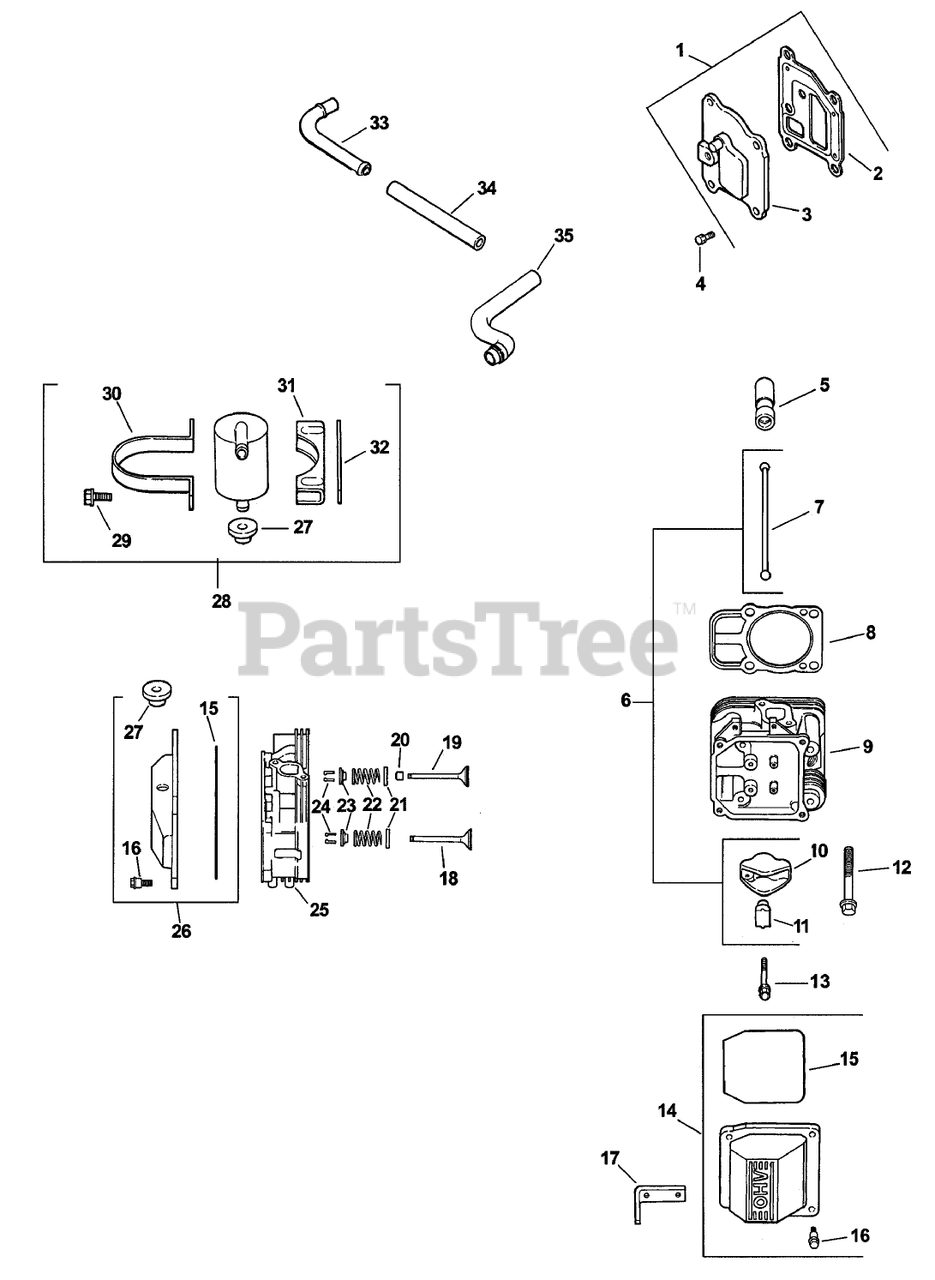

HEAD/VALVE/BREATHER ASSEMBLY (CV23-75526 KOHLER) Parts Diagram

  • Title

1

Kohler 24 033 03-S

Kit, breather cover w/gasket (Incl. 2,3)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 23-S

Gasket-Breather
(Superseded to 24 041 67-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, Qty 9

0

3

Kohler 24 096 59-S

Cover, breather
(Superseded to 24 033 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, only 1 left!

0

4

Toro M-0645020-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

5

Kohler 25 351 01-S

Lifter-Valve
(Superseded to 25 351 11-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$23.99

$

In Stock, only 4 left!

0

6

Kohler 24 755 66-S

Kit, valve train (Includes 7,10,11)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$45.99

$

In Stock, only 3 left!

0

7

Kohler 24 411 05-S

ROD-PUSH

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, Qty 9

0

8

Kohler 24 041 40-S

Gasket-Cylinder Head
(Superseded to 24 841 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$45.99

$

In Stock, only 2 left!

0

9

Kohler 24 318 12-S

Head assembly, #2 cylinder
(Superseded to 24 318 70-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$240.99

$

Usually ships in 2-5 days

0

10

Kohler 25 186 01-S

ARM-ROCKER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, only 2 left!

0

11

Kohler 24 599 01-S

Pivot-Arm, Rocker
(Superseded to 24 599 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 8

0

12

Kohler 12 086 16-S

SCREW-FLANGE (M10X1.5X90)
(Superseded to 62 086 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, Qty 5

0

13

Toro M-0640034-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

14

Kohler 24 755 74-S

Kit, valve cover-plain (Includes 15,16)
(Superseded to 24 755 141-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$35.99

$

In Stock, only 2 left!

0

15

Kohler 24 153 16-S

O-Ring
(Superseded to 24 153 23-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$18.99

$

In Stock, only 1 left!

0

16

Kohler 24 086 32-S

Screw-Shoulder (M6x1.0x30)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 11

0

17

Kohler 24 445 01-S

STRAP-LIFTING
(Superseded to 25 445 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

18

Kohler 24 016 01-S

VALVE-EXHAUST (STD)
(Superseded to 32 016 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

In Stock, only 4 left!

0

Kohler 24 016 02-S

VALVE-EXHAUST (.25)
(Superseded to 32 016 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

In Stock, only 3 left!

0

19

Kohler 24 017 01-S

VALVE-INTAKE (STD)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$30.99

$

In Stock, Qty 17

0

Kohler 24 017 02-S

VALVE-INTAKE (.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

Kohler 24 032 05-S

Seal-Stem, Valve
(Superseded to 66 032 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

In Stock, Qty 8

0

21

Kohler 235011-S

RETAINER-SPRING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 2 left!

0

22

Kohler 24 089 02-S

SPRING-VALVE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.99

$

In Stock, only 2 left!

0

23

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.49

$

In Stock, Qty 5

0

24

Kohler 12 755 03-S

RETAINER KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, only 2 left!

0

25

Kohler 24 318 11-S

Head assembly, #1 cylinder
(Superseded to 24 318 67-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$240.99

$

Usually ships in 2-5 days

0

26

Kohler 24 755 76-S

Kit,valve coverbreather(Incl. 15,16,27)
(Superseded to 24 755 142-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$38.99

$

In Stock, only 1 left!

0

27

Kohler 25 313 02-S

Grommet, rubber
(Superseded to 25 313 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

In Stock, only 3 left!

0

28

Kohler 24 755 57-S

Kit, breather separator (Includes 27,29-32)
(Superseded to 24 755 241-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$90.99

$

In Stock, Qty 6

0

29

Toro M-0545016-S

Screw, hex. flange

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

30

Kohler 24 445 02-S

STRAP-BREATHER
(Superseded to 24 755 241-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$90.99

$

In Stock, Qty 6

0

31

Kohler 24 126 44-S

BRACKET-SEPARATOR, BREATHER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

Usually ships in 2-5 days

0

32

Kohler 24 112 12-S

Spacer
(Superseded to 24 755 241-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$90.99

$

In Stock, Qty 6

0

33

Kohler 24 294 06-S

Fitting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, only 1 left!

0

34

Kohler 24 326 13-S

Hose, breather
(Superseded to 24 326 86-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

In Stock, only 1 left!

0

35

Kohler 24 326 14-S

Hose, breather
(Superseded to 24 326 87-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

In Stock, only 1 left!

0
