74195 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 210000001 - 210999999) (2001) CRANKCASE ASSEMBLY KOHLER ENGINE CH20S PS-64650 Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

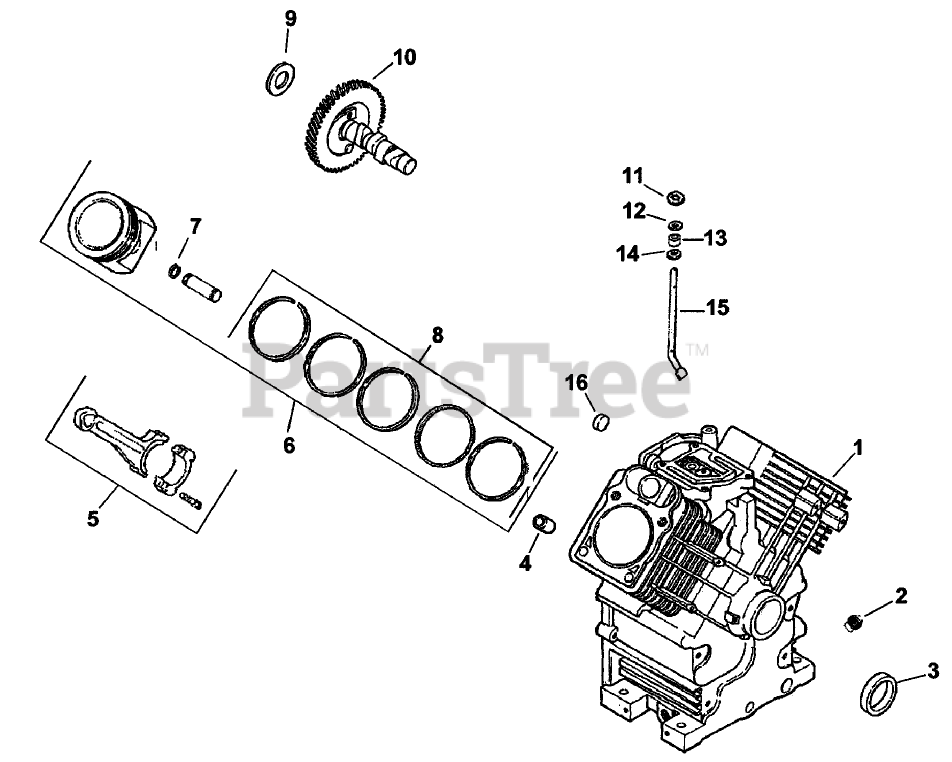

CRANKCASE ASSEMBLY KOHLER ENGINE CH20S PS-64650 Parts Diagram

  • Title
1

Crankcase (Use: Miniblock 24 782 15)

$

$

Not available

2

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

$2.49

$

In Stock, only 3 left!

0

3

Kohler 24 032 01-S

SEAL-OIL
(Superseded to 24 032 19-S)

$7.49

$

In Stock, Qty 20+

0

4

Kohler 24 380 13-S

Pin-Locating
(Superseded to 24 380 16-S)

$4.49

$

In Stock, only 3 left!

0

5

Kohler 24 067 13-S

Rod-Connecting (Standard)
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 4 left!

0

5

Kohler 24 067 14-S

Rod-Connecting (.25)
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

6

Kohler 24 874 01-S

Set-Piston w/ Ring (STD)(Incl. Ref.#7&8)
(Superseded to 24 874 46-S)

$

$

Not available

6

Kohler 24 874 02-S

Piston w/Ring Set (.25)
(Superseded to 24 874 48-S)

$

$

Not available

6

Kohler 24 874 03-S

Piston w/Ring Set (.50)
(Superseded to 24 874 49-S)

$

$

Not available

6

Kohler 24 874 14-S

Piston ASM (.08)
(Superseded to 24 874 47-S)

$

$

Not available

7

Kohler 24 018 01-S

RETAINER-PIN, PISTON

$2.99

$

In Stock, Qty 7

0

8

Kohler 24 108 01-S

Set-Ring (STD)
(Superseded to 24 108 22-S)

$

$

Not available

8

Kohler 24 108 02-S

Ring Set (.25)
(Superseded to 24 108 12-S)

$

$

Not available

8

Kohler 24 108 03-S

Ring Set (.50)
(Superseded to 24 108 25-S)

$

$

Not available

9

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

$2.49

$

In Stock, only 1 left!

0

9

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

$2.99

$

Usually ships in 2-5 days

0

9

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

$2.49

$

In Stock, only 2 left!

0

9

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

$2.49

$

In Stock, only 1 left!

0

9

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 24 012 10-S

Camshaft Kit
(Superseded to 24 012 23-S)

$138.99

$

Usually ships in 2-5 days

0

11

Kohler 24 018 09-S

RETAINER-RING

$2.49

$

Usually ships in 2-5 days

0

12

Kohler M-931010-S

WASHER-FLAT (9MM)

$2.49

$

In Stock, only 2 left!

0

13

Kohler 28 032 09-S

SEAL-CROSS SHAFT, GOVERNOR

$3.49

$

In Stock, Qty 6

0

14

Kohler 24 468 15-S

WASHER-FLAT (11/32)

$2.49

$

In Stock, Qty 5

0

15

Kohler 24 144 33-S

Shaft-Cross, Governor
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

16

$4.99

$

In Stock, only 2 left!

0
