74195 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 210000001 - 210999999) (2001) BAGGER ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

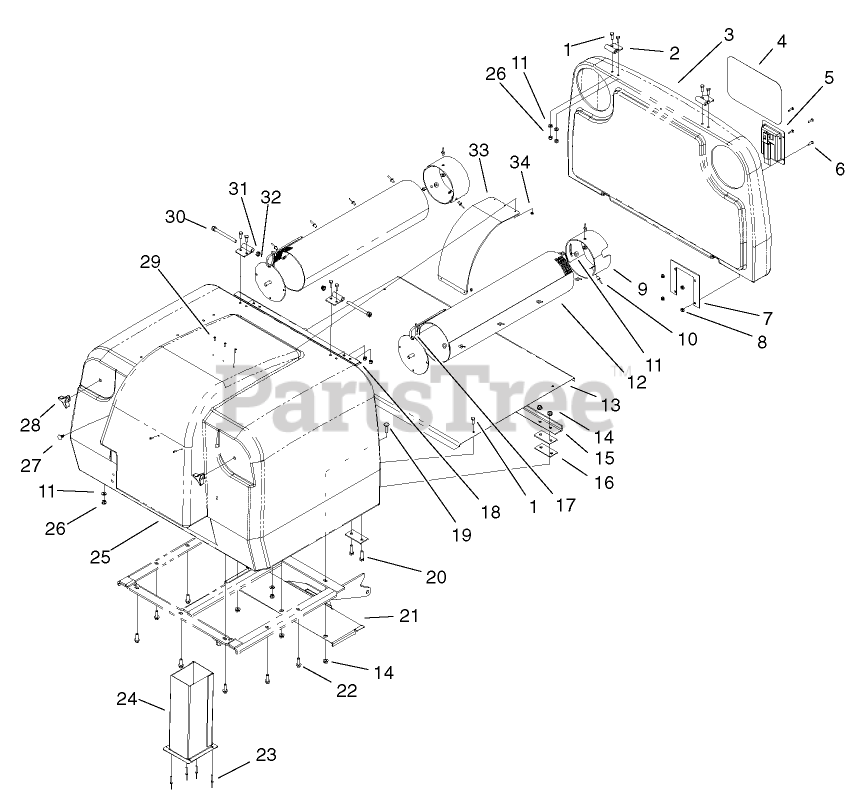

BAGGER ASSEMBLY Parts Diagram

  • Title
1

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

$

$

Not available

3

Toro 100-9617

COVER-BIN

$

$

Not available

4

Toro 67-7310

DECAL

$64.99

$

Usually ships in 3-6 days

0

5

Toro 100-9631

LEVER-LATCH

$

$

Not available

6

Toro 104-2408

SCREW-HSBH

$2.49

$

Usually ships in 3-6 days

0

7

Toro 100-9632-03

PLATE-LATCH

$

$

Not available

8

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

9

Toro 100-5845

RING-SUPPORT

$

$

Not available

10

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 95-6441

SCREEN

$72.99

$

Usually ships in 3-6 days

0

13

Toro 100-4550-03

FLOOR-HOPPER

$

$

Not available

14

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

15

Toro 98-0849-03

FLANGE-BIN

$

$

Not available

16

Toro 98-3004

SPACER

$

$

Not available

17

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

18

Toro 98-3036-03

ANGLE-BIN

$

$

Not available

19

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

21

Toro 100-7773-03

PLATE-LATCH

$

$

Not available

22

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

23

Toro 98-7310

RIVET

$4.99

$

Usually ships in 3-6 days

0

24

Toro 95-6482-03

CHUTE ASM

$

$

Not available

25

Toro 104-2417

BIN-GRASS

$

$

Not available

26

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 104-0395

PLUG-PLASTIC

$1.99

$

Usually ships in 3-6 days

0

28

$

$

Not available

29

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

30

Toro 3274-102

SCREW-HSH

$

$

Not available

31

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

32

Toro 95-6444-03

PLATE ASM

$41.99

$

Usually ships in 3-6 days

0

33

Toro 100-4552

PLATE-WEAR

$25.99

$

Usually ships in 3-6 days

0

34

Toro 3256-12

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0
