74195 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000001 - 200999999) (2000) GEARCASE ASSEMBLY NO. 100-5842 Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

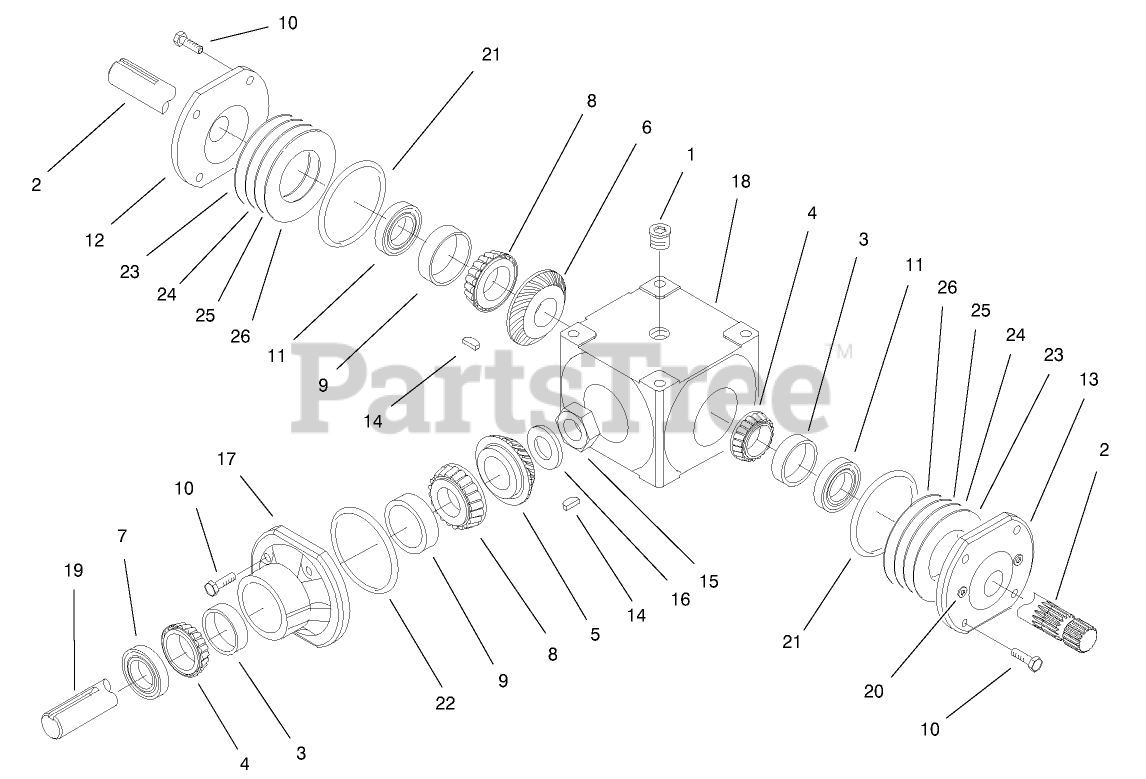

GEARCASE ASSEMBLY NO. 100-5842 Parts Diagram

  • Title

1

Toro 100-5812

PLUG

$23.99

$

Usually ships in 3-6 days

0

2

Toro 100-5828

Shaft-Cross
(Superseded to 104-2423)

$

$

Not available

3

Toro 100-4571

Bearing-Cup
(Superseded to 254-72)

$10.99

$

In Stock, Qty 20+

0

4

Toro 100-4572

Bearing-Cone
(Superseded to 254-94)

$9.49

$

In Stock, Qty 16

0

5

Toro 100-5814

GEAR-SPIRAL, RH

$1090.99

$

Usually ships in 3-6 days

0

6

Toro 100-5815

GEAR-SPIRAL, LH

$1090.99

$

Usually ships in 3-6 days

0

7

Toro 100-4575

SEAL

$57.99

$

In Stock, only 1 left!

0

8

Toro 100-5816

BEARING-CONE

$116.99

$

Usually ships in 3-6 days

0

9

Toro 100-5817

BEARING-CUP

$51.99

$

Usually ships in 3-6 days

0

10

Toro 100-5818

SCREW-HH

$

$

Not available

11

Toro 100-5819

SEAL
(Superseded to 253-118)

$19.99

$

In Stock, Qty 20+

0

12

Toro 100-5820

CAP-END

$

$

Not available

13

Toro 100-5821

END CAP W/ DRAIN PLUGS

$

$

Not available

14

Toro 100-5822

OBS KEY
(Superseded to 3257-33)

$2.49

$

In Stock, only 2 left!

0

15

Toro 100-5823

NUT-LOCK

$

$

Not available

16

Toro 100-5824

WASHER

$16.99

$

Usually ships in 3-6 days

0

17

Toro 100-5825

HOUSING-PINION

$

$

Not available

18

Toro 100-5826

CASE

$

$

Not available

19

Toro 100-5827

Shaft-Pinion
(Superseded to 104-2424)

$

$

Not available

20

Toro 100-4583

PLUG

$

$

Not available

21

Toro 100-5847

O-RING

$23.99

$

Usually ships in 3-6 days

0

22

Toro 100-5848

O-RING
(Superseded to 100-1393)

$19.99

$

Usually ships in 3-6 days

0

23

Toro 100-7757

SHIM-GREEN (.003)
(Superseded to 100-1394)

$19.99

$

Usually ships in 3-6 days

0

24

Toro 100-7758

SHIM-BLUE (.005)

$19.99

$

Usually ships in 3-6 days

0

25

Toro 100-7759

SHIM - BROWN (.010)
(Superseded to 112-7031)

$45.99

$

Usually ships in 3-6 days

0

26

Toro 100-7760

SHIM-YELLOW (.020IN)
(Superseded to 100-1397)

$

$

Not available
