74191 (Z 320) - Toro 122cm Z Master Zero-Turn Mower with Bagger (SN: 089500001 - 089999999) (1998) SEAT AND FENDER ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower with Bagger

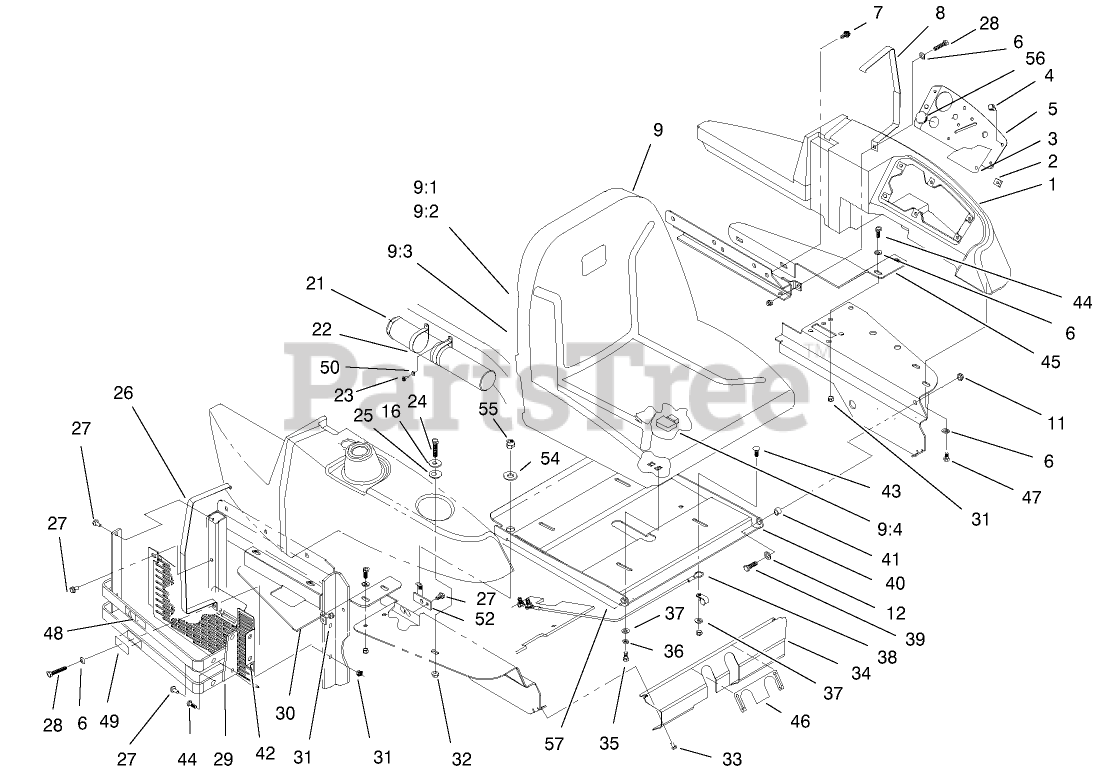

SEAT AND FENDER ASSEMBLY Parts Diagram

  • Title
1

Toro 94-4698

CONSOLE

$

$

Not available

2

Toro 95-1962

CLIP-TINNERMAN

$

$

Not available

3

Toro 98-1973

DECAL - INSTRUMENT

$176.99

$

Usually ships in 3-6 days

0

4

Toro 32144-124

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

5

Toro 98-1999-03

PANEL - INSTRUMENT

$

$

Not available

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

8

Toro 94-9488-03

STRAP-CONSOLE

$

$

Not available

9

Toro 92-6280

SEAT ASM
(Superseded to 104-4620)

$

$

Not available

9:1

Toro 92-6534

SHELL

$

$

Not available

9:2

Toro 92-6533

SEAT CUSHION KIT

$356.99

$

Usually ships in 3-6 days

0

9:3

Toro 351-78

EDGING

$

$

Not available

9:4

Toro 92-6282

SWITCH-SEAT

$33.99

$

Usually ships in 3-6 days

0

Toro 321-3

SCREW-HH

Note: Not illustrated

$1.49

$

In Stock, Qty 20+

0

Toro 351-80

CLIP

Note: Not illustrated

$11.99

$

Usually ships in 3-6 days

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

21

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

22

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

23

Toro 3269-8

RIVET-BLIND

$0.99

$

Usually ships in 3-6 days

0

24

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 240-11

BUSHING-FLANGE

$6.49

$

Usually ships in 3-6 days

0

26

Toro 94-4799-03

STRAP-TANK, FUEL

$

$

Not available

27

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

28

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

29

Toro 98-4377

BUMPER ASM

$

$

Not available

30

Toro 94-4798-01

PLATE-SUPPORT, TANK

$

$

Not available

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

32

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

33

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

34

Toro 94-9491-01

PLATE - COVER, FRONT

$

$

Not available

35

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 98-4371

CABLE-SEAT

$36.99

$

Usually ships in 3-6 days

0

39

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

40

Toro 94-9529-01

SEAT PLATE ASM

$

$

Not available

41

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 4 left!

0

42

Toro 98-1987-03

GUARD - BELT

$

$

Not available

43

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

44

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

45

Toro 94-4635-01

PLATE - CONSOLE SUPT R

$124.99

$

Usually ships in 3-6 days

0

46

Toro 98-1974

DECAL-CONTROL, STEERING

$

$

Not available

47

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

48

Toro 98-1977

DECAL-WARNING

$10.99

$

Usually ships in 3-6 days

0

49

Toro 93-1265

DECAL-SURFACE, HOT

$6.49

$

Usually ships in 3-6 days

0

50

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

52

Toro 98-1985

LATCH ASM

$

$

Not available

54

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

55

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

57

Toro 98-4389

FOAM - PLATE, SEAT

$

$

Not available
