74191 (Z 320) - Toro 122cm Z Master Zero-Turn Mower with Bagger (SN: 089500001 - 089999999) (1998) PARKING BRAKE ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower with Bagger

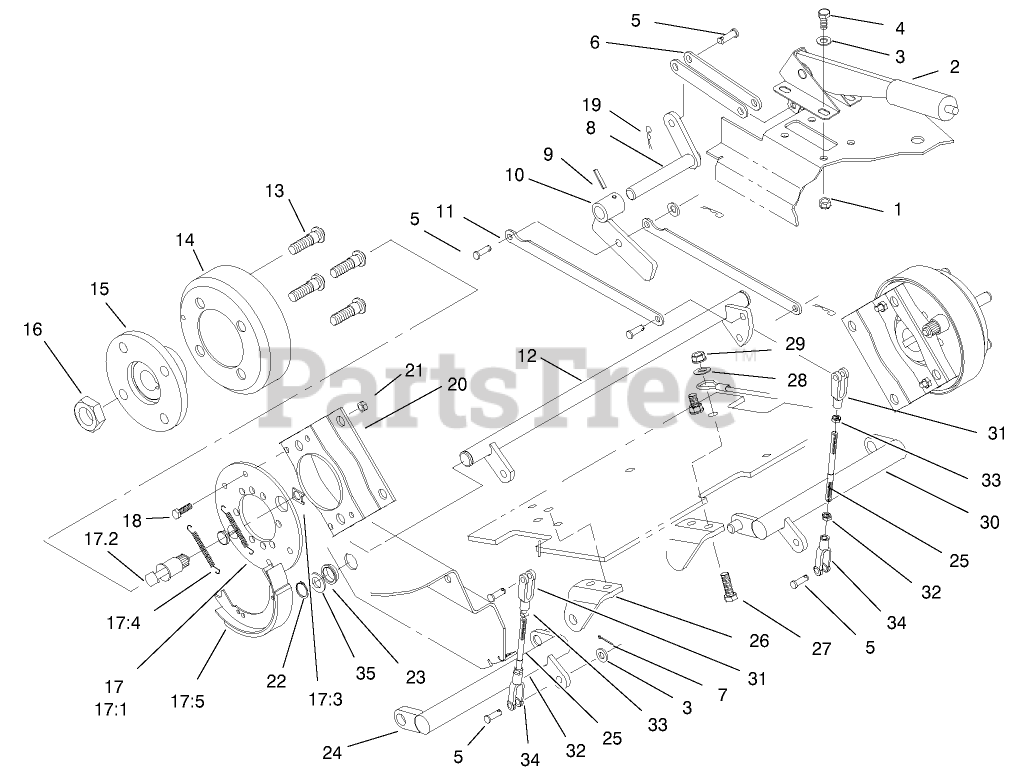

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 94-4602

LEVER-BRAKE

$

$

Not available

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

5

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

6

Toro 98-1992

LINK-BRAKE

$

$

Not available

7

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

8

Toro 98-1990

TRANSFER SHAFT ASM

$

$

Not available

9

Toro 32121-93

PIN-SPIRAL

$

$

Not available

10

Toro 98-1994

BRAKE HUB ASM

$

$

Not available

11

Toro 98-1991

LINK - CONNECT

$32.99

$

Usually ships in 3-6 days

0

12

Toro 98-1988

TORSION SHAFT ASM

$

$

Not available

13

Toro 85-6540

STUD-DRIVE

$9.49

$

In Stock, only 1 left!

0

14

Toro 10-6850

DRUM-BRAKE

$65.99

$

In Stock, only 1 left!

0

15

Toro 10-6870

Hub-Wheel
(Superseded to 10-6870-03)

$159.99

$

Usually ships in 3-6 days

0

16

Toro 26-3790

NUT-LOCK

$29.99

$

Usually ships in 3-6 days

0

17

Toro 71-1500

BrakeASM
(Superseded to 104-7705)

$212.99

$

Usually ships in 3-6 days

0

17:1

Toro 70-9870

PLATE-BACKING

$221.99

$

Usually ships in 3-6 days

0

17:2

Toro 70-9860

Cam Shaft
(Superseded to 104-7708)

$51.99

$

Usually ships in 3-6 days

0

17:4

Toro 70-9880

SPRING-RETURN

$12.99

$

Usually ships in 3-6 days

0

17:5

Toro 70-9840

SHOE-BRAKE

$72.99

$

In Stock, only 1 left!

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

20

Toro 84-2000

Bracket-Brake
(Superseded to 84-2000-03)

$

$

Not available

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

22

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

23

Toro 106950

BUSHING

$15.99

$

Usually ships in 3-6 days

0

24

Toro 98-1998

RH BRAKE LEVER ASM

$

$

Not available

25

Toro 98-1996

ROD-BRAKE

$

$

Not available

26

Toro 94-9573-01

MOUNT-LEVER, BRAKE, RH

$

$

Not available

27

Toro 323-18

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

30

Toro 98-1997

LH BRAKE LEVER ASM

$

$

Not available

31

Toro 282-2

YOKE

$31.99

$

Usually ships in 3-6 days

0

32

Toro 3220-20

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0

33

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

34

Toro 98-4367

CLEVIS-ADJUSTABLE

$

$

Not available

35

Toro 9202547

Washer

$

$

Currently unavailable
