74191 (Z 320) - Toro 122cm Z Master Zero-Turn Mower with Bagger (SN: 089500001 - 089999999) (1998) HEAT SHIELD AND EXHAUST ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower with Bagger

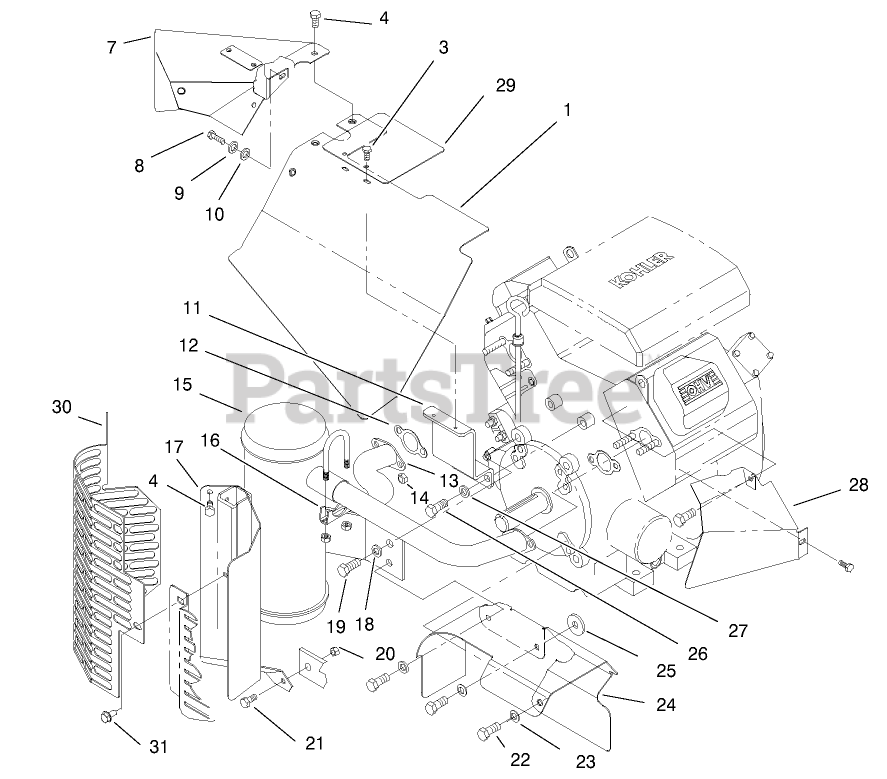

HEAT SHIELD AND EXHAUST ASSEMBLY Parts Diagram

  • Title

1

Toro 98-1967

TOP HEAT BAFFLE ASM

$157.99

$

Usually ships in 3-6 days

0

3

Toro 98-4386

SCREW-TORX

$

$

Not available

4

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

7

Toro 98-4368

REAR HEAT BAFFLE ASM

$

$

Not available

8

Toro 42-9430

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

9

Toro 48-8020

WASHER-SPRING

$1.49

$

Usually ships in 3-6 days

0

10

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

11

Toro 94-9561-03

Bracket-Manifold Shield

$

$

Currently unavailable

12

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

13

Toro 94-9494

MANIFOLD

$337.99

$

Usually ships in 3-6 days

0

14

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

15

Toro 94-9495

MUFFLER

$565.99

$

Usually ships in 3-6 days

0

16

Toro 2112-11

CLAMP-MUFFLER

$7.99

$

In Stock, only 2 left!

0

17

Toro 98-1329

BAFFLE-HEAT, MIDDLE

$

$

Not available

18

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 324-4

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

20

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

23

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 98-1326

BAFFLE-HEAT, LOWER

$

$

Not available

25

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

26

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

27

Toro 42-9850

WASHER-LOCK, SPRING
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

28

Toro 98-1349

BAFFLE-HEAT, FRONT

$

$

Not available

29

Toro 98-1979

PANEL-ACCESS, BAFFLE

$

$

Not available

30

Toro 98-1980-03

GUARD - MUFFLER

$

$

Not available

31

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0
