74191 (Z 320) - Toro 122cm Z Master Zero-Turn Mower with Bagger (SN: 089500001 - 089999999) (1998) GRASS BIN AND CHUTE ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower with Bagger

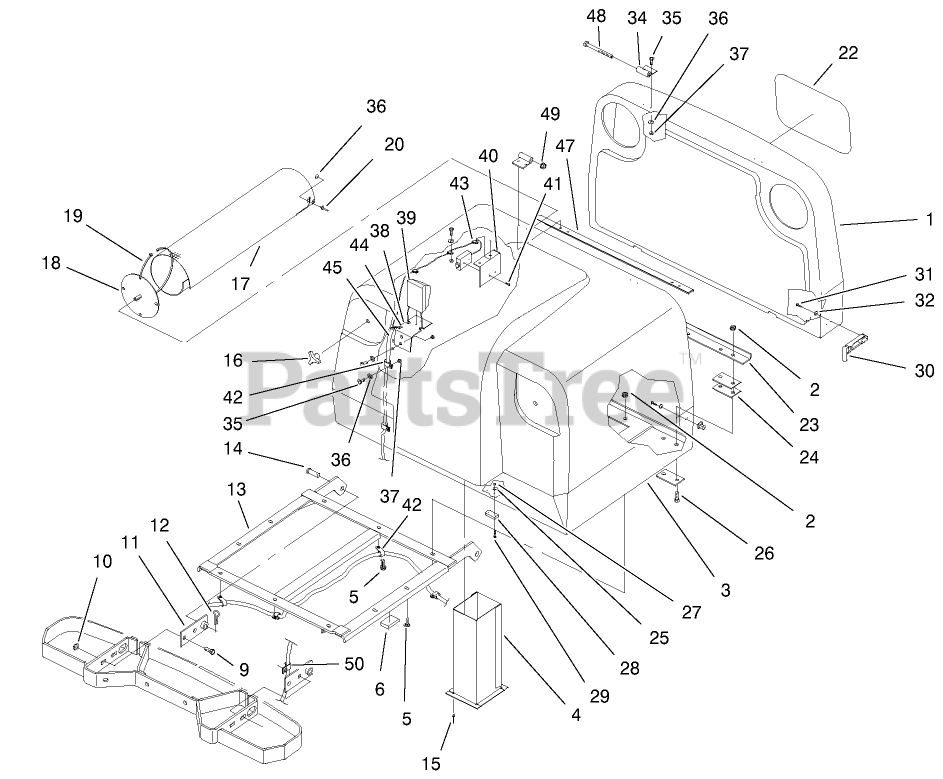

GRASS BIN AND CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 95-6423

COVER-BIN

$781.99

$

Usually ships in 3-6 days

0

2

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

3

Toro 95-6422

BIN - GRASS

$

$

Not available

4

Toro 95-6482

Chute ASM
(Superseded to 95-6482-03)

$

$

Not available

5

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

6

Toro 98-3031

CUSHION

$

$

Not available

9

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

11

Toro 95-6431

Pivot ASM
(Superseded to 95-6431-03)

$

$

Not available

12

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

13

Toro 95-6418

FrameASM
(Superseded to 95-6418-03)

$

$

Not available

14

Toro 283-68

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

15

Toro 98-7310

RIVET

$4.99

$

Usually ships in 3-6 days

0

16

$

$

Not available

17

Toro 95-6441

SCREEN

$72.99

$

Usually ships in 3-6 days

0

18

Toro 95-6444

Plate ASM
(Superseded to 95-6444-03)

$41.99

$

Usually ships in 3-6 days

0

19

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

20

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

22

Toro 67-7310

DECAL

$64.99

$

Usually ships in 3-6 days

0

23

Toro 98-0849

Flange-Bin
(Superseded to 98-0849-03)

$

$

Not available

24

Toro 98-3004

SPACER

$

$

Not available

25

Toro 3256-12

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

26

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

27

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

28

Toro 98-3006

ACTUATOR

$

$

Not available

29

Toro 3290-124

SCREW-HH

$

$

Not available

30

Toro 94-5626

FLEXIBLE DRAW LATCH ASM

$51.99

$

Usually ships in 3-6 days

0

31

Toro 3290-359

SCREW-HWH

$

$

Not available

32

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

34

Toro 98-3027

Hinge
(Superseded to 98-3027-03)

$

$

Not available

35

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

38

Toro 98-3000

Bracket-Receiver
(Superseded to 98-3000-03)

$

$

Not available

39

Toro 98-2367

MODULE-DETECT,

$

$

Not available

40

Toro 98-3001

Bracket-Emitter
(Superseded to 98-3001-03)

$

$

Not available

41

Toro 3250-19

SCREW-PPH

$2.49

$

In Stock, only 3 left!

0

42

Toro 2412-93

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

43

Toro 2412-127

CLAMP-R

$

$

Not available

44

Toro 3290-381

TIE-CABLE

$1.49

$

In Stock, Qty 7

0

45

Toro 98-3009

CONDUIT-CONVOLUTED

$

$

Not available

47

Toro 98-3036

Angle-Bin
(Superseded to 98-3036-03)

$

$

Not available

48

Toro 3274-102

SCREW-HSH

$

$

Not available

49

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

50

Toro 2412-138

R-CLAMP

$1.99

$

Usually ships in 3-6 days

0
