74191 (Z 320) - Toro 122cm Z Master Zero-Turn Mower with Bagger (SN: 089500001 - 089999999) (1998) GEAR BOX AND COVER ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower with Bagger

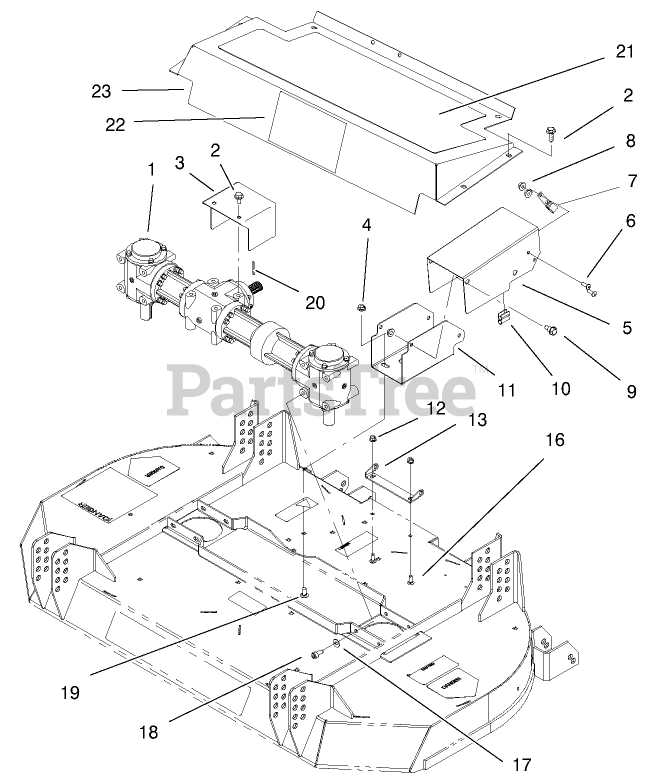

GEAR BOX AND COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 99-0282

Gearbox
(Superseded to 105-6172)

$3861.99

$

Usually ships in 3-6 days

0

2

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

3

Toro 100-5810-01

COVER - GEARBOX

$

$

Not available

4

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

5

Toro 99-0253-01

COVER - DRIVSHAFT

$84.99

$

Usually ships in 3-6 days

0

6

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

7

Toro 99-0270

CLIP - CABLE

$

$

Not available

8

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

9

Toro 92-6986

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

10

Toro 98-0815

STRIP - SEAL

$

$

Not available

11

Toro 99-0254-01

SUPPORT - COVER

$

$

Not available

12

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

13

Toro 99-0252

BRACKET - HINGE

$

$

Not available

16

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

17

Toro 100-2400

WASHER

$3.99

$

Usually ships in 3-6 days

0

18

Toro 100-2401

SCREW-HSH

$3.49

$

Usually ships in 3-6 days

0

19

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 32121-48

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

21

Toro 95-4342

ABRASIVE - FOOTREST

$

$

Not available

22

Toro 62-5550

DECAL

$10.99

$

In Stock, only 2 left!

0

23

Toro 95-4322

Footrest
(Superseded to 98-8073)

$

$

Not available
