74191 (Z 320) - Toro 122cm Z Master Zero-Turn Mower with Bagger (SN: 089500001 - 089999999) (1998) ENGINE & FUEL TANK ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower with Bagger

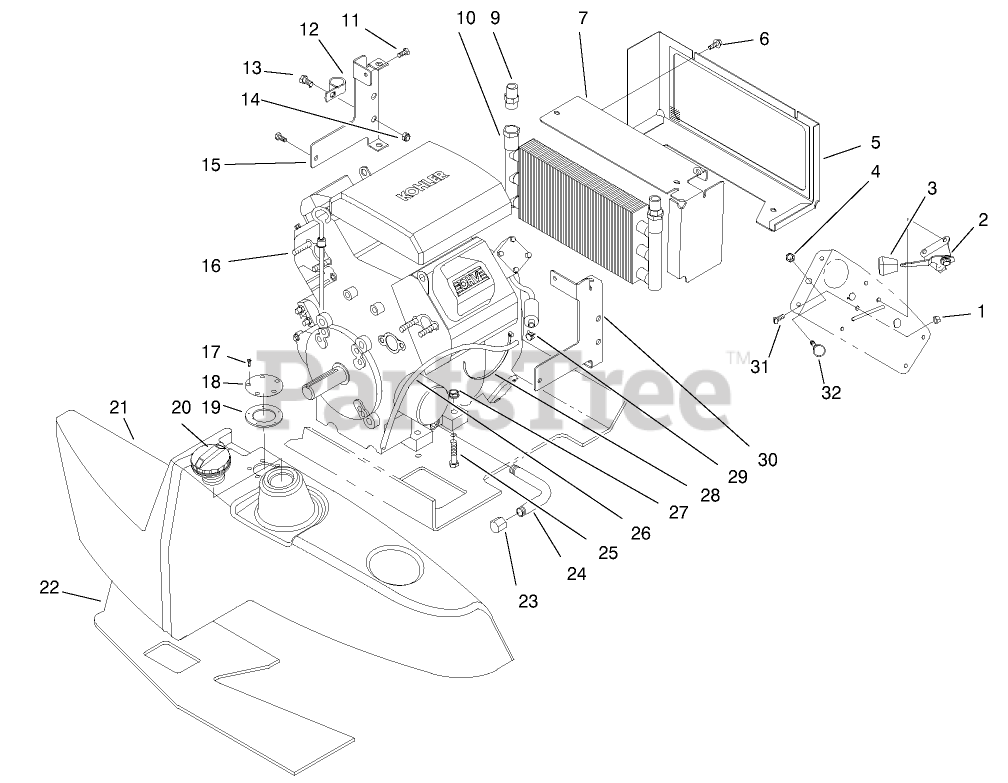

ENGINE & FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 98-4350

THROTTLE CONTROL ASM

$

$

Not available

3

$5.99

$

In Stock, only 2 left!

0

4

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

5

Toro 94-9556-03

COOLER SHROUD ASM

$

$

Not available

6

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

7

Toro 98-1969-03

Cooler Shroud ASM
(Superseded to 98-1969)

$

$

Not available

9

Toro 93-5107

FITTING-ADAPTER

$25.99

$

Usually ships in 3-6 days

0

10

Toro 24-0760

COOLER ASM

$

$

Not available

11

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 6

0

12

Toro 2412-39

CLAMP-R

$10.99

$

Usually ships in 3-6 days

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 98-1972-03

Bracket-Rear
(Superseded to 98-1972)

$

$

Not available

16

Engine Kohler CH20S 64582

$

$

Not available

17

Toro 3250-29

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

18

Toro 94-9597-03

COVER-FUEL TANK OPENING
(Superseded to 94-9597)

$

$

Not available

19

Toro 62-7650

GASKET

$4.49

$

Usually ships in 3-6 days

0

20

Toro 93-3101

CAP-FUEL
(Superseded to 115-5304)

$32.99

$

In Stock, only 1 left!

0

21

Toro 94-9553

FUEL TANK ASM
(Superseded to 107-1871)

$

$

Not available

22

Toro 98-1319

FOAM-TANK, FUEL

$

$

Not available

23

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

24

Toro 94-9499

TUBE-DRAIN, OIL

$

$

Not available

25

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 94-9502

HOSE - GAS
(Superseded to 110-5706)

$9.99

$

Usually ships in 3-6 days

0

27

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

28

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

29

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

30

Toro 98-1971-03

Bracket-Front
(Superseded to 98-1971)

$140.99

$

Usually ships in 3-6 days

0

31

Toro 3250-13

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

32

Toro 98-1956

CONTROL-CHOKE

$64.99

$

Usually ships in 3-6 days

0
