74191 (Z 320) - Toro 122cm Z Master Zero-Turn Mower with Bagger (SN: 089000160 - 089500000) (1998) FRAME & WHEELS Parts Diagram

122cm Z Master Zero-Turn Mower with Bagger

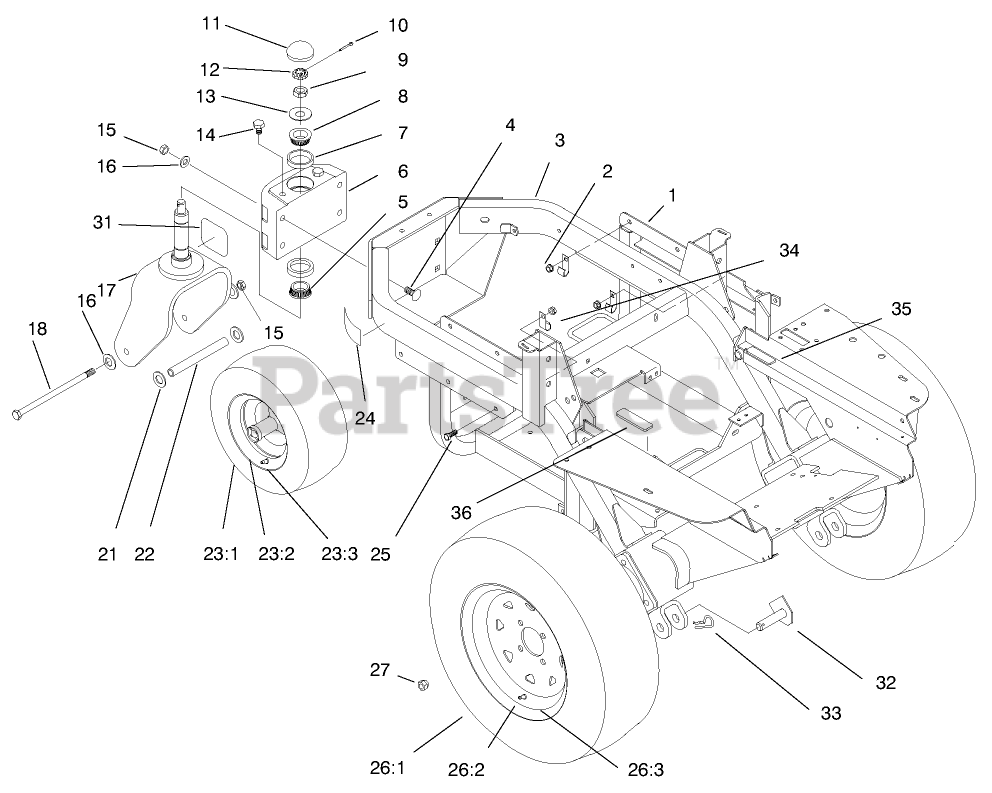

FRAME & WHEELS Parts Diagram

  • Title

1

Toro 94-4618-03

ENGINE SUPPORT ASM

$1065.99

$

Usually ships in 3-6 days

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 98-1976

FRAME ASM W/ DECALS, CE

$5035.99

$

Usually ships in 3-6 days

0

4

Toro 3233-27

SCREW-CARR

$13.99

$

Usually ships in 3-6 days

0

5

Toro 254-70

BEARING-CONE
(Superseded to 115-9472)

$28.99

$

Usually ships in 3-6 days

0

6

Toro 94-9489-01

HOUSING - SPINDLE

$976.99

$

Usually ships in 3-6 days

0

7

Toro 254-61

CUP-BEARING, ROLLER
(Superseded to 115-9471)

$8.49

$

Usually ships in 3-6 days

0

8

Toro 254-62

BEARING-ROLLER, CONE

$13.99

$

Usually ships in 3-6 days

0

9

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 20+

0

10

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

11

Toro 94-4665

DUSTCAP

$

$

Not available

12

Toro 93-0307

NUT-LOCK, RETAINER

$4.49

$

Usually ships in 3-6 days

0

13

Toro 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 15

0

14

Toro 325-2

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

15

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 94-4647-01

CASTER FORK ASM

$

$

Not available

18

Toro 325-24

SCREW-HH

$15.99

$

In Stock, only 2 left!

0

19

Toro 98-4383

DECAL - PATENT NUMBERS, OFZ

$

$

Not available

20

Toro 63-9920

DECAL-LEVEL, NOISE

$

$

Not available

21

Toro 3256-39

WASHER-FLAT

$1.49

$

In Stock, only 3 left!

0

22

Toro 94-4753

TUBE-SPACER, CASTOR

$48.99

$

Usually ships in 3-6 days

0

23:1

Toro 94-9384

TIRE

$

$

Not available

23:2

Toro 98-4351

WHEEL ASM

$

$

Not available

23:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 9

0

24

Toro 93-1265

DECAL-SURFACE, HOT

$8.49

$

Usually ships in 3-6 days

0

25

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26:1

Toro 94-9387

TIRE
(Superseded to 117-0823)

$187.99

$

Usually ships in 3-6 days

0

26:2

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 9

0

26:3

Toro 94-9386

WHEEL

$

$

Not available

27

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 3 left!

0

30

Toro 98-4372

Decal-90 Lpa

$

$

Currently unavailable

31

Toro 95-1956

DECAL - Z320

$

$

Not available

32

Toro 94-4755

PIVOT PIN ASM

$

$

Not available

33

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, Qty 7

0

34

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

35

Toro 52-5260

PAD-RUBBER

$18.99

$

Usually ships in 3-6 days

0

36

Toro 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0
