74191 (Z 320) - Toro 122cm Z Master Zero-Turn Mower with Bagger (SN: 089000160 - 089500000) (1998) CARRIER FRAME Parts Diagram

122cm Z Master Zero-Turn Mower with Bagger

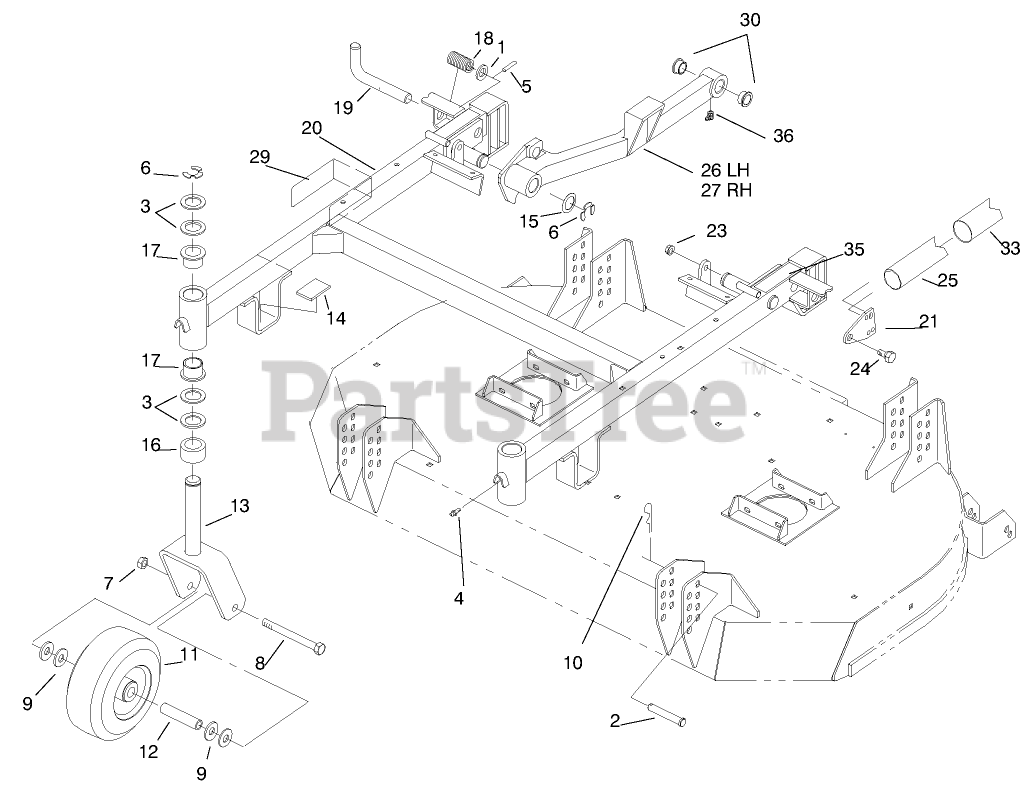

CARRIER FRAME Parts Diagram

  • Title
1

Toro 920225

Washer
(Superseded to 9202254)

$3.99

$

In Stock, only 2 left!

0

2

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

3

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5

Toro 32121-79

PIN-ROLL

$13.99

$

Usually ships in 3-6 days

0

6

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

7

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

8

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

9

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

11

Toro 98-2859

CASTOR WHEEL ASM

$143.99

$

Usually ships in 3-6 days

0

12

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 12

0

13

Toro 98-2857

Castor Fork
(Superseded to 98-2857-01)

$

$

Not available

14

Toro 95-4303

CUSHION - RUBBER

$

$

Not available

15

Toro 9202514

Washer
(Superseded to 920251)

$3.49

$

In Stock, only 2 left!

0

16

Toro 93-1167

SPACER-CASTOR

$36.99

$

Usually ships in 3-6 days

0

17

Toro 94-1291

BUSHING

$11.99

$

In Stock, Qty 10

0

18

Toro 98-1339

SPRING-COMPRESSION

$

$

Not available

19

Toro 98-1337

PIN - PIVOT

$

$

Not available

20

Toro 95-4304

Frame-Carrier
(Superseded to 98-8074)

$2901.99

$

Usually ships in 3-6 days

0

21

Toro 94-4750

PLATE-END, SPRING

$

$

Not available

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

24

Toro 46-3380

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

25

Toro 94-4664

SPRING-EXTENSION

$

$

Not available

26

Toro 17-8379

LH PUSH ARM / BUSHING
(Superseded to 105-1645)

$

$

Not available

27

Toro 17-8389

RH PUSH ARM / BUSHING
(Superseded to 105-1646)

$

$

Not available

29

Toro 98-4362

DECAL - HOC CE-OBS

$

$

Not available

30

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

33

Toro 94-9550

COVER-SPRING

$

$

Not available

35

Toro 55-4300

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

36

Toro 302-60

FITTING-GREASE

$2.99

$

Usually ships in 3-6 days

0
