74191 (Z 320) - Toro 122cm Z Master Zero-Turn Mower with Bagger (SN: 089000001 - 089000159) (1998) GEAR BOX AND COVERS Parts Diagram

122cm Z Master Zero-Turn Mower with Bagger

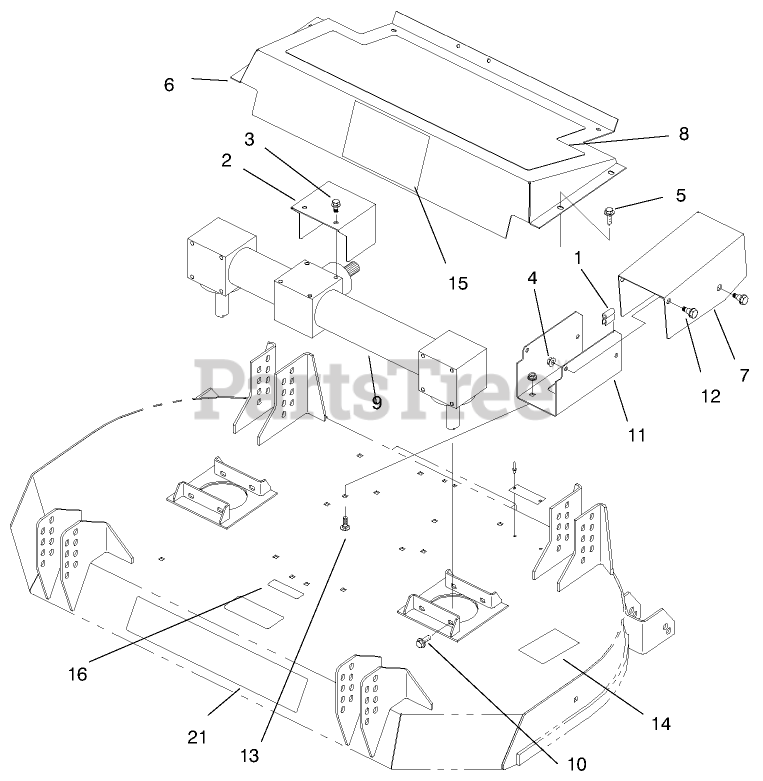

GEAR BOX AND COVERS Parts Diagram

  • Title
1

Toro 98-0815

STRIP - SEAL

$

$

Not available

2

Toro 98-7314

Cover-Gearbox
(Superseded to 98-7314-03)

$

$

Not available

3

Toro 3234-28

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

4

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

5

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

6

Toro 95-4322

Footrest
(Superseded to 98-8073)

$

$

Not available

7

Toro 98-7305

Cover-Driveshaft
(Superseded to 98-7305-01)

$

$

Not available

8

Toro 95-4342

ABRASIVE - FOOTREST

$

$

Not available

9

Toro 93-4448

Gearbox ASM
(Superseded to 105-6172)

$3748.99

$

Usually ships in 3-6 days

0

10

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 16

0

11

Toro 98-7306

SUPPORT - COVER R

$

$

Not available

12

Toro 92-6986

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

13

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 98-4363

DECAL-TORQUE, BLADE BOLT
(Superseded to 98-4385)

$

$

Not available

15

Toro 62-5550

DECAL

$10.99

$

In Stock, only 2 left!

0

16

Toro 93-6697

DECAL-LUBE

$15.99

$

Usually ships in 3-6 days

0

21

Toro 94-6407

DECAL - GUARDIAN 48"

$

$

Not available
