74191 (Z 320) - Toro 122cm Z Master Zero-Turn Mower with Bagger (SN: 089000001 - 089000159) (1998) DECK ASM AND BLADES Parts Diagram

122cm Z Master Zero-Turn Mower with Bagger

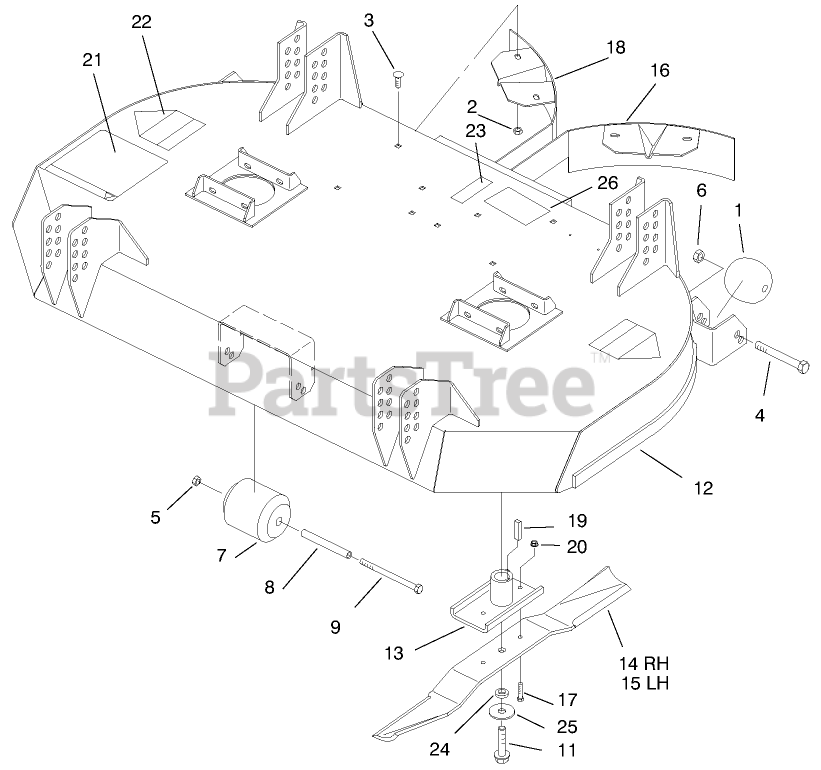

DECK ASM AND BLADES Parts Diagram

  • Title

1

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

2

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

3

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Toro 325-17

SCREW-HH

$5.99

$

In Stock, only 4 left!

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 3296-25

NUT-LOCK, NI

$1.99

$

In Stock, only 2 left!

0

7

Toro 93-4803

ROLLER-DECK

$44.99

$

Usually ships in 3-6 days

0

8

Toro 93-4685

SPACER

$13.99

$

Usually ships in 3-6 days

0

9

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

11

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, only 2 left!

0

12

Toro 95-4308

48" DeckASM
(Superseded to 100-4562)

$3349.99

$

Usually ships in 3-6 days

0

13

Toro 98-0810

Blade Retainer
(Superseded to 98-0810-01)

$

$

Not available

14

Toro 98-3028

Blade-25" LH
(Superseded to 98-3028-03)

$60.99

$

Usually ships in 3-6 days

0

15

Toro 98-3029

Blade-25" RH
(Superseded to 98-3029-03)

$60.99

$

Usually ships in 3-6 days

0

16

Toro 98-3017

Kicker-LH
(Superseded to 98-3017-01)

$

$

Not available

17

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 98-3018

Kicker-RH
(Superseded to 98-3018-01)

$

$

Not available

19

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 11

0

20

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

21

Toro 98-4358

DECAL-DANGER

$

$

Not available

22

Toro 98-4369

DECAL-WARNING

$

$

Not available

23

Toro 98-4385

DECAL - DANGER

$

$

Not available

24

Toro 98-3030

Spacer
(Superseded to 99-0284)

$

$

Not available

25

Toro 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 4 left!

0

26

Toro 93-7010

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0
