74189 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000501 - 200999999) (2000) PTO AND HYDRO DRIVE ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

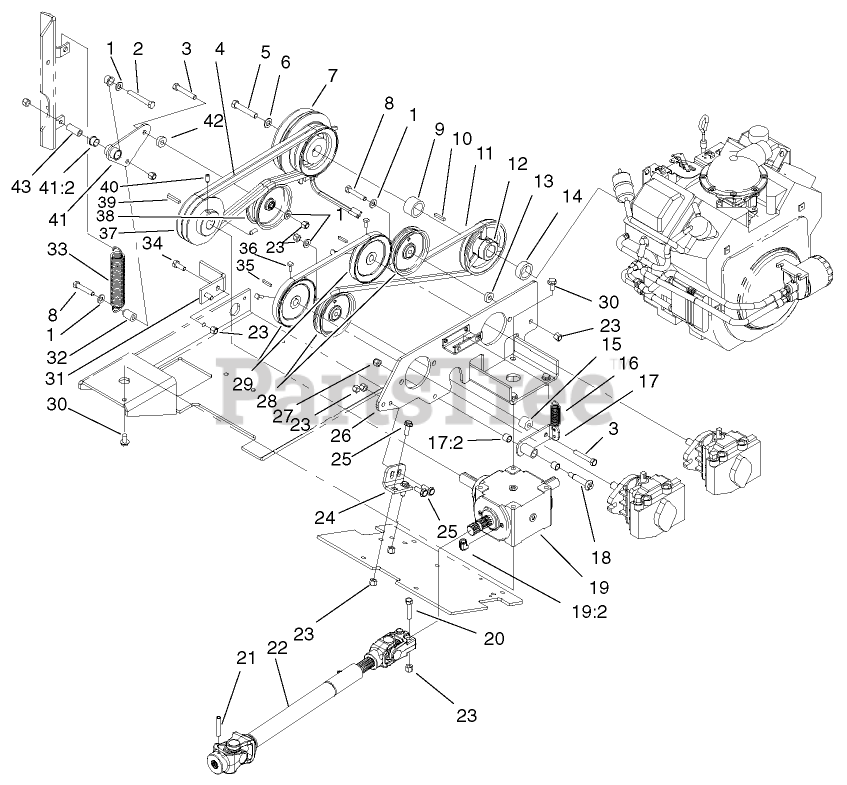

PTO AND HYDRO DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

3

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

4

Toro 94-4608

BELT - PTO (SET)

$54.99

$

In Stock, only 1 left!

0

5

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, Qty 10

0

6

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 94-4632

Clutch ASM
(Superseded to 105-1671)

$418.99

$

Usually ships in 3-6 days

0

8

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 94-4689

SPACER-SHAFT, ENGINE

$

$

Not available

10

Toro 5-0698

KEY

$2.99

$

In Stock, only 1 left!

0

11

Toro 94-4607

V-BELT

$73.99

$

In Stock, only 1 left!

0

12

Toro 94-4628

PULLEY-ENGINE

$

$

Not available

13

Toro 9202204

Washer
(Superseded to 920220)

$3.99

$

Usually ships in 3-6 days

0

14

Toro 94-4688

SPACER-SHAFT, ENGINE

$

$

Not available

15

Toro 94-4792

SPACER-ARM, IDLER

$

$

Not available

16

Toro 94-9599

SPRING-EXTENSION

$25.99

$

Usually ships in 3-6 days

0

17

Toro 95-1950

IDLER ARM ASM

$

$

Not available

17:2

Toro 256-154

BUSHING

$

$

Not available

18

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 2 left!

0

19

Toro 104-2433

GEARBOX ASM

$3162.99

$

Usually ships in 3-6 days

0

19:2

Toro 2811-7

ELBOW

$42.99

$

Usually ships in 3-6 days

0

19:1

Gearbox-PTO

$

$

Not available

20

Toro 323-19

SCREW-HH

$1.99

$

In Stock, Qty 11

0

21

Toro 32121-48

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

22

Toro 94-4722

SHAFT-DRIVE

$

$

Not available

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 94-4787-03

MOUNT-PLATE, PUMP

$

$

Not available

25

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

26

Toro 94-4658-03

PUMP MOUNT ASM

$451.99

$

Usually ships in 3-6 days

0

27

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

28

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, Qty 20+

0

29

Toro 80-8170

PULLEY-PUMP, TRACTION

$104.99

$

Usually ships in 3-6 days

0

30

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

31

Toro 98-1301-03

STOP-CLUTCH

$

$

Not available

32

Toro 95-1967

SPACER - SPRING

$

$

Not available

33

Toro 88-6460

SPRING-EXTENSION

$55.99

$

Usually ships in 3-6 days

0

34

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

35

Toro 80-6090

KEY-PUMP

$9.99

$

In Stock, only 1 left!

0

36

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

37

Toro 94-4629

PULLEY-CLUTCH

$416.99

$

Usually ships in 3-6 days

0

38

Toro 66-4210

PULLEY-IDLER

$58.99

$

Usually ships in 3-6 days

0

39

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 9

0

40

Toro 3246-6

SCREW-SET, HSH

$7.99

$

In Stock, only 1 left!

0

41

Toro 95-1968

IDLER ARM ASM

$

$

Not available

41:2

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

42

Toro 94-4685

SPACER-IDLER

$

$

Not available

43

Toro 114511

SPACER

$73.99

$

Usually ships in 3-6 days

0
