74189 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000501 - 200999999) (2000) ENGINE AND FUEL ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

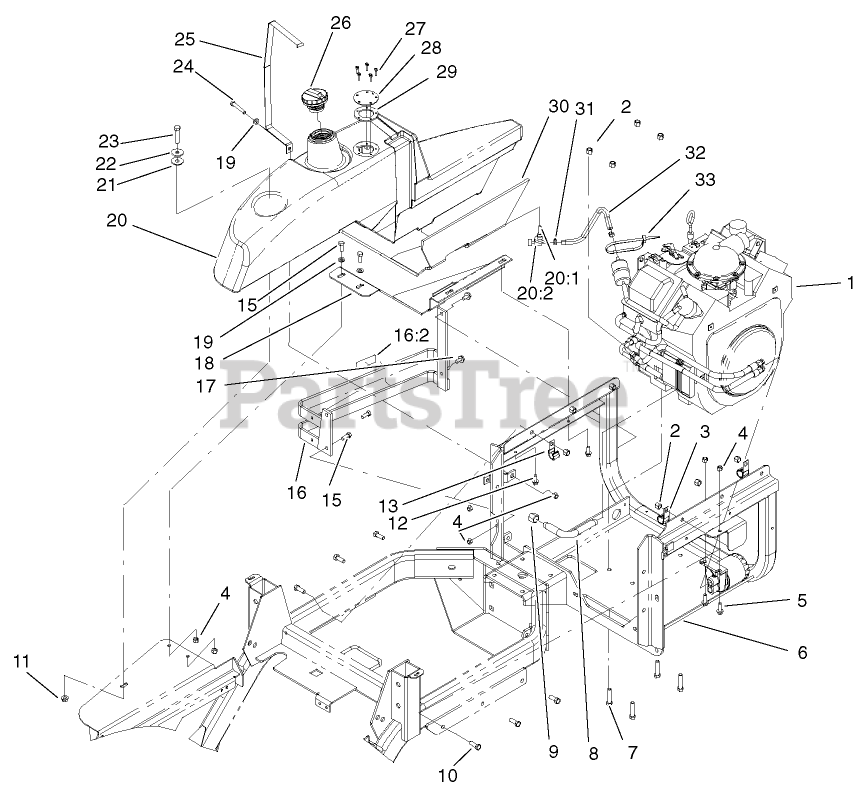

ENGINE AND FUEL ASSEMBLY Parts Diagram

  • Title
1

Engine-Kohler, Ch25s Ps-68656

$

$

Not available

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

3

Toro 94-9580

CLAMP-J

$

$

Not available

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

6

Toro 94-4618-03

ENGINE SUPPORT ASM

$1015.99

$

Usually ships in 3-6 days

0

7

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 94-9499

TUBE-DRAIN, OIL

$

$

Not available

9

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

10

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

13

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

15

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 98-1995

BUMPER ASM

$230.99

$

Usually ships in 3-6 days

0

16:2

Toro 93-9198

DECAL-HOT SURFACE

$

$

Not available

17

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

18

Toro 94-4798-01

PLATE-SUPPORT, TANK

$

$

Not available

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 94-9553

FUEL TANK ASM
(Superseded to 107-1871)

$

$

Not available

20:1

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

20:2

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

21

Toro 240-11

BUSHING-FLANGE

$6.49

$

Usually ships in 3-6 days

0

22

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

23

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

25

Toro 94-4799-03

STRAP-TANK, FUEL

$

$

Not available

26

Toro 93-3101

CAP-FUEL
(Superseded to 115-5304)

$32.99

$

In Stock, only 1 left!

0

27

Toro 3250-29

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

28

Toro 94-9597

COVER-OPENING, FUEL TANK

$

$

Not available

29

Toro 62-7650

GASKET

$4.49

$

Usually ships in 3-6 days

0

30

Toro 98-1319

FOAM-TANK, FUEL

$

$

Not available

31

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

32

Toro 98-0976

HOSE-FUEL
(Superseded to 109-0299)

$13.99

$

Usually ships in 3-6 days

0

33

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
