74189 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000501 - 200999999) (2000) AIR CLEANER AND BAGGER FRAME ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

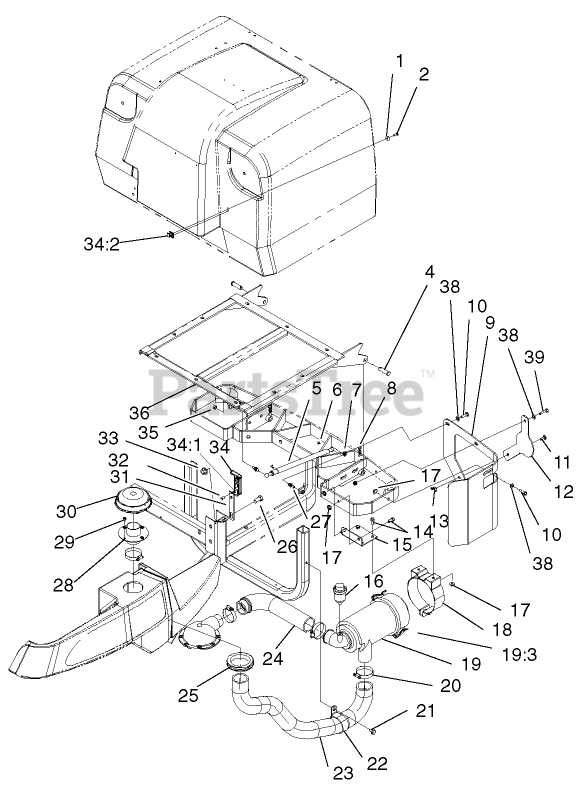

AIR CLEANER AND BAGGER FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

2

$0.99

$

In Stock, Qty 10

0

4

Toro 283-40

PIN-CLEVIS

$15.99

$

Usually ships in 3-6 days

0

5

Toro 98-3043

SPRING-GAS

$353.99

$

Usually ships in 3-6 days

0

6

Toro 98-3044

CLIP-SAFETY

$

$

Not available

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

9

Toro 104-0355-03

GUARD-FILTER, AIR

$

$

Not available

10

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Toro 104-0364-03

PLATE-COVER

$

$

Not available

13

Toro 32103-29

NUT-WING

$5.99

$

In Stock, Qty 5

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

15

$

$

Not available

16

Filter Minder

Note: Obtain locally.

$

$

Not available

17

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

18

Bracket-A/C

Note: Obtain locally.

$

$

Not available

19

Air Cleaner

Note: Obtain locally.

$

$

Not available

19:3

Toro 99-3174

CLIP-CLEANER, AIR

$17.99

$

In Stock, Qty 11

0

19:1

Toro 100-4557

FILTER-SAFETY
(Superseded to 103-1326)

Note: Not illustrated

$41.99

$

In Stock, only 2 left!

0

19:2

Toro 100-4556

ELEMENT

Note: Not illustrated

$51.99

$

Usually ships in 3-6 days

0

19:4

Toro 99-3175

VALVE-EJECTOR, DUST

Note: Not illustrated

$36.99

$

Usually ships in 3-6 days

0

20

Toro 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

21

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

22

Toro 2412-102

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

23

$

$

Not available

24

$

$

Not available

25

Toro 240-8

GROMMET-RUBBER

$59.99

$

Usually ships in 3-6 days

0

26

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

27

Toro 88-6770

STUD-BALL

$5.99

$

In Stock, only 1 left!

0

28

Toro 100-2411-03

FLANGED CONNECTOR ASM

$

$

Not available

29

$0.99

$

Usually ships in 3-6 days

0

30

Hood

Note: Obtain locally.

$

$

Not available

31

Toro 98-3032

Bracket-Latch
(Superseded to 98-3032-03)

$

$

Not available

32

Toro 3290-359

SCREW-HWH

$

$

Not available

33

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

34

Toro 94-5626

FLEXIBLE DRAW LATCH ASM

$51.99

$

Usually ships in 3-6 days

0

34:1

Toro 100-5806

HANDLE-LATCH
(Superseded to 103-4080)

$31.99

$

In Stock, Qty 5

0

34:2

Toro 100-5807

KEEPER-LATCH
(Superseded to 103-4081)

$14.99

$

Usually ships in 3-6 days

0

35

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

36

Toro 104-2432-03

GRASS BIN FRAME ASM

$

$

Not available

38

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

39

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0
