74189 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000001 - 200000500) (2000) SEAT ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

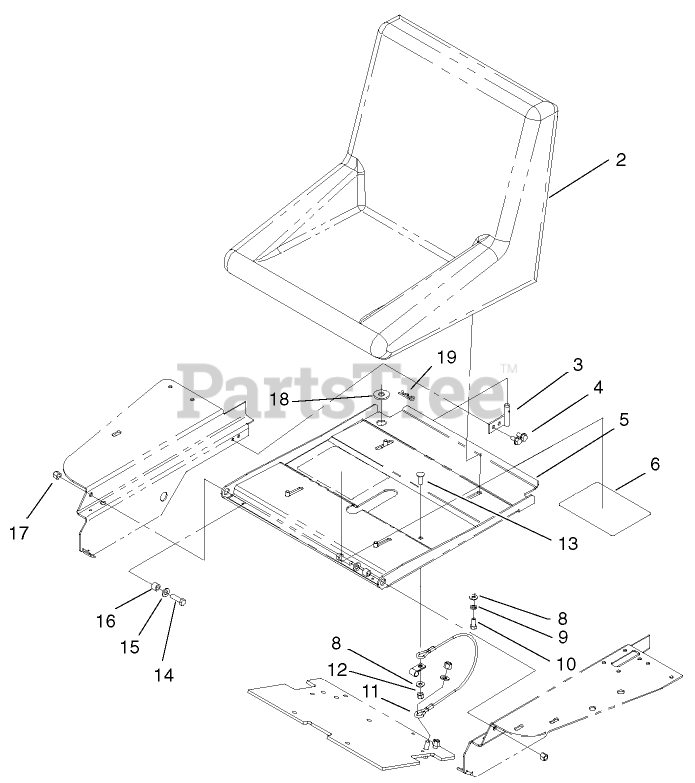

SEAT ASSEMBLY Parts Diagram

  • Title

2

Toro 92-6280

SEAT ASM
(Superseded to 104-4620)

$

$

Not available

3

Toro 98-1985

LATCH ASM

$

$

Not available

4

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

5

Toro 94-9529-01

SEAT PLATE ASM

$

$

Not available

6

Toro 104-0390

DECAL-INSTRUCTIONAL

$

$

Not available

8

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 98-4371

CABLE-SEAT

$37.99

$

Usually ships in 3-6 days

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 7

0

14

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, Qty 12

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

19

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0
