74189 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000001 - 200000500) (2000) OIL PAN/LUBRICATION (KOHLER CH25S PS68656) Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

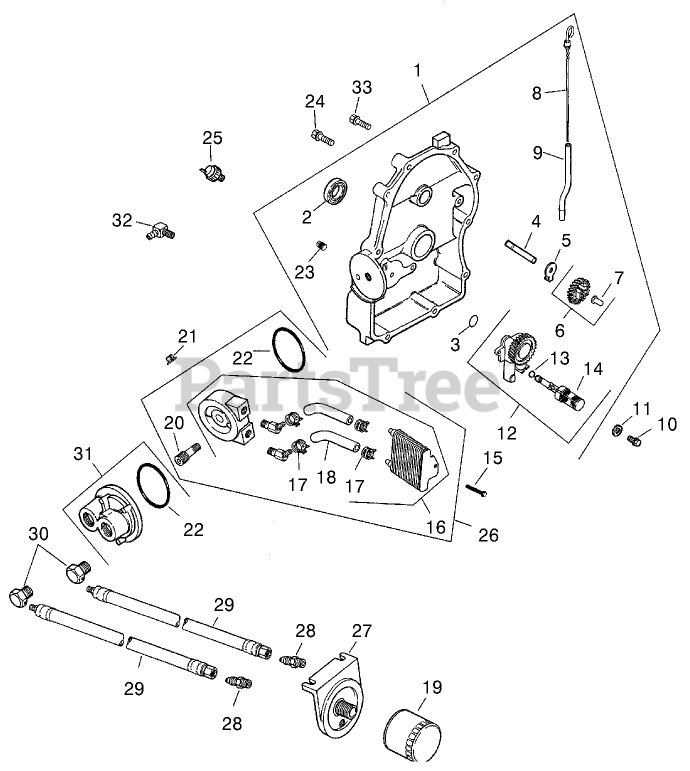

OIL PAN/LUBRICATION (KOHLER CH25S PS68656) Parts Diagram

  • Title

1

Kohler 24 009 82-S

Kit, closure plate (incl. 2-9 & 13, 14 & 23)
(Superseded to 24 009 237-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$609.99

$

In Stock, only 1 left!

0

2

Kohler 52 032 08-S

SEAL-OIL (P-T-O END)
(Superseded to 25 032 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, Qty 20+

0

3

Kohler 24 153 08-S

O-Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, only 1 left!

0

4

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

5

Kohler 52 448 02-S

Tab-Locking
(Superseded to 24 448 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

6

Kohler 24 043 12-S

Kit, governor gear w/pin (Includes 7)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$68.99

$

In Stock, Qty 12

0

7

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 9

0

8

Kohler 24 038 06-S

Dipstick
(Superseded to 24 755 121-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$35.99

$

In Stock, Qty 7

0

9

Kohler 24 123 08-S

Tube-Dipstick
(Superseded to 24 755 121-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$35.99

$

In Stock, Qty 7

0

10

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

11

Kohler M-631005-S

WASHER-FLAT (6 MM)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

12

Kohler 24 393 10-S

Oil pump assembly (Includes 13-14)
(Superseded to 24 393 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

Kohler 24 153 01-S

O-RING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 8

0

14

Kohler 24 381 04-S

TUBE-PICK UP, OIL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$34.99

$

In Stock, only 1 left!

0

15

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

Kohler 24 594 09-S

Cooler, oil (Includes 17,18)
(Superseded to 24 594 28-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$257.99

$

Usually ships in 2-5 days

0

17

Kohler 24 237 03-S

Clamp-Hose
(Superseded to 24 237 10-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 3 left!

0

18

Kohler 24 326 15-S

Hose, oil
(Superseded to 24 326 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

In Stock, only 2 left!

0

19

Kohler 52 050 02-S

Filter-Oil
(Superseded to 52-050-02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$14.99

$

In Stock, Qty 20+

0

20

Toro 24 136 03-S

Nipple, oil filter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

21

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 9

0

22

Kohler 24 153 13-S

O-Ring
(Superseded to 24 153 25-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, only 2 left!

0

23

Kohler X-75-23-S

Plug
(Superseded to 25 139 60-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 2 left!

0

24

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0

25

Kohler 24 099 03-S

SWITCH-PRESSURE, OIL
(Superseded to 24 755 425-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$29.99

$

In Stock, only 1 left!

0

26

Kohler 54 755 21-S

Kit, alum base oil cooler (incl. 16-18, 20 & 22)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$257.99

$

Usually ships in 2-5 days

0

27

Kohler 25 029 01-S

Adapter-Oil Filter, Remote

Note: Call PartsTree Customer Service for more information on Kohler Parts

$123.99

$

Usually ships in 2-5 days

0

28

Kohler 52 136 02-S

Nipple-Metallic

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

Usually ships in 2-5 days

0

29

Kohler 52 326 11-S

Hose, oil (red tracer) (2) 1/8-27 N.P.T.F. male coupling, 1/4-18 N.P.S.M. female coupling x 23in long

Note: Call PartsTree Customer Service for more information on Kohler Parts

$83.99

$

In Stock, only 3 left!

0

30

Kohler 24 294 04-S

Reducer, fitting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

31

Kohler 24 029 02-S

Adapter, oil filter (incl. 22)(2)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$62.99

$

Usually ships in 2-5 days

0

32

Kohler 25 155 02-S

Connector-Hose, 90 Deg

Note: Call PartsTree Customer Service for more information on Kohler Parts

$14.99

$

In Stock, only 1 left!

0

33

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0

Kohler 24 113 25-S

DECAL-COOLER, OIL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 24 113 25-S

DECAL-COOLER, OIL

Note: Not illustrated

$

$

Not available
