74189 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000001 - 200000500) (2000) HYDRAULIC ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

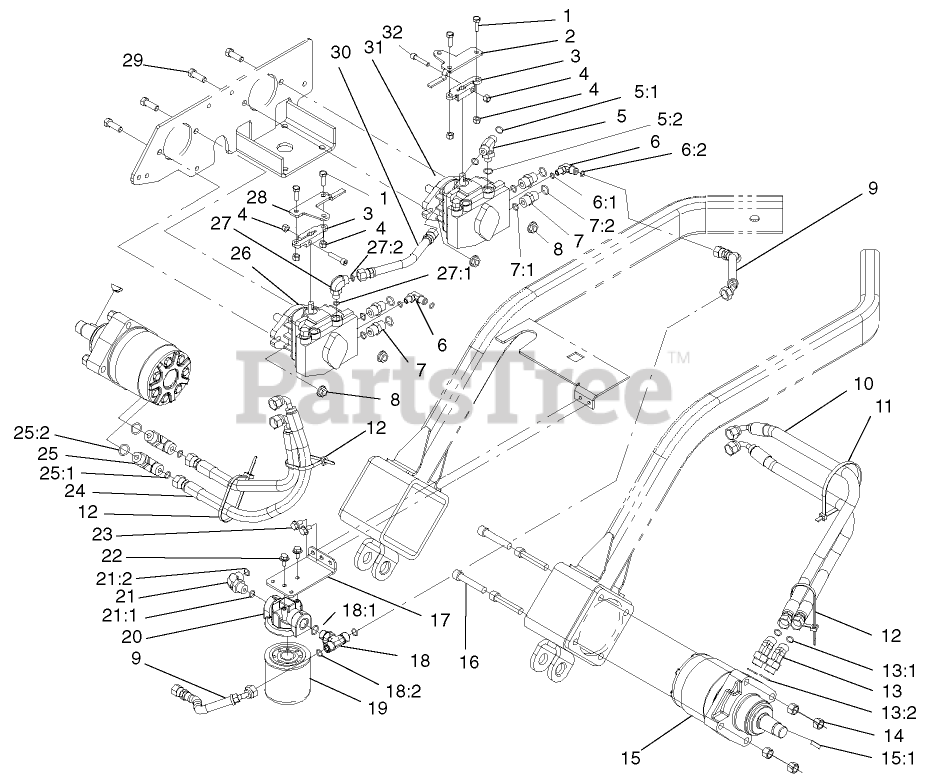

HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 94-4702-03

PLATE-CONTROL, LEFT

$

$

Not available

3

Toro 94-4678

ARM-CONTROL, PUMP

$82.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 340-94

ADAPTER

$52.99

$

Usually ships in 3-6 days

0

6

Toro 340-97

FITTING-ELBOW 90

$45.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

6:2

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

0

7

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

7:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

7:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

8

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

9

Toro 98-4384

HYDRAULIC HOSE ASM

$

$

Not available

10

Toro 94-4714

HOSE-HYDRAULIC

$253.99

$

Usually ships in 3-6 days

0

11

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

12

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

13

Toro 340-89

FITTING-HYD, 45 DEG

$44.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

13:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

14

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 94-4640

MOTOR - HYDRAULIC WHEEL

$3746.99

$

Usually ships in 3-6 days

0

15:1

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 20+

0

16

Toro 3274-93

SCREW-HSH

$4.99

$

Usually ships in 3-6 days

0

17

Toro 94-9525-03

ANGLE-MOUNT, HYD FILTER

$

$

Not available

18

Toro 340-157

FITTING-HYD, TEE

$70.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

18:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

19

Toro 67-8110

CARTRIDGE-FILTER, OIL

$22.99

$

In Stock, Qty 13

0

20

Toro 86-9080

HEAD-FILTER

$130.99

$

In Stock, only 1 left!

0

21

Toro 340-98

FITTING-ELBOW-90 DEG

$33.99

$

In Stock, only 2 left!

0

21:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

21:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

22

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

23

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

24

Toro 94-4705

HYDRAULIC HOSE ASM

$

$

Not available

25

Toro 340-105

FITTING-ELBOW 90

$44.99

$

In Stock, only 1 left!

0

25:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

25:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

26

Toro 98-4375

PUMP - HYDRAULIC

$2551.99

$

Usually ships in 3-6 days

0

27

Toro 340-77

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

27:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

27:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

28

Toro 94-4701-03

PLATE-CONTROL, RIGHT

$

$

Not available

29

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

30

Toro 94-4712

HOSE-HYD

$66.99

$

Usually ships in 3-6 days

0

31

Toro 98-4374

PUMP - HYDRAULIC

$

$

Not available

32

Toro 3274-83

SCREW-HSH

$3.99

$

In Stock, only 2 left!

0
