74189 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000001 - 200000500) (2000) ELECTRICAL ASSEMBLY #2 Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

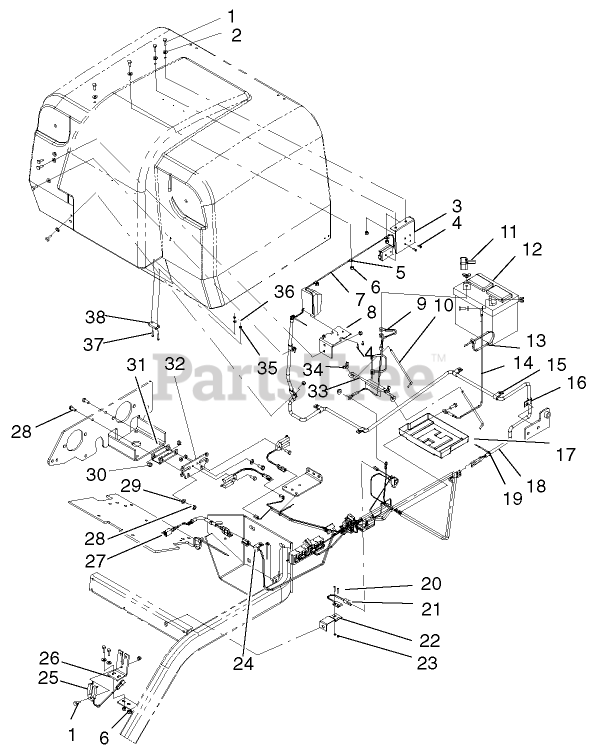

ELECTRICAL ASSEMBLY #2 Parts Diagram

  • Title
1

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 100-2440-03

BRACKET-EMITTER

$

$

Not available

4

Toro 3250-19

SCREW-PPH

$2.49

$

Usually ships in 3-6 days

0

5

Toro 2412-127

CLAMP-R

$

$

Not available

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

7

Toro 98-2367

MODULE-DETECT,

$

$

Not available

8

Toro 98-3000-03

BRACKET-RECEIVER

$

$

Not available

9

Toro 28-3893

WIRE ASM

$

$

Not available

10

Toro 94-6146

RETAINER-BATTERY

$

$

Not available

11

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

12

Toro 94-1867

BATTERY
(Superseded to 104-2492)

$

$

Not available

13

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

14

Toro 92-6287

WIRE ASM (NEGATIVE)

$

$

Not available

15

Toro 2412-93

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

16

Toro 2412-138

R-CLAMP

$1.99

$

Usually ships in 3-6 days

0

17

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

18

Toro 98-3009

CONDUIT-CONVOLUTED

$

$

Not available

19

Toro 3290-381

TIE-CABLE

$1.49

$

In Stock, Qty 7

0

20

Toro 3290-313

SCREW-SPH

$7.49

$

Usually ships in 3-6 days

0

21

Toro 95-7669

SWITCH-REED, MAGNETIC

$

$

Not available

22

Toro 98-0823-03

BRACKET - SWITCH

$

$

Not available

23

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

24

Toro 2412-93

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

25

Toro 98-1324

SWITCH-INTERRUPTER

$199.99

$

Usually ships in 3-6 days

0

26

Toro 94-4696

ANGLE - MOUNT,SWITCH

$

$

Not available

27

Toro 98-4373

HARNESS - SEAT ADAPTER

$49.99

$

Usually ships in 3-6 days

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 94-4797-03

CHANNEL-MOUNT, SWITCH

$18.99

$

Usually ships in 3-6 days

0

32

Toro 94-9460

PLATE-MOUNT, SWITCH

$34.99

$

Usually ships in 3-6 days

0

33

Toro 113010

HOLDDOWN-BATTERY

$27.99

$

In Stock, only 4 left!

0

34

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

35

Toro 3256-12

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

36

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

37

Toro 3290-124

SCREW-HH

$

$

Not available

38

Toro 98-3006

ACTUATOR

$

$

Not available
