74189 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000001 - 200000500) (2000) BAGGER ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

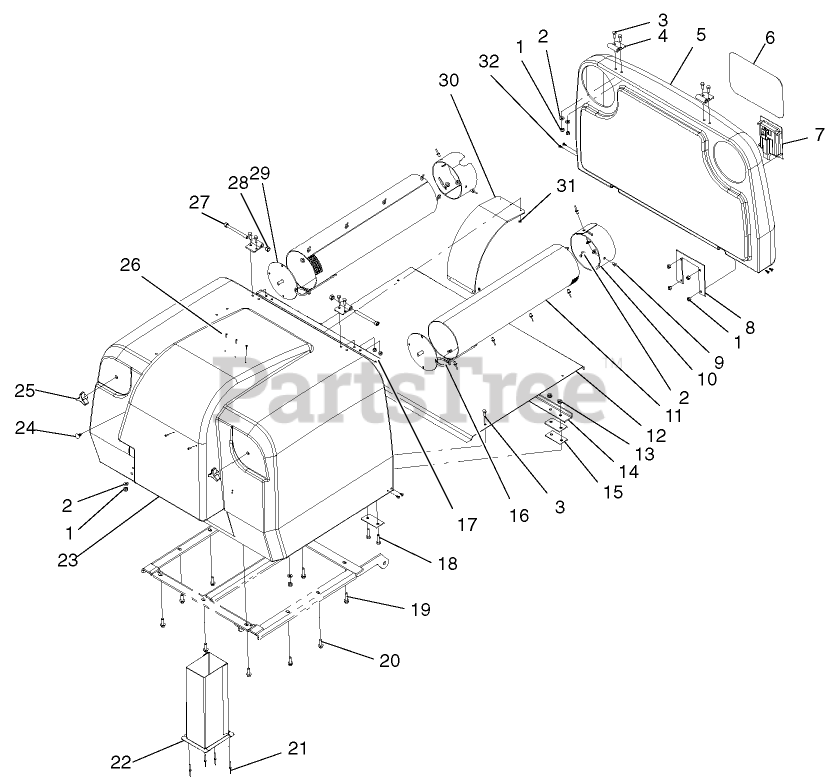

BAGGER ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

$

$

Not available

5

Toro 100-9617

COVER-BIN

$

$

Not available

6

Toro 67-7310

DECAL

$64.99

$

Usually ships in 3-6 days

0

7

Toro 100-9631

LEVER-LATCH

$

$

Not available

8

Toro 100-9632-03

PLATE-LATCH

$

$

Not available

9

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

10

Toro 100-5845

RING-SUPPORT

$

$

Not available

11

Toro 95-6441

SCREEN

$72.99

$

Usually ships in 3-6 days

0

12

Toro 100-4550-03

FLOOR-HOPPER

$

$

Not available

13

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

14

Toro 98-0849-03

FLANGE-BIN

$

$

Not available

15

Toro 98-3004

SPACER

$

$

Not available

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

17

Toro 98-3036-03

ANGLE-BIN

$

$

Not available

18

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

19

Toro 3234-36

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

20

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

21

Toro 98-7310

RIVET

$4.99

$

Usually ships in 3-6 days

0

22

Toro 95-6482-03

CHUTE ASM

$

$

Not available

23

Toro 95-6422

BIN - GRASS

$

$

Not available

24

Toro 104-0395

PLUG-PLASTIC

$1.99

$

Usually ships in 3-6 days

0

25

$

$

Not available

26

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

27

Toro 3274-102

SCREW-HSH

$

$

Not available

28

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

29

Toro 95-6444-03

PLATE ASM

$41.99

$

Usually ships in 3-6 days

0

30

Toro 100-4552

PLATE-WEAR

$25.99

$

Usually ships in 3-6 days

0

31

Toro 3256-12

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

32

Toro 104-0397

PLUG - PLASTIC

$

$

Not available
