74187 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000501 - 200999999) (2000) GEARBOX ASSEMBLY NO. 104-2446 Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

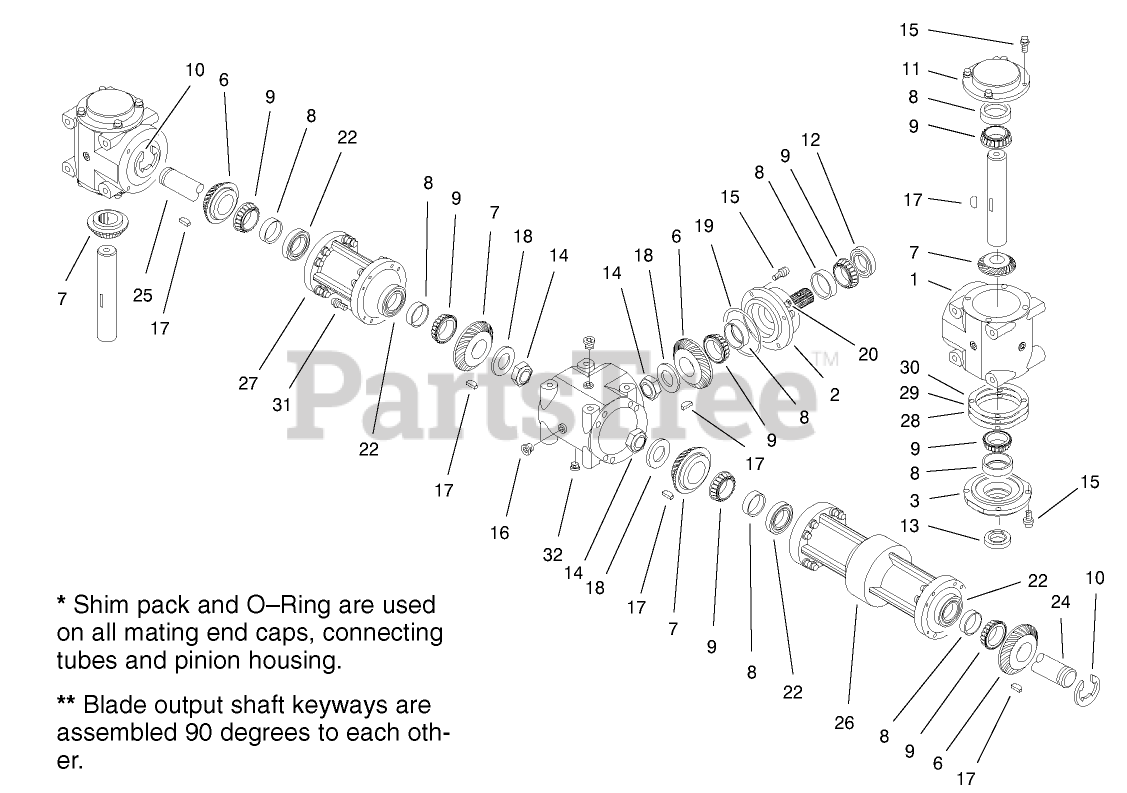

GEARBOX ASSEMBLY NO. 104-2446 Parts Diagram

  • Title

1

Toro 100-4564

CASE

$1365.99

$

Usually ships in 3-6 days

0

2

Toro 100-4565

HOUSING - PINION

$

$

Not available

3

Toro 100-4566

CAP-END, OPEN

$213.99

$

Usually ships in 3-6 days

0

4

Toro 100-7755

SPLINED PINION ASM

Note: Not illustrated

$

$

Not available

5

Toro 100-7754

LH SHAFT ASM

Note: Not illustrated

$

$

Not available

6

Toro 100-4569

GEAR - 27 TOOTH

$

$

Not available

7

Toro 100-4570

GEAR - 29 TOOTH

$

$

Not available

8

Toro 100-4571

Bearing-Cup
(Superseded to 254-72)

$10.99

$

In Stock, Qty 20+

0

9

Toro 100-4572

Bearing-Cone
(Superseded to 254-94)

$9.49

$

In Stock, Qty 20+

0

10

Toro 100-4573

CLIP-RETAINING

$

$

Not available

11

Toro 100-4574

CAP-END, CLOSED

$283.99

$

Usually ships in 3-6 days

0

12

Toro 100-4575

SEAL

$57.99

$

In Stock, only 1 left!

0

13

Toro 100-4576

SEAL
(Superseded to 253-118)

$19.99

$

In Stock, Qty 20+

0

14

Toro 100-4577

NUT-JAM

$

$

Not available

15

Toro 100-4578

SCREW

$14.99

$

Usually ships in 3-6 days

0

16

Toro 100-4579

PLUG

$31.99

$

Usually ships in 3-6 days

0

17

Toro 100-4580

KEY-WOODRUFF
(Superseded to 3257-33)

$2.49

$

Usually ships in 3-6 days

0

18

Toro 100-4581

WASHER

$49.99

$

Usually ships in 3-6 days

0

19

Toro 100-4582

O-RING

$8.99

$

Usually ships in 3-6 days

0

20

Toro 100-4583

PLUG

$

$

Not available

22

Toro 100-4585

SEAL

$46.99

$

Usually ships in 3-6 days

0

23

Toro 104-2427

RH Shaft ASM
(Superseded to 104-2415)

Note: Not illustrated

$

$

Not available

24

Toro 100-4587

SHAFT - CONNECTING, LONG

$

$

Not available

25

Toro 100-4588

SHAFT - CONNECTING, SHORT

$

$

Not available

26

Toro 100-4589

FLANGE - CONNECTING, LONG

$1276.99

$

Usually ships in 3-6 days

0

27

Toro 100-4590

FLANGE - CONNECTING, SHORT

$

$

Not available

28

Toro 100-4591

SHIM-BROWN, .010IN
(Superseded to 112-7034)

$23.99

$

In Stock, only 2 left!

0

29

Toro 100-4592

SHIM-BLUE, .005IN

$12.99

$

Usually ships in 3-6 days

0

30

Toro 100-4593

SHIM-GREEN, .003IN

$11.99

$

In Stock, only 1 left!

0

31

Toro 100-4594

SCREW

$21.99

$

Usually ships in 3-6 days

0

32

Toro 100-4595

PLUG-MAGNETIC

$

$

Not available
