74187 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000501 - 200999999) (2000) FUEL SYSTEM (KOHLER CH20S PS64644) Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

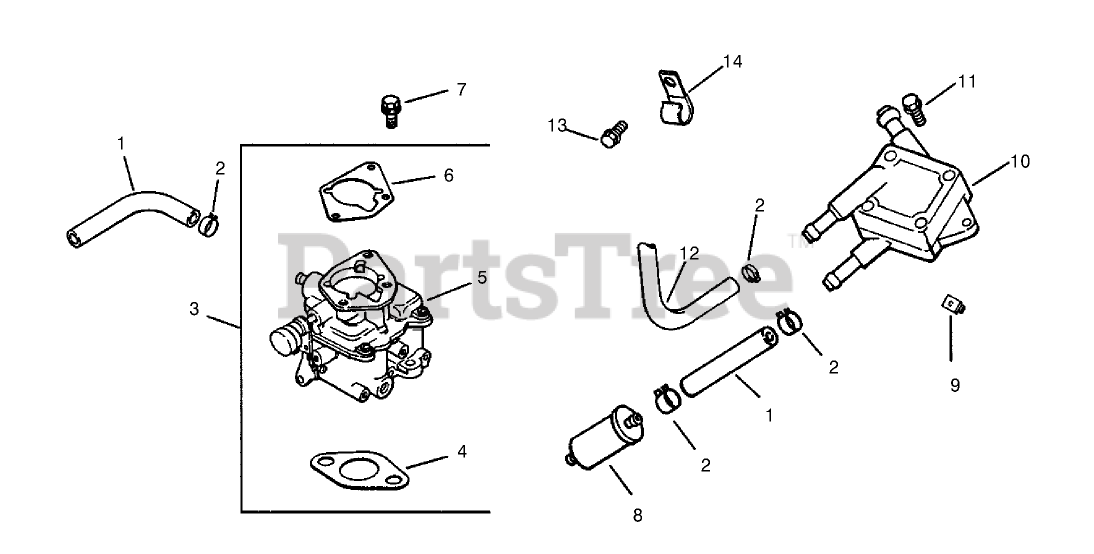

FUEL SYSTEM (KOHLER CH20S PS64644) Parts Diagram

  • Title

1

Kohler 25 353 10-S

Line-Fuel 9"

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

2

Kohler X-426-9-S

Clamp
(Superseded to 25 237 14-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 2 left!

0

3

Kohler 24 853 75-S

Kit, carburetor w/gasket (Includes 4-6)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 20+

0

5

Carburetor assembly (For information only not available seperately)(Includes 24 757 01-S, 24 757 02-S, 24 757 03-S, & 24 757 07-S, 24 053 75

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler 24 041 17-S

Gasket-Carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

In Stock, Qty 12

0

7

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler 24 050 02-S

Filter-Fuel
(Superseded to 24 050 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 20+

0

9

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 13

0

10

Kohler 24 393 16-S

PUMP-FUEL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, only 2 left!

0

11

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler 24 353 02-S

Line-Fuel, Flexible (15.5)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.99

$

Usually ships in 2-5 days

0

13

Kohler M-650012-S

Screw-HF (M6x1.0x12)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 3 left!

0

14

Kohler 24 154 03-S

Clip, cable
(Superseded to 24 154 10-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, only 2 left!

0

15

Kohler 24 757 01-S

Kit, solenoid (Includes 16-23)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$227.99

$

In Stock, only 1 left!

0

16

Kohler 24 521 01-S

Seat-Solenoid

Note: Not illustrated

$37.99

$

Usually ships in 2-5 days

0

17

Kohler 24 153 04-S

O-Ring

Note: Not illustrated

$4.49

$

In Stock, only 1 left!

0

18

Kohler 24 153 05-S

O-Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 4 left!

0

19

Kohler 24 153 06-S

O-Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 7

0

20

Kohler 24 086 07-S

Screw

Note: Not illustrated

$3.99

$

Usually ships in 2-5 days

0

21

Kohler 24 435 01-S

Solenoid ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$217.99

$

In Stock, only 1 left!

0

22

Kohler 24 757 02-S

FLOAT REPAIR KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$133.99

$

Usually ships in 2-5 days

0

23

Kohler 24 757 03-S

Kit, carburetor repair (Includes 24-33)

Note: Not illustrated

$112.99

$

In Stock, only 1 left!

0

24

Kohler 24 154 01-S

Clip-Valve, Needle Inlet

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.49

$

Usually ships in 2-5 days

0

25

Kohler 24 462 01-S

Valve-Needle, Inlet

Note: Call PartsTree Customer Service for more information on Kohler Parts

$39.99

$

Usually ships in 2-5 days

0

26

Kohler 24 086 09-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 8

0

27

Kohler 24 041 09-S

Gasket-Body, Carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$31.99

$

In Stock, only 1 left!

0

28

Kohler 24 153 02-S

O-Ring

Note: Not illustrated

$6.99

$

In Stock, only 3 left!

0

29

Kohler 24 153 04-S

O-Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 1 left!

0

30

Kohler 24 153 05-S

O-Ring

Note: Not illustrated

$4.49

$

In Stock, only 4 left!

0

31

Kohler 24 153 06-S

O-Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 7

0

32

Kohler 24 368 01-S

Needle-Idle

Note: Not illustrated

$13.99

$

Usually ships in 2-5 days

0

33

Kohler 24 089 11-S

Spring-Needle, Idle

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

Usually ships in 2-5 days

0
