74187 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000501 - 200999999) (2000) EXHAUST ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

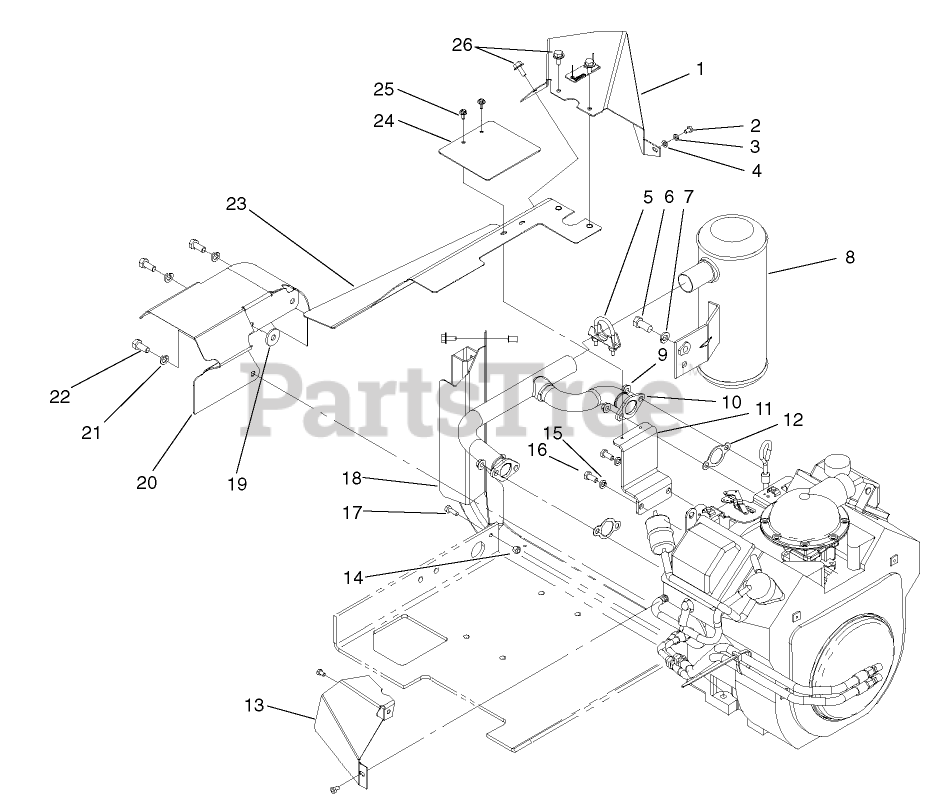

EXHAUST ASSEMBLY Parts Diagram

  • Title

1

Toro 98-1968

REAR HEAT BAFFLE ASM

$

$

Not available

2

Toro 42-9430

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

3

Toro 48-8020

WASHER-SPRING

$1.49

$

Usually ships in 3-6 days

0

4

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

5

Toro 2112-11

CLAMP-MUFFLER

$7.99

$

In Stock, only 2 left!

0

6

Toro 324-4

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

7

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 94-9495

MUFFLER

$565.99

$

Usually ships in 3-6 days

0

9

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

10

Toro 94-9494

MANIFOLD

$337.99

$

Usually ships in 3-6 days

0

11

Toro 94-9561

BRACKET-SHIELD, MANIFOLD
(Superseded to 94-9561-01)

$

$

Not available

12

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

13

Toro 98-1349

BAFFLE-HEAT, FRONT

$

$

Not available

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 42-9850

WASHER-LOCK, SPRING
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

16

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 98-1329

BAFFLE-HEAT, MIDDLE

$

$

Not available

19

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

20

Toro 98-1326

BAFFLE-HEAT, LOWER

$

$

Not available

21

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

23

Toro 98-1967

TOP HEAT BAFFLE ASM

$157.99

$

Usually ships in 3-6 days

0

24

Toro 98-1979

PANEL-ACCESS, BAFFLE

$

$

Not available

25

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

26

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0
