74187 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000501 - 200999999) (2000) CARRIER FRAME ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

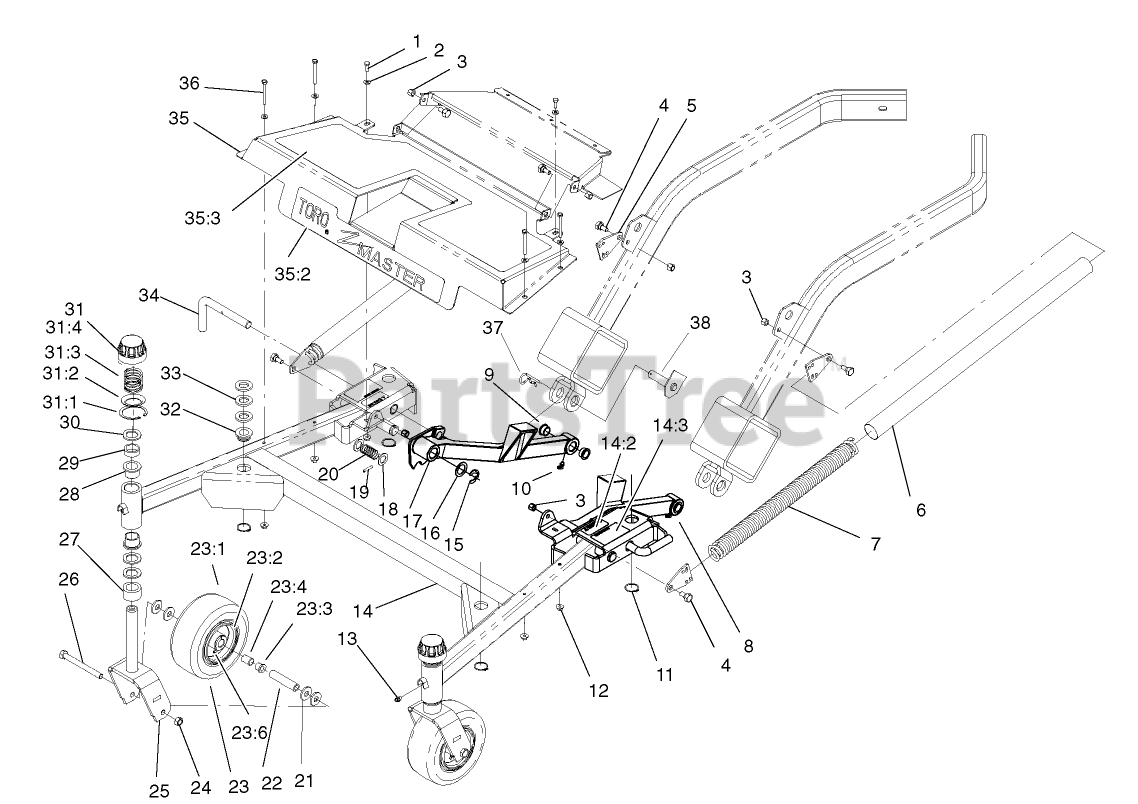

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

4

Toro 46-3380

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

5

Toro 94-4750

PLATE-END, SPRING

$

$

Not available

6

Toro 94-9550

COVER-SPRING

$

$

Not available

7

Toro 94-4664

SPRING-EXTENSION

$

$

Not available

8

Toro 98-0817-01

Casting-Lift Arm, LH
(Superseded to 105-1645)

$

$

Not available

9

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

10

Toro 302-60

FITTING-GREASE

$2.99

$

Usually ships in 3-6 days

0

11

Toro 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

0

12

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 100-7780

CARRIER FRAME ASM

$2240.99

$

Usually ships in 3-6 days

0

14:2

Toro 55-4300

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

14:3

Toro 100-7769

DECAL-ADJUSTMENT, CUTTING HEIGHT

$

$

Not available

15

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

16

Toro 9202514

Washer
(Superseded to 920251)

$3.49

$

In Stock, only 2 left!

0

17

Toro 98-0818-01

Casting-Lift Arm, RH
(Superseded to 105-1646)

$

$

Not available

18

Toro 9202254

WASHER

$3.99

$

In Stock, only 2 left!

0

19

Toro 32121-79

PIN-ROLL

$13.99

$

Usually ships in 3-6 days

0

20

Toro 98-1339

SPRING-COMPRESSION

$

$

Not available

21

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 12

0

23

Toro 99-1268

CASTOR WHEEL ASM

$150.99

$

Usually ships in 3-6 days

0

23:1

Toro 93-9939

TIRE

$47.99

$

Usually ships in 3-6 days

0

23:2

Toro 100-2348

RIM ASM

$59.99

$

Usually ships in 3-6 days

0

23:3

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, only 2 left!

0

23:4

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

23:6

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

23:5

Toro 100-5832

TUBE

Note: Not illustrated

$15.99

$

Usually ships in 3-6 days

0

24

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

25

Toro 99-0295-01

CASTOR FORK ASM

$319.99

$

Usually ships in 3-6 days

0

26

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

27

Toro 93-1167

SPACER-CASTOR

$36.99

$

Usually ships in 3-6 days

0

28

Toro 94-1291

BUSHING

$11.99

$

In Stock, Qty 10

0

29

Toro 63-0070

SPACER

$2.49

$

In Stock, Qty 16

0

30

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

31

Toro 92-8862

HOC CAP ASM

$75.99

$

Usually ships in 3-6 days

0

31:1

Toro 92-5581

RING-RETAINING

$3.49

$

In Stock, only 1 left!

0

31:2

Toro 92-5583

WASHER-CAP

$9.49

$

In Stock, only 1 left!

0

31:3

Toro 92-5584

SPRING-COMPRESSION

$18.99

$

In Stock, only 1 left!

0

31:4

Toro 92-8861

CAP-HOC

$47.99

$

In Stock, only 1 left!

0

32

Toro 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 7

0

33

Toro 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

34

Toro 100-2389

PIN-PIVOT

$

$

Not available

35

Toro 100-7774

FOOTREST ASM

$

$

Not available

35:2

Toro 100-7770

DECAL

$

$

Not available

35:3

Toro 100-7775

PAD-FOOTREST

$

$

Not available

36

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

37

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, only 3 left!

0

38

Toro 94-4755

PIVOT PIN ASM

$

$

Not available
