74187 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000501 - 200999999) (2000) AIR INTAKE/FILTRATION (KOHLER CH20S PS64644) Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

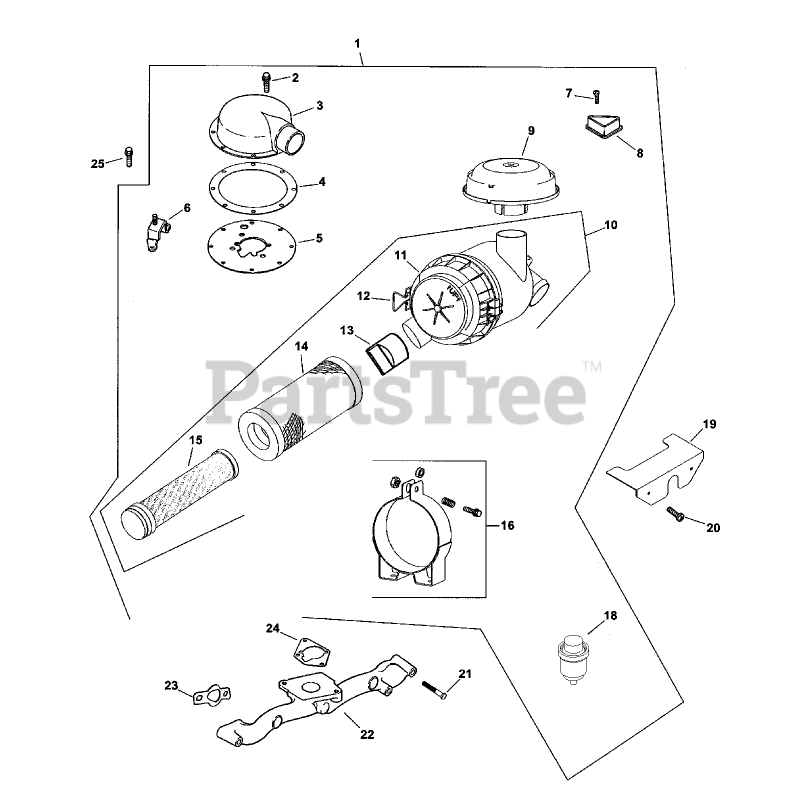

AIR INTAKE/FILTRATION (KOHLER CH20S PS64644) Parts Diagram

  • Title

1

Toro 24 743 26-S

Kit, heavy duty air cleaner (Includes: 2-18 & 24 853 77-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

2

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 15

0

3

Kohler 24 029 28-S

Adapter-Intake, Air

Note: Call PartsTree Customer Service for more information on Kohler Parts

$181.99

$

Usually ships in 2-5 days

0

4

Kohler 24 041 38-S

Gasket-Adapter, Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, only 1 left!

0

5

Kohler 24 029 35-S

Plate-Adapter
(Superseded to 24 029 79-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$55.99

$

Usually ships in 2-5 days

0

6

Kohler 24 126 21-S

Bracket-Base, Air Cleaner
(Superseded to 24 126 206-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, Qty 6

0

7

Kohler X-67-3-S

Screw, slotted hex. head
(Superseded to 25 086 91-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

8

Kohler 24 096 17-S

COVER-HOUSING, BLOWER
(Superseded to 24 096 160-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 2 left!

0

9

Kohler 25 324 02-S

Hood-Cleaner, Air
(Superseded to 25 324 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$49.99

$

In Stock, only 1 left!

0

10

Kohler 25 048 07-S

Cleaner assembly, air (incl. 11-15)
(Superseded to 25 048 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$143.99

$

Usually ships in 2-5 days

0

11

Kohler 25 096 06-S

AIR CLEANER COVER ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$87.99

$

In Stock, only 1 left!

0

12

Kohler 25 154 05-S

Clip
(Superseded to 62 154 07-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, Qty 12

0

13

Kohler 24 462 07-S

Valve-Ejector, Dust

Note: Call PartsTree Customer Service for more information on Kohler Parts

$21.99

$

In Stock, only 2 left!

0

14

Kohler 25 083 01-S

Element-Air Filter, Primary

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, Qty 20+

0

15

Kohler 25 083 04-S

Element-Air Filter, Safety

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, Qty 20+

0

16

Kohler 25 126 02-S

Air Cleaner Bracket ASM
(Superseded to 24 126 191-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$62.99

$

Usually ships in 2-5 days

0

18

Kohler 25 755 24-S

Air Filter Gauge Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$98.99

$

Usually ships in 2-5 days

0

19

Kohler 24 314 25-S

Shield-Debris

Note: Call PartsTree Customer Service for more information on Kohler Parts

$44.99

$

Usually ships in 2-5 days

0

20

Kohler 24 086 06-S

SCREW-PPH (11-16X3/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

21

Kohler M-651055-S

Screw-HF
(Superseded to 25 086 84-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

22

Kohler 24 164 14-S

Manifold-Intake

Note: Call PartsTree Customer Service for more information on Kohler Parts

$229.99

$

Usually ships in 2-5 days

0

23

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 7

0

24

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 20+

0

25

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 6

0

26

Kohler 24 853 77-S

Carburetor Kit

Note: Not illustrated

$434.99

$

In Stock, only 1 left!

0

27

Kohler 25 113 27-S

Decal-Cleaner, Air

Note: Not illustrated

$

$

Not available
