74187 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000001 - 200000500) (2000) PLENUM ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

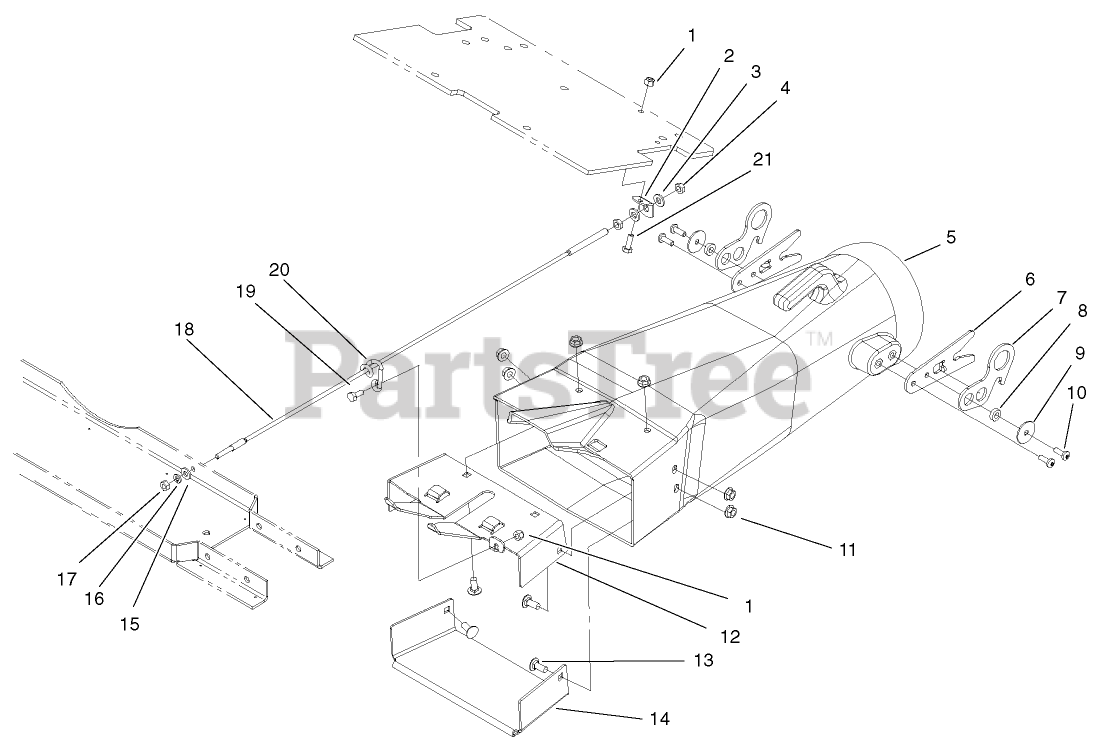

PLENUM ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 98-3035

BRACKET-SPRING

$

$

Not available

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

5

Toro 100-7787

Plenum
(Superseded to 104-2412)

$398.99

$

Usually ships in 3-6 days

0

6

Toro 104-0350

PLATE-GUIDE

$78.99

$

Usually ships in 3-6 days

0

7

Toro 100-7799

PLATE-LATCH

$59.99

$

In Stock, only 1 left!

0

8

Toro 104-0351

SPACER

$16.99

$

In Stock, only 1 left!

0

9

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

10

Toro 614267

SCREW-TORX

$5.99

$

In Stock, only 1 left!

0

11

Toro 32128-35

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

12

Toro 104-0385-03

PLATE-PLENUM, TOP

$

$

Not available

13

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 104-0386-03

PLATE-PLENUM, BOTTOM

$

$

Not available

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

18

Toro 104-0396

CABLE-TENSION

$121.99

$

Usually ships in 3-6 days

0

19

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 104-2405

GUIDE-CABLE

$43.99

$

Usually ships in 3-6 days

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
