74187 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000001 - 200000500) (2000) ELECTRICAL ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

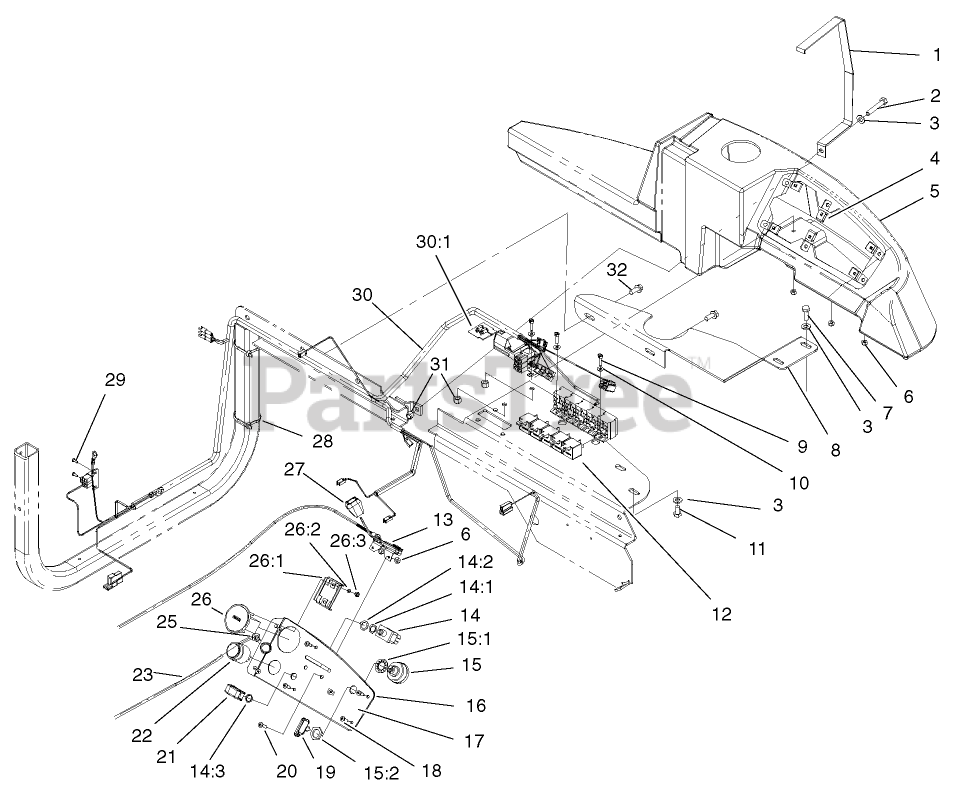

ELECTRICAL ASSEMBLY Parts Diagram

  • Title
1

Toro 94-9488-03

STRAP-CONSOLE

$

$

Not available

2

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 95-1962

CLIP-TINNERMAN

$

$

Not available

5

Toro 104-0365

CONSOLE
(Superseded to 107-1870)

$

$

Not available

6

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 100-7792-01

PLATE-SUPPORT, CONSOLE

$

$

Not available

9

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

10

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

12

Toro 116397

RELAY

$40.99

$

In Stock, only 1 left!

0

13

Toro 98-4350

THROTTLE CONTROL ASM

$

$

Not available

14

Toro 92-9811

SWITCH-TOGGLE, SEALED
(Superseded to 139-1516)

$62.99

$

In Stock, only 1 left!

0

14:1

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

14:2

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

14:3

$

$

Not available

15

Toro 111216

IGNITION SWITCH ASM
(Superseded to 103990)

$28.99

$

In Stock, only 4 left!

0

15:1

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

15:2

$7.49

$

In Stock, only 1 left!

0

16

Toro 98-1999-03

PANEL - INSTRUMENT

$

$

Not available

17

Toro 98-4357

DECAL - INSTRUMENT

$

$

Not available

18

Toro 32144-124

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

19

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

20

Toro 3250-13

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

21

Toro 113050

COVER-PTO SWITCH

$

$

Not available

22

Toro 80-9330

AUDIO ALARM ASM

$146.99

$

Usually ships in 3-6 days

0

23

Toro 98-1956

CONTROL-CHOKE

$64.99

$

Usually ships in 3-6 days

0

25

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

26

Toro 78-0020

Hourmeter
(Superseded to 66-2950)

$

$

Not available

26:1

Toro 78-3320

CLAMP-HOUR METER

$11.99

$

Usually ships in 3-6 days

0

26:2

Toro 3255-25

WASHER-LOCK
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

26:3

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

27

$5.99

$

In Stock, only 2 left!

0

28

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

29

Toro 32144-74

SCREW-TAP

$2.99

$

Usually ships in 3-6 days

0

30

Toro 98-3317

HARNESS

$

$

Not available

30:1

Toro 92-3188

DIODE-BOARD, CIRCUIT

$65.99

$

Usually ships in 3-6 days

0

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0
