74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089001200 - 089001564) (1998) IGNITION/ELECTRICAL Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

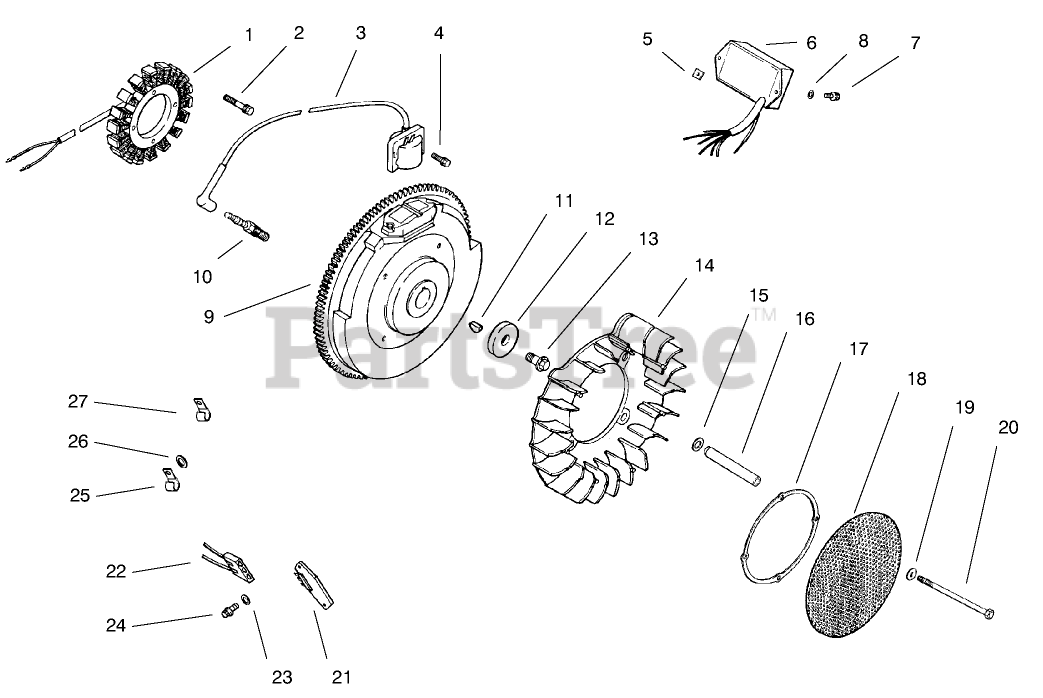

IGNITION/ELECTRICAL Parts Diagram

  • Title

1

2408503

Stator-15 amp

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

2

Kohler M-0548025

Screw
(Superseded to M-548025)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

In Stock, only 2 left!

0

3

2416225

Screen-Grass

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

4

Kohler M-0561025

Screw-HSH

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

5

Kohler 24 100 02

Nut-Plastic
(Superseded to 24 100 02-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 24 584 09

Module, speed adv.
(Superseded to 24 584 09-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

7

Kohler M-0461013

Screw, pan head M4.2x13 (2)
(Superseded to M-461013-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

8

Kohler X-22-11

Washer
(Superseded to X-22-11-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

In Stock, only 3 left!

0

9

2402503

Flywheel

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

10

Kohler 12 132 06

Plug-Spark
(Superseded to 12 132 06-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$20.99

$

Usually ships in 2-5 days

0

11

Kohler X-42-15

Key
(Superseded to X-42-15-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.99

$

In Stock, Qty 8

0

12

Kohler 12 468 03

Washer
(Superseded to 25 468 09-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$6.49

$

In Stock, only 2 left!

0

13

Kohler 12 086 14

Screw
(Superseded to 25 086 361-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$3.99

$

In Stock, Qty 12

0

14

2415703

Fan

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

15

2446811

Washer, sping

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

16

Kohler 24 112 14

Spacer
(Superseded to 24 112 14-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$18.99

$

In Stock, only 1 left!

0

17

2414106

Ring-Support

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

18

2416225

Screen-Grass

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

19

Kohler X-25-53

Washer
(Superseded to X-25-53-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$3.49

$

In Stock, only 3 left!

0

20

Kohler M-0603100

Screw-Hex
(Superseded to M-603100-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$4.49

$

In Stock, only 4 left!

0

21

Kohler 25 403 03

Rectifier-Regulator
(Superseded to 25 403 03-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

22

Kohler 236602

Connector
(Superseded to 236602-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$24.99

$

In Stock, only 1 left!

0

23

Kohler X-25-92

Washer
(Superseded to X-25-92-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

In Stock, only 2 left!

0

24

Kohler 24 086 18

Screw
(Superseded to 24 086 18-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

25

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$5.49

$

In Stock, Qty 5

0

26

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

In Stock, only 3 left!

0

27

Kohler 48 154 02

Clip
(Superseded to 48 154 02-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$16.99

$

Usually ships in 2-5 days

0

Kohler 24 126 71

Bracket-Wire, Stator
(Superseded to 24 126 71-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$15.99

$

Usually ships in 2-5 days

0

Kohler 24 126 71

Bracket-Wire, Stator
(Superseded to 24 126 71-S)

Note: Not illustrated

$15.99

$

Usually ships in 2-5 days

0

2417616

Harness-Wiring

Note: Not illustrated

$

$

Not available

2417616

Harness-Wiring

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

2551828

Lead-Black

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

2551828

Lead-Black

Note: Not illustrated

$

$

Not available

2508643

Screw-Set

Note: Not illustrated

$

$

Not available

2508643

Screw-Set

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

In Stock, only 3 left!

0

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0
