74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089001200 - 089001564) (1998) HYDRAULIC SYSTEM Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

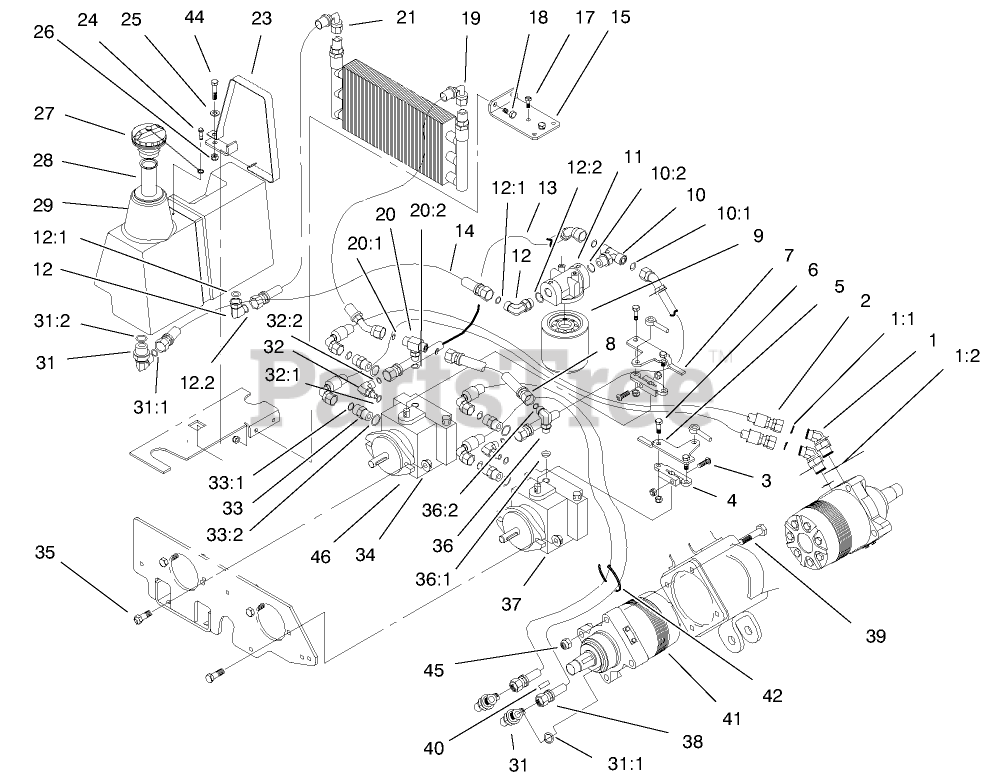

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Toro 340-89

FITTING-HYD, 45 DEG

$43.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

1:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

2

Toro 94-4714

HOSE-HYDRAULIC

$241.99

$

Usually ships in 3-6 days

0

3

Toro 3274-83

SCREW-HSH

$3.49

$

In Stock, only 2 left!

0

4

Toro 94-4678

ARM-CONTROL, PUMP

$69.99

$

Usually ships in 3-6 days

0

5

Toro 94-4701-03

PLATE-CONTROL, RIGHT

$

$

Not available

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 94-4702-03

PLATE-CONTROL, LEFT

$

$

Not available

8

Toro 94-4712

HOSE-HYD

$64.99

$

Usually ships in 3-6 days

0

9

Toro 67-8110

CARTRIDGE-FILTER, OIL

$23.99

$

In Stock, only 3 left!

0

10

Toro 340-157

FITTING-HYD, TEE

$64.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

10:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

11

Toro 86-9080

HEAD-FILTER

$117.99

$

Usually ships in 3-6 days

0

12

Toro 340-98

FITTING-ELBOW-90 DEG

$32.99

$

In Stock, only 2 left!

0

12:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

12:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

13

Toro 98-4384

HYDRAULIC HOSE ASM

$

$

Not available

14

Toro 94-4710

HYDRAULIC HOSE ASM

$

$

Not available

15

Toro 94-9525-03

ANGLE-MOUNT, HYD FILTER

$

$

Not available

17

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

18

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

19

Toro 94-4713

HYDRAULIC HOSE ASM

$

$

Not available

20

Toro 340-94

ADAPTER

$47.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 15

0

20:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

21

Toro 94-4709

HYDRAULIC HOSE ASM

$

$

Not available

23

Toro 94-4642-03

STRAP-TANK, HYD

$40.99

$

Usually ships in 3-6 days

0

24

Toro 3290-126

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 93-4365

CAP-OIL

$64.99

$

In Stock, only 1 left!

0

28

Toro 92-1705

FILTER-SCREEN

$64.99

$

Usually ships in 3-6 days

0

29

Toro 94-4700

TANK-HYD

$777.99

$

Usually ships in 3-6 days

0

31

Toro 340-105

FITTING-ELBOW 90

$42.99

$

In Stock, only 1 left!

0

31:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

31:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

32

Toro 340-97

FITTING-ELBOW 90

$41.99

$

Usually ships in 3-6 days

0

32:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 15

0

32:2

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

33

Toro 340-4

FITTING-STRAIGHT

$11.99

$

In Stock, only 3 left!

0

33:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

33:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

34

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

35

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

36

Toro 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

36:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 15

0

36:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

37

Toro 98-4375

PUMP - HYDRAULIC

$2421.99

$

Usually ships in 3-6 days

0

38

Toro 94-4705

HYDRAULIC HOSE ASM

$

$

Not available

39

Toro 3274-93

SCREW-HSH

$4.49

$

Usually ships in 3-6 days

0

40

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 14

0

41

Toro 94-4640

MOTOR - HYDRAULIC WHEEL

$3567.99

$

Usually ships in 3-6 days

0

42

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

44

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 7

0

45

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

45

Toro 76-0800

SEAL KIT

$95.99

$

Usually ships in 3-6 days

0

46

Toro 98-4374

PUMP - HYDRAULIC

$

$

Not available
