74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089001200 - 089001564) (1998) GEAR BOX ASSEMBLY NO. 94-4641 Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

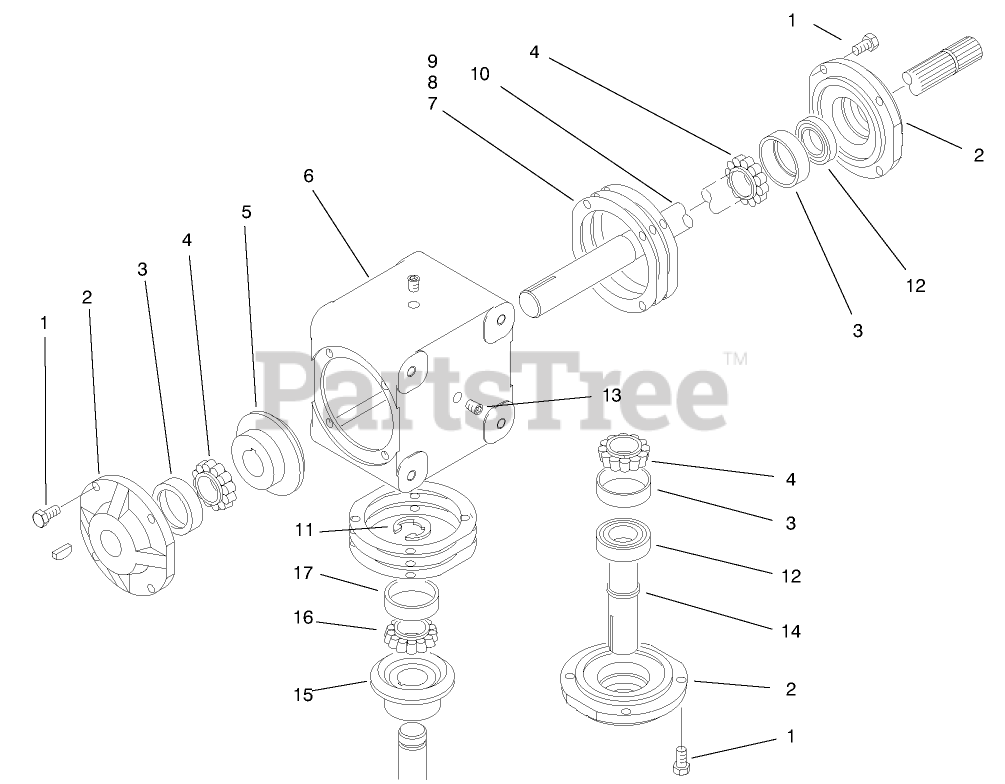

GEAR BOX ASSEMBLY NO. 94-4641 Parts Diagram

  • Title

1

Toro 98-1341

SCREW

$

$

Not available

2

Toro 98-1346

Cap
(Superseded to 62-3410)

$

$

Not available

3

Toro 62-3340

Cup
(Superseded to 254-72)

$10.99

$

In Stock, Qty 20+

0

4

Toro 98-1343

BEARING - CONE

$

$

Not available

5

Toro 98-1348

GEAR LH

$

$

Not available

6

Toro 98-1340

HOUSING

$

$

Not available

7

Toro 62-3420

GASKET

$14.99

$

In Stock, only 2 left!

0

8

Toro 62-3430

GASKET

$7.99

$

Usually ships in 3-6 days

0

9

Toro 62-3440

GASKET

$

$

Not available

10

Toro 98-1962

SHAFT

$

$

Not available

11

Toro 68-7070

Ring-Retaining
(Superseded to 32151-79)

$6.99

$

Usually ships in 3-6 days

0

12

Toro 62-3400

Seal
(Superseded to 253-118)

$20.99

$

In Stock, Qty 20+

0

13

Toro 62-3490

PLUG (OBS, C/R TO 281-10)
(Superseded to 281-10)

$19.99

$

Usually ships in 3-6 days

0

14

Toro 98-1960

INPUT SHAFT

$

$

Not available

15

Toro 98-1961

GEAR RH

$918.99

$

Usually ships in 3-6 days

0

16

Toro 62-3370

Cone
(Superseded to 254-68)

$35.99

$

In Stock, only 2 left!

0

17

Toro 62-3360

Bearing Cup
(Superseded to 254-67)

$17.99

$

In Stock, only 2 left!

0
