74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089001200 - 089001564) (1998) CRANKCASE Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

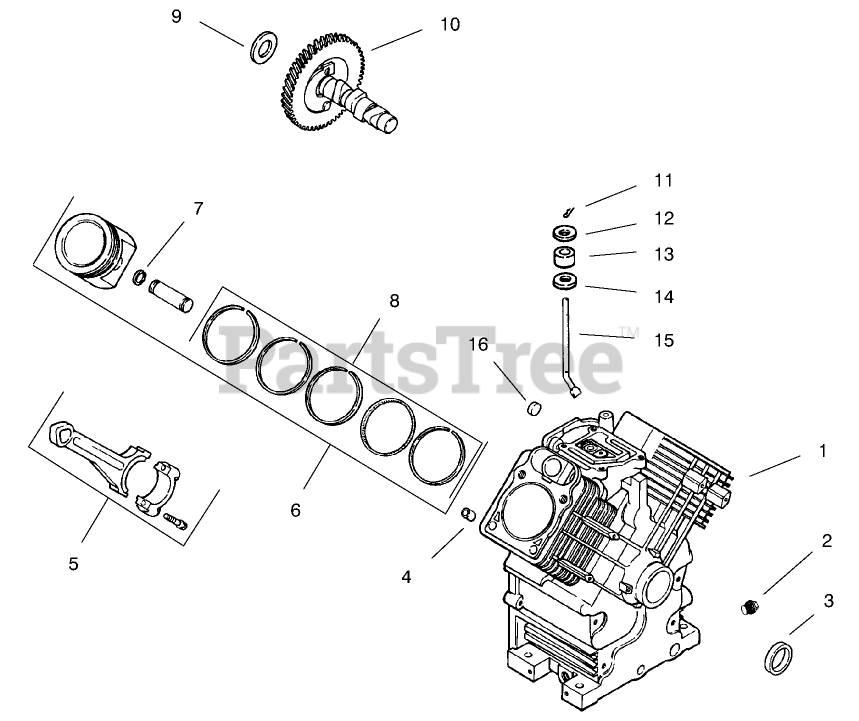

CRANKCASE Parts Diagram

  • Title

1

Kohler 24 561 33

Kit, service crankcase (Incl. 4,16,X-75-10 (2))
(Superseded to 24 561 33-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$798.99

$

Usually ships in 2-5 days

0

2

Kohler X-75-2

Plug
(Superseded to X-75-2-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$3.49

$

Usually ships in 2-5 days

0

3

Kohler 24 032 01

Seal-Oil
(Superseded to 24 032 01-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$7.49

$

In Stock, Qty 20+

0

4

1238017

Dowel-Locating

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

5

2406709

Connecting Rod (std)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

2406710

Connecting Rod .25

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

6

Kohler 24 874 06

Piston w/Ring Set (Std.)(2)(Includes 7,8)
(Superseded to 24 874 06-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$270.99

$

In Stock, only 2 left!

0

7

Kohler 24 018 01

Retainer-Piston Pin
(Superseded to 24 018 01-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.99

$

In Stock, Qty 7

0

8

2410804

Ring Set (Std.)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

9

Kohler 12 422 09

Shim-Camshaft
(Superseded to 12 422 09-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 13

Shim-Camshaft
(Superseded to 12 422 13-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07

Shim-Camshaft
(Superseded to 12 422 07-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$4.49

$

Usually ships in 2-5 days

0

Kohler 12 422 08

Shim-Camshaft
(Superseded to 12 422 08-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

In Stock, only 2 left!

0

Kohler 12 422 10

Shim-Camshaft
(Superseded to 12 422 10-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 11

Shim-Camshaft
(Superseded to 12 422 11-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 12

Shim-Camshaft
(Superseded to 12 422 12-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.99

$

Usually ships in 2-5 days

0

10

2401205

Camshaft

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

11

1238004

Pin-Hitch

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

12

Kohler M-0631005

Washer
(Superseded to M-631005)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

13

1203201

Seal-Cross Shaft

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

14

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

In Stock, Qty 5

0

15

2414401

Shaft-Governor Cross

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

16

Kohler 52 139 09

Plug
(Superseded to 52 139 09-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$4.99

$

In Stock, only 2 left!

0
