74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089001200 - 089001564) (1998) BLOWER HOUSING & BAFFLES Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

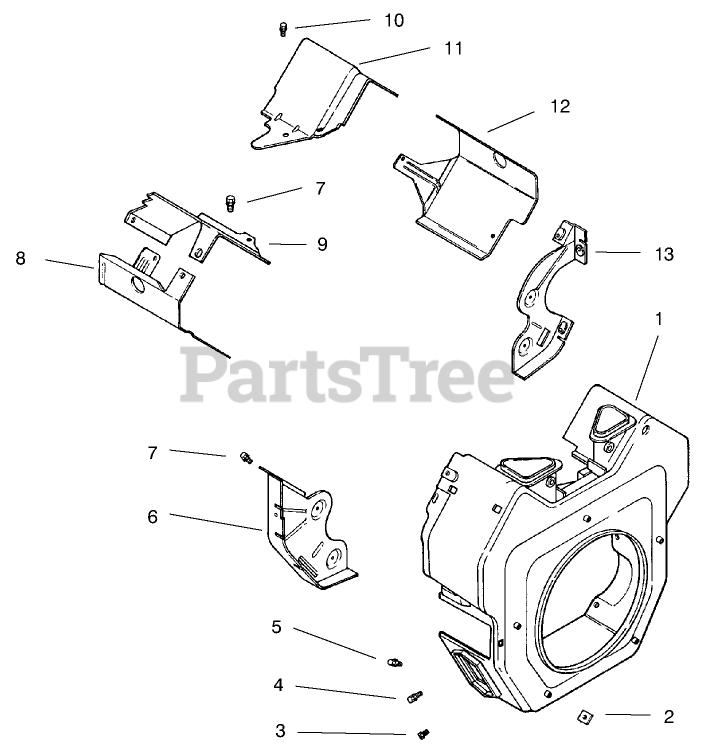

BLOWER HOUSING & BAFFLES Parts Diagram

  • Title

1

5402705

Housing, blower

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

2

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

In Stock, Qty 13

0

3

Kohler M-0551016

Screw
(Superseded to M-551016-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

In Stock, only 2 left!

0

4

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$2.49

$

In Stock, Qty 15

0

5

Kohler M-0545020

Screw

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

6

Kohler 24 146 11

Plate-Backing,#2 side
(Superseded to 24 146 19)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$15.99

$

In Stock, only 2 left!

0

7

Kohler M-0645016

Screw
(Superseded to M-645016)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$3.99

$

In Stock, Qty 15

0

8

Kohler 24 063 28

barrel-#2 side
(Superseded to 24 063 88-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$28.99

$

Usually ships in 2-5 days

0

9

Kohler 24 063 17

Baffle-Valley, #2 side
(Superseded to 24 063 17-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$9.49

$

Usually ships in 2-5 days

0

10

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$4.49

$

In Stock, only 3 left!

0

11

Kohler 24 063 24

Baffle-Valley, #1 Side
(Superseded to 24 063 24-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$6.49

$

In Stock, only 1 left!

0

12

2406330

Baffle-Cyl. #1 Side

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

13

2414608

Plate-Backing #1

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

2411309

Decal, horsepower

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

$

$

Not available

2411309

Decal, horsepower

Note: Not illustrated

$

$

Not available
