74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089000184 - 089001199) (1998) ELECTRICAL SYSTEM Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

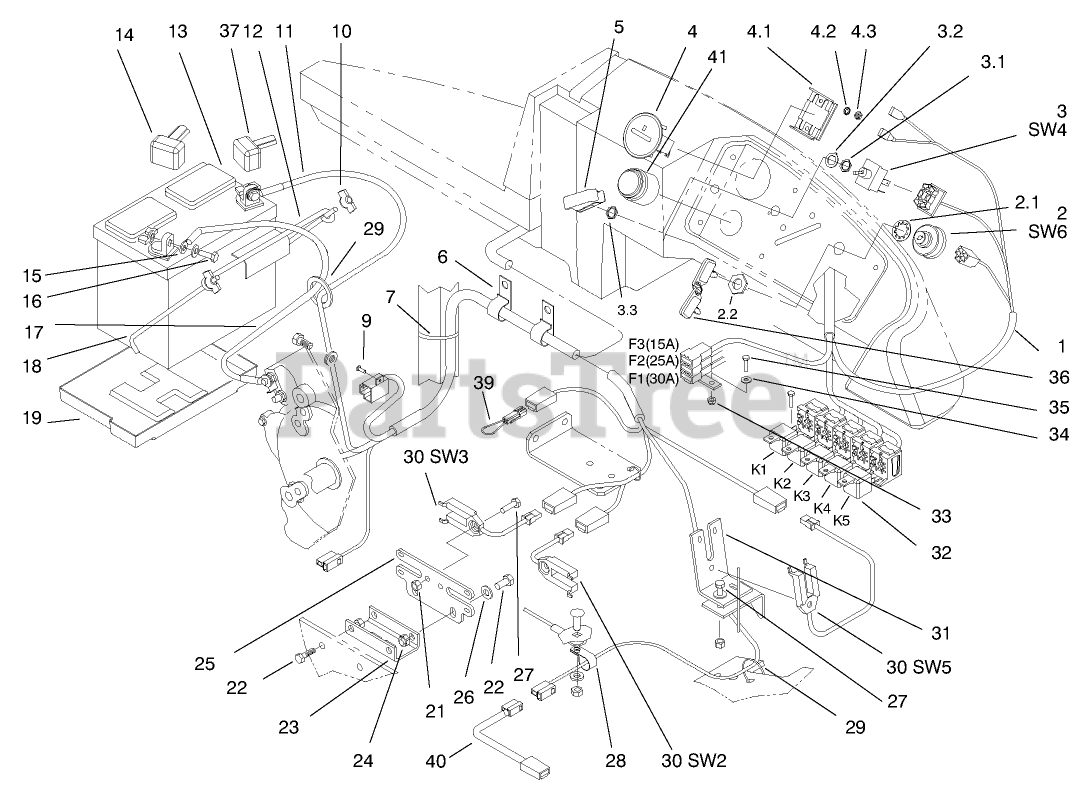

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 98-3317

HARNESS

$

$

Not available

2

Toro 111216

IGNITION SWITCH ASM
(Superseded to 103990)

$28.99

$

In Stock, Qty 5

0

2:1

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

2:2

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

3

Toro 92-9811

SWITCH-TOGGLE, SEALED
(Superseded to 139-1516)

$65.99

$

In Stock, only 1 left!

0

3:1

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

3:2

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

3:3

Toro 113179

DISC

$

$

Not available

4

Toro 78-0020

Hourmeter
(Superseded to 66-2950)

$

$

Not available

4:1

Toro 78-3320

CLAMP-HOUR METER

$12.99

$

Usually ships in 3-6 days

0

4:2

Toro 3255-25

WASHER-LOCK
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

4:3

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro 113050

COVER-PTO SWITCH

$

$

Not available

6

Toro 94-9580

CLAMP-J

$

$

Not available

7

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

9

Toro 32144-74

SCREW-TAP

$2.99

$

Usually ships in 3-6 days

0

10

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 11

0

11

Toro 92-6287

WIRE ASM (NEGATIVE)

$

$

Not available

12

Toro 113010

HOLDDOWN-BATTERY

$27.99

$

In Stock, only 3 left!

0

13

Toro 94-1867

BATTERY
(Superseded to 104-2492)

$

$

Not available

13

Toro 94-6666

ASM-BATTERY W/DECALS
(Superseded to 104-8162)

$

$

Not available

14

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 28-3893

WIRE ASM

$

$

Not available

18

Toro 94-6146

RETAINER-BATTERY

$

$

Not available

19

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 2 left!

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 94-4797-03

CHANNEL-MOUNT, SWITCH

$18.99

$

Usually ships in 3-6 days

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 94-9460

PLATE-MOUNT, SWITCH

$36.99

$

Usually ships in 3-6 days

0

26

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 2412-93

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

29

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

30

Toro 98-1324

SWITCH-INTERRUPTER

$209.99

$

Usually ships in 3-6 days

0

31

Toro 94-4696

ANGLE - MOUNT,SWITCH

$

$

Not available

32

Toro 116397

RELAY

$42.99

$

In Stock, only 2 left!

0

33

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

35

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, only 2 left!

0

36

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 15

0

39

Toro 98-1982

JUMPER

$

$

Not available

40

Toro 98-4373

HARNESS - SEAT ADAPTER

$51.99

$

Usually ships in 3-6 days

0
