Toro 74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089000001 - 089000183) (1998) HYDRAULIC SYSTEM Parts Lookup with Diagrams

1

Toro 340-89

FITTING-HYD, 45 DEG

$45.99

$

Usually ships in 3-6 days

1:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

1:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

2

Toro 94-4714

HOSE-HYDRAULIC

$267.99

$

Usually ships in 3-6 days

3

Toro 3274-83

SCREW-HSH

$3.99

$

In Stock, only 2 left!

4

Toro 94-4678

ARM-CONTROL, PUMP

$84.99

$

Usually ships in 3-6 days

5

Toro 94-4701-03

PLATE-CONTROL, RIGHT

$

Not available 

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

7

Toro 94-4702-03

PLATE-CONTROL, LEFT

$

Not available 

8

Toro 94-4712

HOSE-HYD

$69.99

$

Usually ships in 3-6 days

9

Toro 67-8110

CARTRIDGE-FILTER, OIL

$23.99

$

In Stock, Qty 13

10

Toro 340-157

FITTING-HYD, TEE

$70.99

$

Usually ships in 3-6 days

10:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

10:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

11

Toro 86-9080

HEAD-FILTER

$131.99

$

In Stock, only 1 left!

12

Toro 340-98

FITTING-ELBOW-90 DEG

$36.99

$

In Stock, only 2 left!

12:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

12:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

13

Toro 94-4711

ASM - HOSE,HYDRAULIC

$

Not available 

14

Toro 94-4710

HYDRAULIC HOSE ASM

$

Not available 

15

Toro 94-9525-03

ANGLE-MOUNT, HYD FILTER

$

Not available 

17

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

18

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

19

Toro 94-4713

HYDRAULIC HOSE ASM

$

Not available 

20

Toro 340-94

ADAPTER

$52.99

$

Usually ships in 3-6 days

20:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

20:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

21

Toro 94-4709

HYDRAULIC HOSE ASM

$

Not available 

23

Toro 94-4642-03

STRAP-TANK, HYD

$43.99

$

Usually ships in 3-6 days

24

Toro 3290-126

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

27

Toro 93-4365

CAP-OIL

$71.99

$

In Stock, only 1 left!

28

Toro 92-1705

FILTER-SCREEN

$71.99

$

Usually ships in 3-6 days

29

Toro 94-4700

TANK-HYD

$

Not available 

31

Toro 340-105

FITTING-ELBOW 90

$44.99

$

In Stock, only 1 left!

31:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

31:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

32

Toro 340-97

FITTING-ELBOW 90

$46.99

$

Usually ships in 3-6 days

32:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

32:2

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

33

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

33:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

33:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

34

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

35

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

36

Toro 340-77

FITTING-ELBOW, 90 DEG

$28.99

$

Usually ships in 3-6 days

36:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

36:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

37

Toro 98-1957

HYDRAULIC PUMP

$2575.99

$

Usually ships in 3-6 days

38

Toro 94-4705

HYDRAULIC HOSE ASM

$

Not available 

39

Toro 3274-93

SCREW-HSH

$4.99

$

Usually ships in 3-6 days

40

Toro 3257-42

KEY-WOODRUFF

$6.99

$

In Stock, Qty 20+

41

Toro 94-4640

MOTOR - HYDRAULIC WHEEL

$3782.99

$

Usually ships in 3-6 days

42

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

44

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

45

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

45

Toro 76-0800

SEAL KIT

$106.99

$

Usually ships in 3-6 days

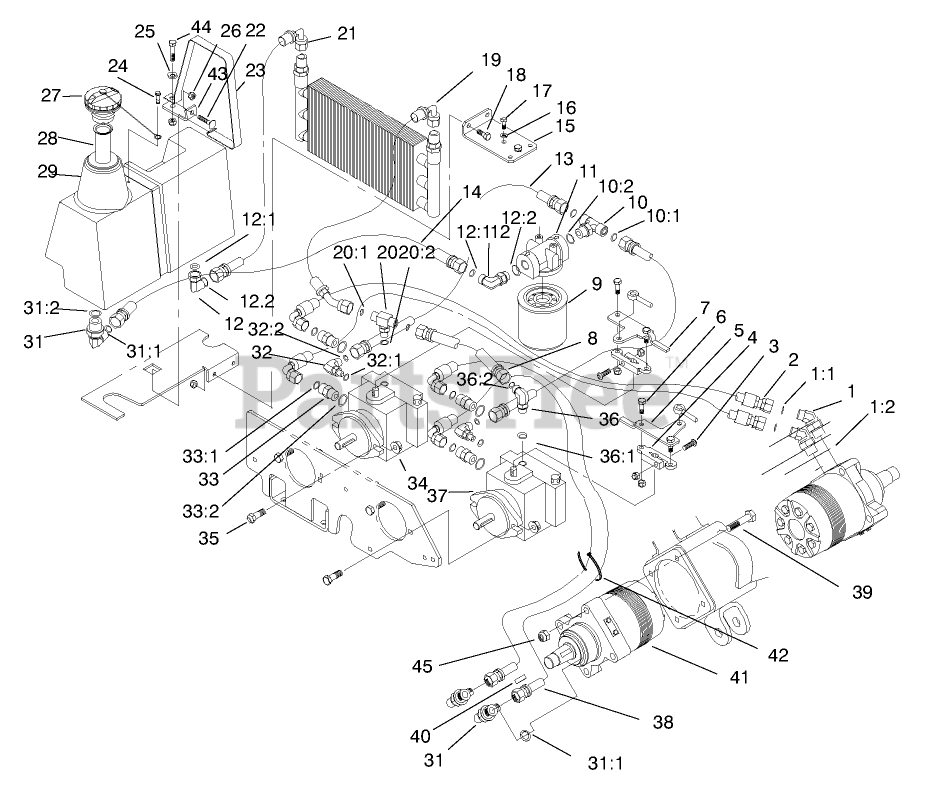

74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089000001 - 089000183) (1998) HYDRAULIC SYSTEM Parts Diagram

HYDRAULIC SYSTEM Parts Diagram
