74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) HYDRAULIC SYSTEM Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

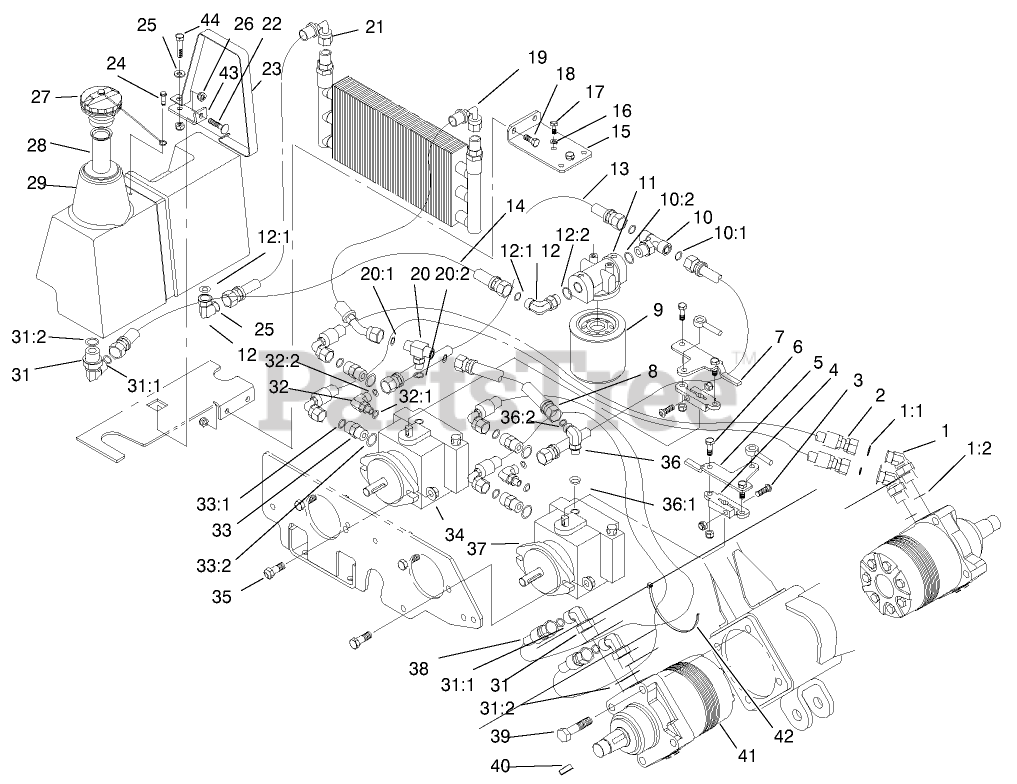

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Toro 340-89

FITTING-HYD, 45 DEG

$43.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

1:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

2

Toro 94-4714

HOSE-HYDRAULIC

$253.99

$

Usually ships in 3-6 days

0

3

Toro 3274-83

SCREW-HSH

$3.99

$

In Stock, only 2 left!

0

4

Toro 94-4678

ARM-CONTROL, PUMP

$78.99

$

Usually ships in 3-6 days

0

5

Toro 94-4702-03

PLATE-CONTROL, LEFT

$

$

Not available

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 94-4701-03

PLATE-CONTROL, RIGHT

$

$

Not available

8

Toro 94-4712

HOSE-HYD

$66.99

$

Usually ships in 3-6 days

0

9

Toro 67-8110

CARTRIDGE-FILTER, OIL

$22.99

$

In Stock, only 3 left!

0

10

Toro 340-157

FITTING-HYD, TEE

$67.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

10:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

11

Toro 86-9080

HEAD-FILTER

$123.99

$

Usually ships in 3-6 days

0

12

Toro 340-98

FITTING-ELBOW-90 DEG

$33.99

$

In Stock, only 2 left!

0

12:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

12:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

13

Toro 94-4711

ASM - HOSE,HYDRAULIC

$

$

Not available

14

Toro 94-4710

HYDRAULIC HOSE ASM

$

$

Not available

15

Toro 94-9525-03

ANGLE-MOUNT, HYD FILTER

$

$

Not available

16

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 94-4713

HYDRAULIC HOSE ASM

$

$

Not available

20

Toro 340-94

ADAPTER

$49.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

20:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

21

Toro 94-4709

HYDRAULIC HOSE ASM

$

$

Not available

22

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

23

Toro 94-4642-03

STRAP-TANK, HYD

$41.99

$

Usually ships in 3-6 days

0

24

Toro 57-5420

SCREW-SHOULDER

$6.49

$

Usually ships in 3-6 days

0

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 93-4365

CAP-OIL

$67.99

$

In Stock, only 1 left!

0

28

Toro 92-1705

FILTER-SCREEN

$67.99

$

Usually ships in 3-6 days

0

29

Toro 94-4700

TANK-HYD

$801.99

$

Usually ships in 3-6 days

0

31

Toro 340-105

FITTING-ELBOW 90

$42.99

$

In Stock, only 1 left!

0

31:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

31:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

32

Toro 340-97

FITTING-ELBOW 90

$43.99

$

Usually ships in 3-6 days

0

32:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

32:2

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

33

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

33:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

33:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

34

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

35

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

36

Toro 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

36:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

36:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

37

Toro 98-1957

HYDRAULIC PUMP

$2429.99

$

Usually ships in 3-6 days

0

38

Toro 94-4705

HYDRAULIC HOSE ASM

$

$

Not available

39

Toro 325-9

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

40

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 12

0

41

Toro 94-4640

MOTOR - HYDRAULIC WHEEL

$3567.99

$

Usually ships in 3-6 days

0

42

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

43

Toro 98-1954-01

Mount-Strap

$

$

Currently unavailable

44

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

45

Toro 76-0800

SEAL KIT

$100.99

$

Usually ships in 3-6 days

0
