74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) DRIVE SYSTEMS Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

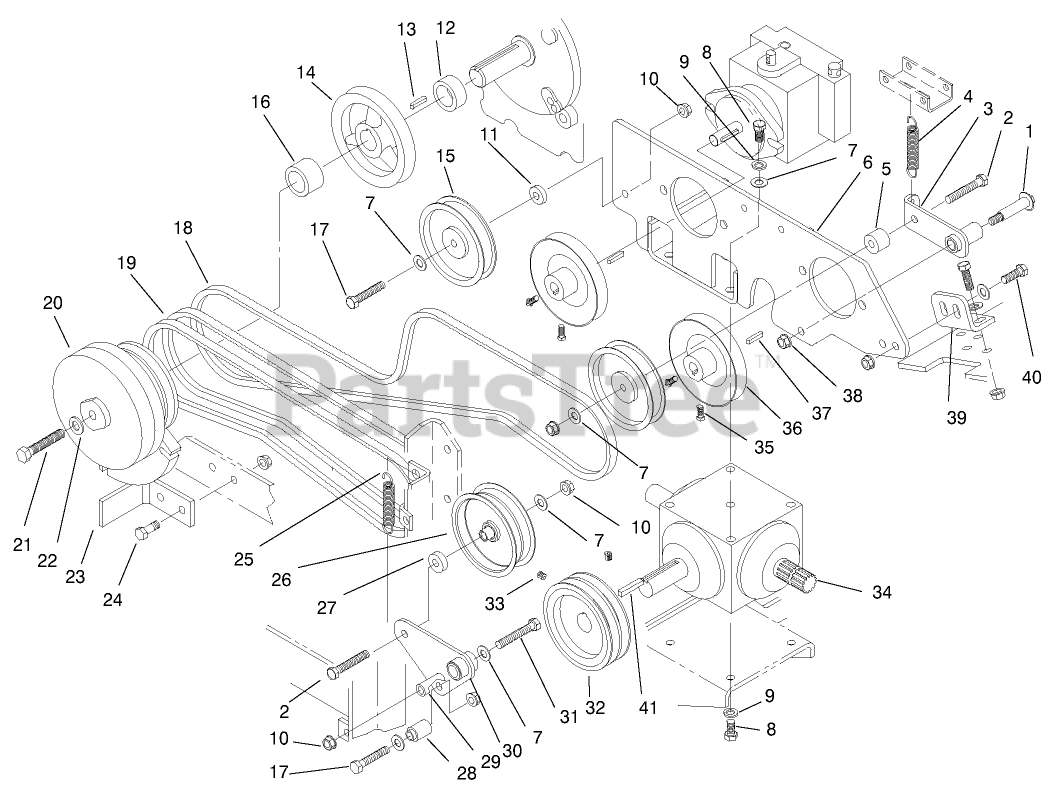

DRIVE SYSTEMS Parts Diagram

  • Title

1

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

2

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Toro 95-1950

IDLER ARM ASM

$

$

Not available

4

Toro 94-9599

SPRING-EXTENSION

$25.99

$

Usually ships in 3-6 days

0

5

Toro 94-4792

SPACER-ARM, IDLER

$

$

Not available

6

Toro 94-4658-03

PUMP MOUNT ASM

$451.99

$

Usually ships in 3-6 days

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

8

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

9

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

11

Toro 9202204

Washer
(Superseded to 920220)

$3.99

$

Usually ships in 3-6 days

0

12

Toro 94-4688

SPACER-SHAFT, ENGINE

$

$

Not available

13

Toro 5-0698

KEY

$2.99

$

In Stock, only 1 left!

0

14

Toro 94-4628

PULLEY-ENGINE

$

$

Not available

15

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 3 left!

0

16

Toro 94-4689

SPACER-SHAFT, ENGINE

$

$

Not available

17

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 94-4607

V-BELT

$73.99

$

In Stock, only 1 left!

0

19

Toro 94-4608

BELT - PTO (SET)

$54.99

$

In Stock, only 1 left!

0

20

Toro 94-4632

Clutch ASM
(Superseded to 105-1671)

$474.99

$

Usually ships in 3-6 days

0

21

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

22

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

23

Toro 98-1301-03

STOP-CLUTCH

$

$

Not available

24

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 88-6460

SPRING-EXTENSION

$55.99

$

Usually ships in 3-6 days

0

26

Toro 66-4210

PULLEY-IDLER

$58.99

$

Usually ships in 3-6 days

0

27

Toro 94-4685

SPACER-IDLER

$25.99

$

Usually ships in 3-6 days

0

28

Toro 95-1967

SPACER - SPRING

$

$

Not available

29

Toro 114511

SPACER

$73.99

$

Usually ships in 3-6 days

0

30

Toro 95-1968

IDLER ARM ASM

$

$

Not available

31

Toro 323-31

Screw-Hhcs
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

32

Toro 94-4629

PULLEY-CLUTCH

$416.99

$

Usually ships in 3-6 days

0

33

Toro 3246-3

SCREW-HSH

$13.99

$

Usually ships in 3-6 days

0

34

Toro 94-4641

Gearbox-PTO Drive
(Superseded to 104-2433)

$3162.99

$

Usually ships in 3-6 days

0

35

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

36

Toro 80-8170

PULLEY-PUMP, TRACTION

$104.99

$

Usually ships in 3-6 days

0

37

Toro 80-6090

KEY-PUMP

$9.99

$

Usually ships in 3-6 days

0

38

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

39

Toro 94-4787-03

MOUNT-PLATE, PUMP

$

$

Not available

40

Toro 323-18

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

41

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

0
