74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) AIR INTAKE Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

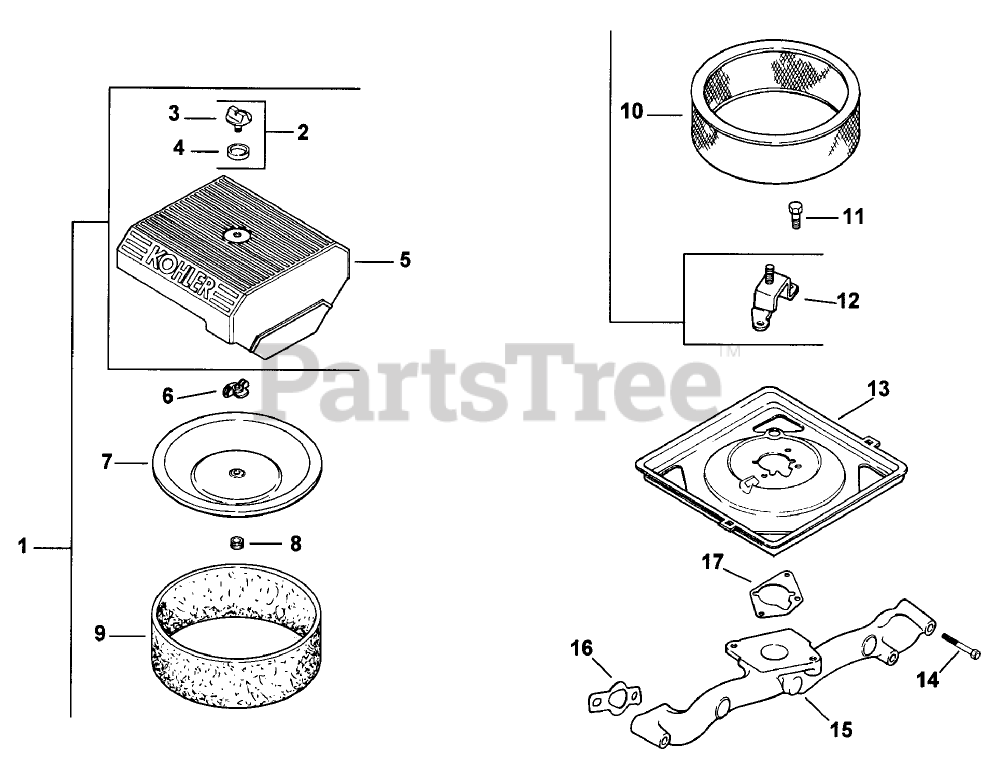

AIR INTAKE Parts Diagram

  • Title

1

2474305

Kit, air cleaner cover (Includes 2-5,12)

$

$

Not available

2

5475501

Kit, knob w/seal (Includes 3,4)

$

$

Not available

3

2534103

Knob-Cover

$

$

Not available

4

2415315

O-Ring

$

$

Not available

5

2409624

Cover-Air Cleaner

$

$

Not available

6

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

$3.99

$

In Stock, only 2 left!

0

7

Kohler 24 096 01

Cover-Inner AirCleaner
(Superseded to 24 096 01-S)

$16.99

$

In Stock, only 1 left!

0

8

Kohler 230046

Seal
(Superseded to 230046-S)

$6.49

$

In Stock, only 1 left!

0

9

Kohler 24 083 05

Precleaner-Element
(Superseded to 24 083 05-S)

$6.99

$

In Stock, only 4 left!

0

10

2408303

Element, air cleaner

$

$

Not available

11

Kohler M-0645016

Screw
(Superseded to M-645016)

$3.99

$

In Stock, Qty 15

0

12

2412643

Bracket-Air Cleaner

$

$

Not available

13

2409411

Base, air cleaner

$

$

Not available

14

Kohler M-0651055

Screw
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

15

Kohler 24 164 14

Manifold
(Superseded to 24 164 14-S)

$229.99

$

Usually ships in 2-5 days

0

16

Kohler 24 041 01

Gasket-Intake, Manifold
(Superseded to 24 041 01-S)

$2.99

$

In Stock, Qty 7

0

17

Kohler 24 041 06

Gasket
(Superseded to 24 041 06-S)

$2.99

$

In Stock, Qty 20+

0
