74180 (Z 320) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089001200 - 089999999) (1998) OIL PAN/LUBRICATION Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

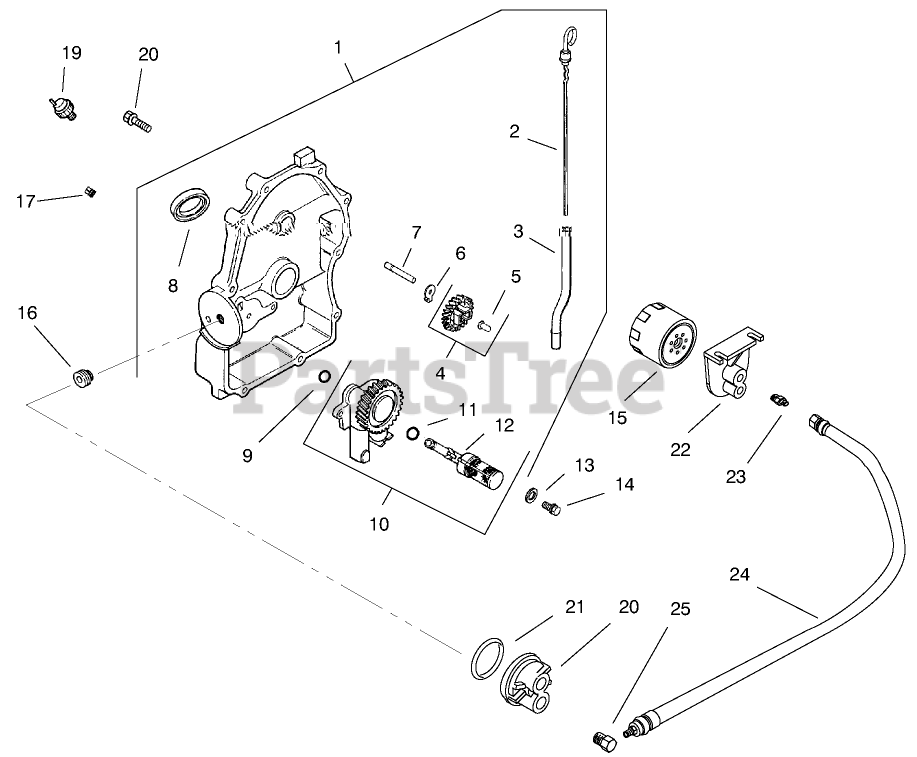

OIL PAN/LUBRICATION Parts Diagram

  • Title

1

2400982

Plate, closure Asm (Inc 2-12)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$

$

Not available

2

2403803

Dipstick

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$

$

Not available

3

2412404

Tube, dipstick

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$

$

Not available

4

Kohler 24 043 12

Kit, governor gear (Includes 5)
(Superseded to 24 043 12-S)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$68.99

$

In Stock, Qty 12

0

5

Kohler 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$3.49

$

In Stock, Qty 9

0

6

Kohler 52 448 02

Tab-Locking
(Superseded to 52 448 02-S)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$2.49

$

In Stock, only 2 left!

0

7

Kohler 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$4.49

$

In Stock, Qty 8

0

8

Kohler 52 032 08

Seal-Oil
(Superseded to 52 032 08-S)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$10.99

$

In Stock, Qty 20+

0

9

Kohler 24 153 08

O Ring
(Superseded to 24 153 08-S)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$6.99

$

In Stock, only 1 left!

0

10

Kohler 24 393 10

Oil pump Asm (Incl. 11-12)
(Superseded to 24 393 10-S)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$

$

Not available

11

Kohler 24 153 01

O-Ring
(Superseded to 24 153 01-S)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$2.49

$

In Stock, Qty 8

0

12

Kohler 24 381 04

Pick Up-Oil
(Superseded to 24 381 04-S)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$34.99

$

In Stock, only 1 left!

0

13

Kohler M-0631005

Washer
(Superseded to M-631005)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$2.49

$

In Stock, only 1 left!

0

14

Kohler M-0645025

Screw
(Superseded to M-645025)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$2.49

$

In Stock, only 3 left!

0

15

5205002

Filter-Oil

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$

$

Not available

16

Kohler 24 136 01

Nipple-Filter, Oil
(Superseded to 24 136 09-S)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$5.99

$

Usually ships in 2-5 days

0

17

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$3.49

$

In Stock, only 2 left!

0

18

Kohler 24 086 16

Screw
(Superseded to 24 086 17-S)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$2.49

$

In Stock, Qty 5

0

19

Kohler 24 099 03

Switch-Pressure
(Superseded to 24 755 425-S)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$29.99

$

In Stock, only 1 left!

0

2511305

Decal-Oil Sentry

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$

$

Not available

20

2402902

Adapter-Oil Filter

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$

$

Not available

21

2415313

O-Ring

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$

$

Not available

22

2502901

Adapter-Remote Filter

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$

$

Not available

23

5213602

Nipple (2)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$

$

Not available

24

5232611

Hose-Oil (2)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$

$

Not available

25

2429404

Fitting (2)

Note: Kohler Engine CH20S PS-64610 Obtain Parts From Kohler

$

$

Not available
