74180 (Z 320) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089000235 - 089001199) (1998) STEERING CONTROLS Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

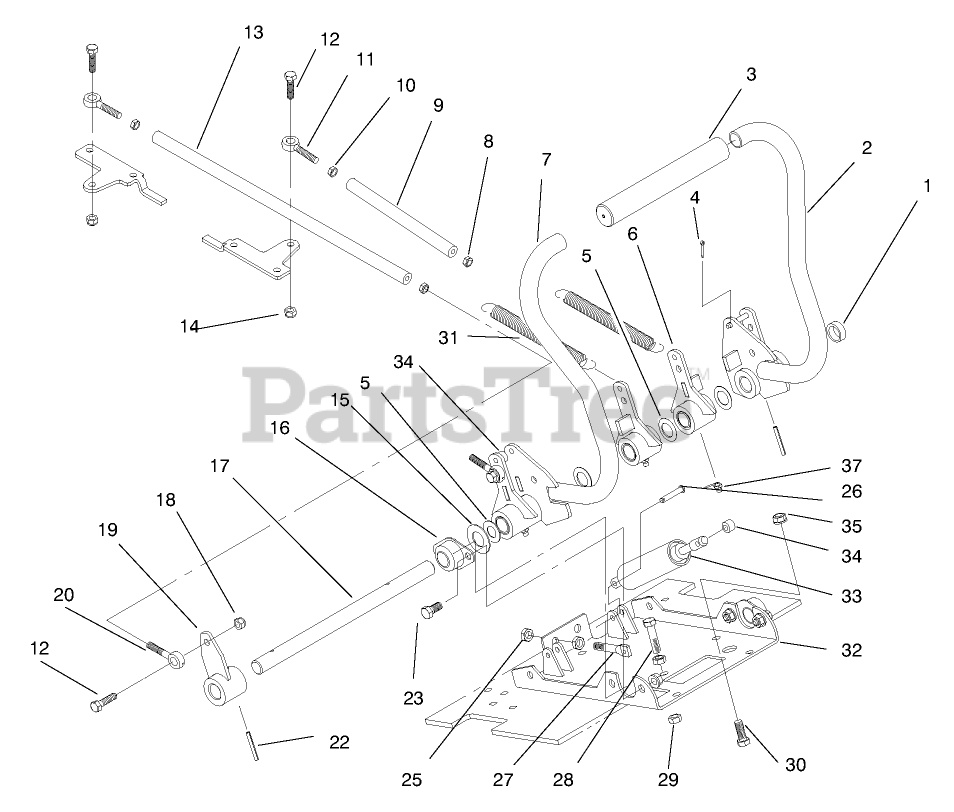

STEERING CONTROLS Parts Diagram

  • Title
1

Toro 94-9524

SPACER-CONTROL

$113.99

$

Usually ships in 3-6 days

0

2

Toro 94-9517-03

LH CONTROL HANDLE ASM

$

$

Not available

3

Toro 94-9490

GRIP-CUSHION

$

$

Not available

4

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

5

Toro 9202574

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

6

Toro 94-9552

CENTER CONTROL ASM

$

$

Not available

7

Toro 94-9551

RH CONTROL HANDLE ASM

$

$

Not available

8

Toro 3220-20

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0

9

Toro 94-4717

ROD-CONTROL, RH

$120.99

$

Usually ships in 3-6 days

0

10

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

11

Toro 2411-52

BEARING-ROD END, RH

$37.99

$

Usually ships in 3-6 days

0

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 94-4718

ROD-CONTROL, LH

$

$

Not available

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-39

WASHER-FLAT

$1.49

$

In Stock, only 3 left!

0

16

Toro 27-2320

BEARING

$20.99

$

Usually ships in 3-6 days

0

17

Toro 94-9515

SHAFT-CONTROL

$

$

Not available

18

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

19

Toro 94-9594-03

CONTROL HUB ASM

$

$

Not available

20

Toro 2411-53

BEARING-ROD END, LH

$37.99

$

In Stock, only 2 left!

0

22

Toro 32121-103

PIN-SPRING

$

$

Not available

23

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

25

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

26

Toro 283-66

PIN-CLEVIS

$3.99

$

Usually ships in 3-6 days

0

27

Toro 113697

EYE-BOLT 3/8-16X2.50

$

$

Not available

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

30

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

31

Toro 98-1322

SPRING - EXTENSION

$24.99

$

Usually ships in 3-6 days

0

32

Toro 94-9591-03

CHANNEL MOUNT ASM

$

$

Not available

33

Toro 94-9596

DAMPER - CONTROL
(Superseded to 105-1666)

$284.99

$

Usually ships in 3-6 days

0

34

Toro 94-9593

SPACER - DAMPER

$

$

Not available

35

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

37

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0
