74180 (Z 320) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) STARTER SYSTEM Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

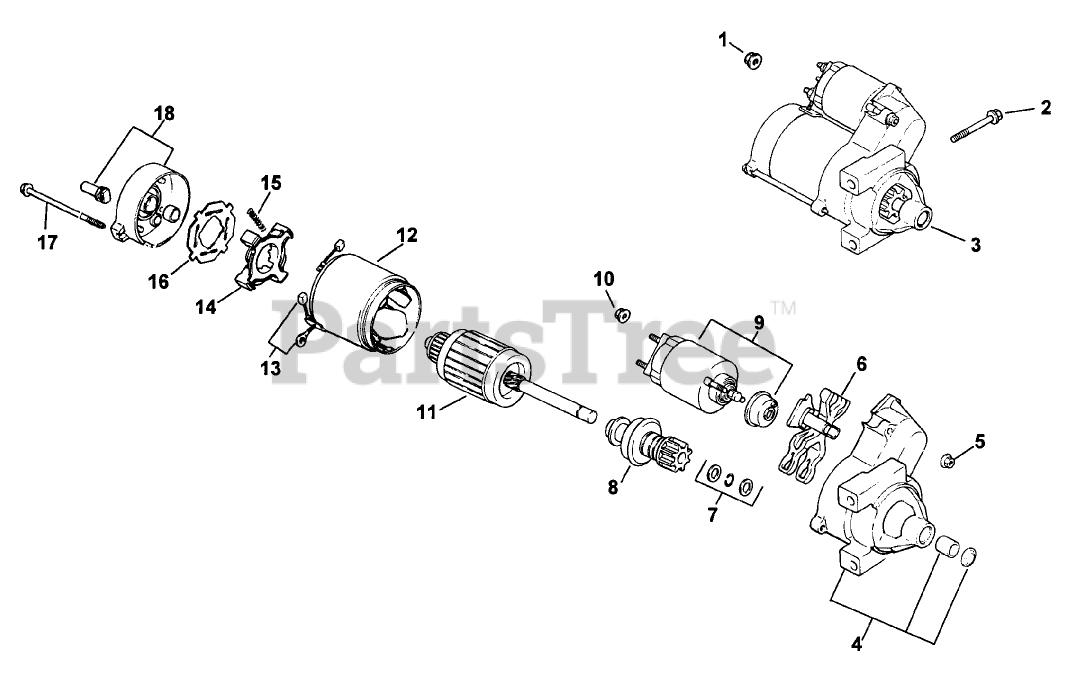

STARTER SYSTEM Parts Diagram

  • Title

1

Kohler M-0841080

Nut
(Superseded to M-841080)

$2.49

$

In Stock, only 1 left!

0

2

Kohler M-0839080

Scew

$

$

Not available

3

2409801

Starter, solenoid shift Asm (Incl. 4-18)

$

$

Not available

4

2408104

Cap-Drive End

$

$

Not available

5

5210010

Nut

$

$

Not available

6

1209010

Lever Starter Drive

$

$

Not available

7

2475584

Washer

$

$

Not available

8

1223901

Drive Pinion

$

$

Not available

9

5243502

Solenoid

$

$

Not available

10

5210009

Nut

$

$

Not available

11

1217004

Armature-Starter

$

$

Not available

12

1247101

Frame

$

$

Not available

13

5222101

Kit, brush & spring (Incl. 15)

$

$

Not available

14

5232303

Holder-Brush

$

$

Not available

15

5208909

Spring Brush

$

$

Not available

16

5216801

Insulator

$

$

Not available

17

5221105

Bolt

$

$

Not available

18

2430101

Commutator-End Cap

$

$

Not available
