74179 (Z 149) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230007001 - 230999999) (2003) PISTON/CRANKSHAFT ASSEMBLY KAWASAKI FH601V-DS06 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

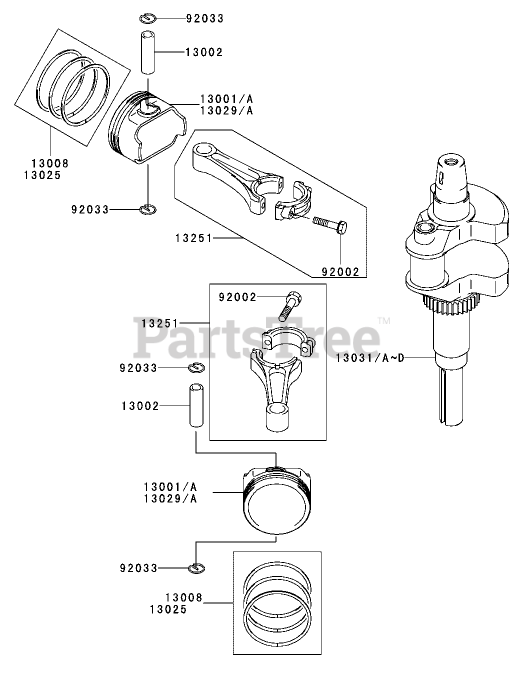

PISTON/CRANKSHAFT ASSEMBLY KAWASAKI FH601V-DS06 Parts Diagram

  • Title
13001

Kawasaki 13001-7007

Piston-Engine
(Superseded to 13001-7006)

$39.99

$

In Stock, only 3 left!

0

13002

Kawasaki 13002-7001

Pin-Piston

$4.99

$

In Stock, Qty 12

0

13008

Kawasaki 13008-6058

Piston Ring Set

$81.99

$

In Stock, Qty 20+

0

13025

Kawasaki 13025-7002

Piston Ring Set (L, 0.50)

$54.99

$

In Stock, only 2 left!

0

13029A

Kawasaki 13029-7003

Piston-Engine (L, 0.50)
(Superseded to 13029-7002)

$

$

Not available

13031

Kawasaki 13031-7015

Crankshaft-Comp
(Superseded to 13031-7023)

$

$

Not available

13251

Kawasaki 13251-7006

Rod-Assy-Connecting
(Superseded to 13251-0715)

$61.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 92002-2053

Bolt
(Superseded to 315601-3245A)

$6.99

$

In Stock, Qty 12

0

92033

$0.99

$

In Stock, Qty 7

0
