74179 (Z 149) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230007000) (2003) IDLER, PULLEY/LIFT STRUT, CHAIN ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

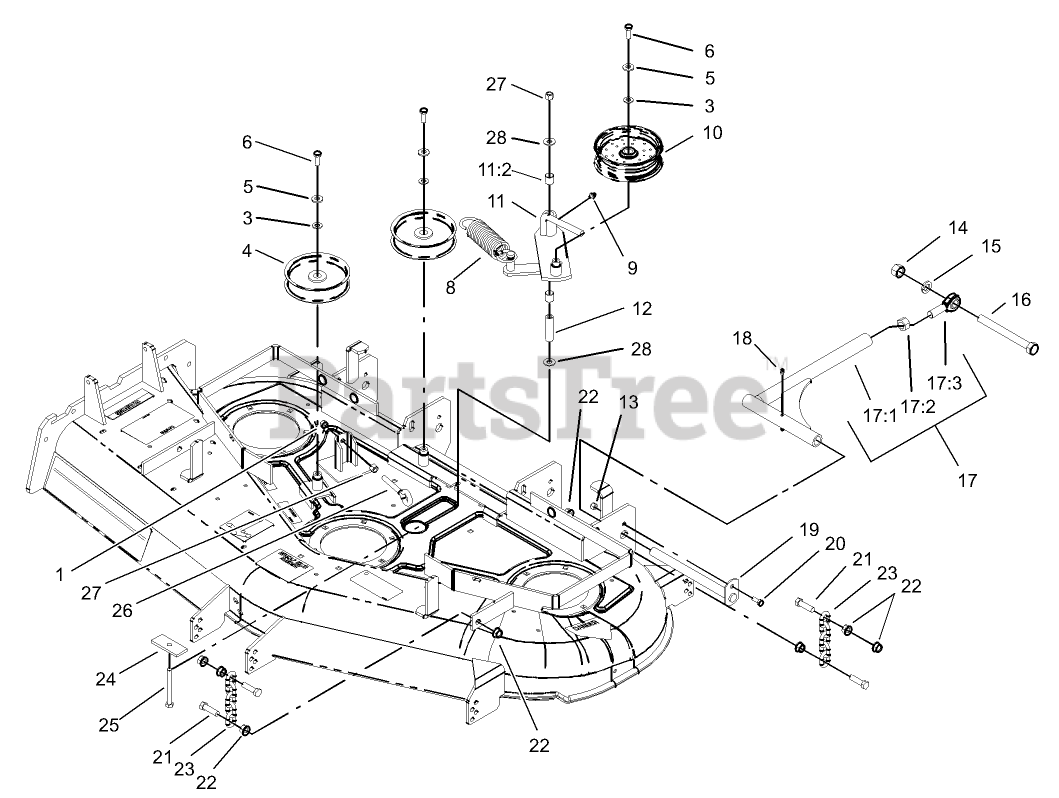

IDLER, PULLEY/LIFT STRUT, CHAIN ASSEMBLY Parts Diagram

  • Title
1

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

4

Toro 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

0

5

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

6

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Toro 103-3330

Spring-Extension
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

9

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

10

Toro 1-413099

PULLEY-IDLER
(Superseded to 116-4666)

$67.99

$

In Stock, Qty 17

0

11

Toro 99-3879

IDLER ARM ASM

$

$

Not available

11:2

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

12

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 14

0

15

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

$15.99

$

In Stock, only 1 left!

0

17

Toro 103-1081

STRUT ASM

$264.99

$

In Stock, only 1 left!

0

17:1

Toro 103-1072-01

STRUT
(Superseded to 109-1181)

$103.99

$

In Stock, Qty 9

0

17:2

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

17:3

Toro 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

0

18

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

19

Toro 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

21

Toro 1-800811

SCREW-CAP, HH

$11.99

$

In Stock, only 3 left!

0

22

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

23

Toro 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

24

Toro 99-3946-01

PLATE-RETAINER, BOLT

$

$

Not available

25

Toro 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

26

Toro 94-2547

BOLT-EYE

$27.99

$

Usually ships in 3-6 days

0

27

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

28

Toro 1-809107

WASHER-HARDENED

$5.49

$

In Stock, only 2 left!

0
