74179 (Z 149) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230007000) (2003) CONTROL EQUIPMENT ASSEMBLY KAWASAKI FH601V-DS06 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

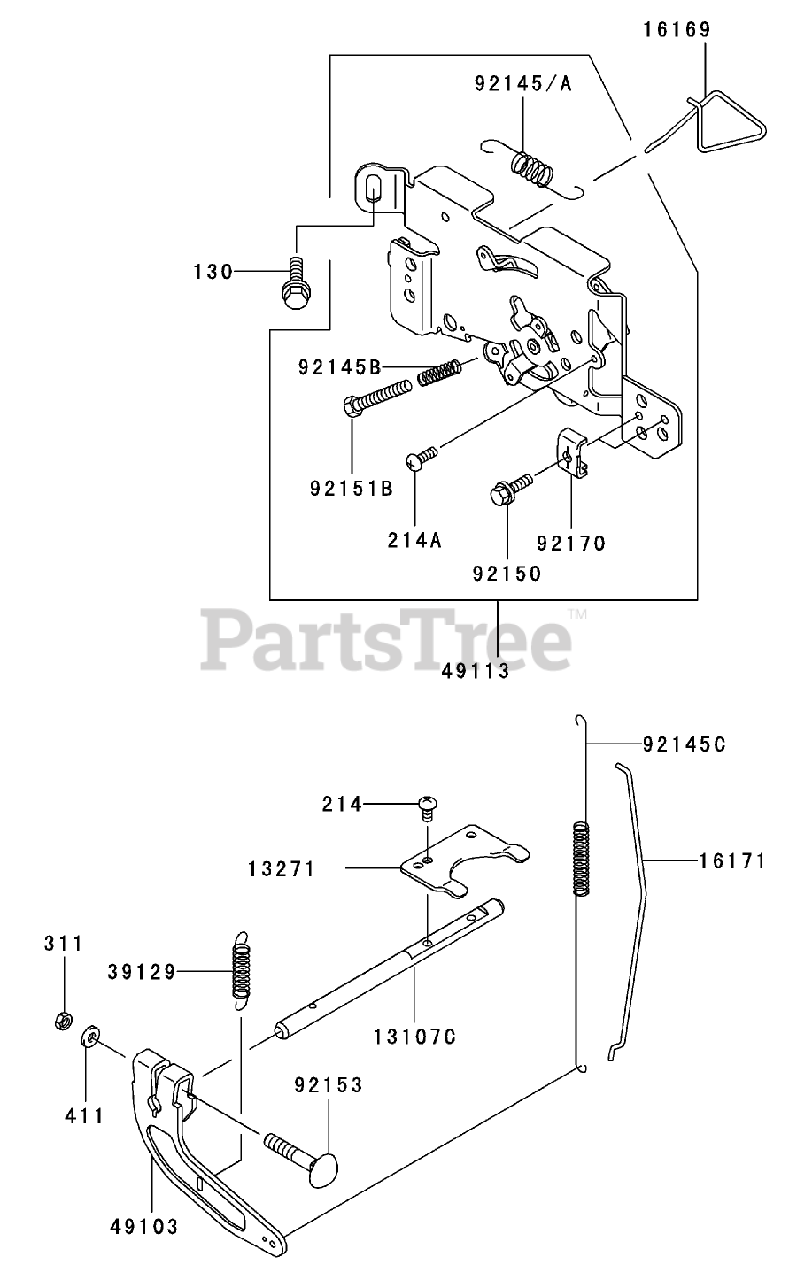

CONTROL EQUIPMENT ASSEMBLY KAWASAKI FH601V-DS06 Parts Diagram

  • Title

13107

Kawasaki 13107-7013

Shaft
(Superseded to 13107-0751)

$12.99

$

In Stock, Qty 6

0

13270

Kawasaki 13271-7018

Plate
(Superseded to 13271-7032)

$3.99

$

In Stock, Qty 6

0

16169

Kawasaki 16169-7006

Link-Choke
(Superseded to 16169-7005)

$3.49

$

In Stock, Qty 20+

0

16171

Kawasaki 16171-7004

Link
(Superseded to 16171-0040)

$2.49

$

In Stock, Qty 20+

0

39129

Kawasaki 39129-7004

Spring-Governor

$5.49

$

In Stock, Qty 20+

0

49103

Kawasaki 49103-7004

Arm-Governor
(Superseded to 49103-7002)

$7.99

$

In Stock, Qty 12

0

49113

Kawasaki 49113-7017

Panel-Control
(Superseded to 49113-7007)

$27.99

$

In Stock, Qty 10

0

92145

Kawasaki 92145-7005

Spring

$0.99

$

In Stock, Qty 12

0

92145B

Kawasaki 92145-7005

Spring

$0.99

$

In Stock, Qty 12

0

92145C

Kawasaki 92145-7009

Spring
(Superseded to 92145-7034)

$3.49

$

In Stock, Qty 20+

0

92150

Kawasaki 92150-2182

BOLT (5X18)

$0.99

$

In Stock, Qty 20+

0

92151B

Kawasaki 92151-7014

Bolt (5x30)

$1.49

$

In Stock, Qty 5

0

92153

Toro 92151-7005

Bolt, 6x35

$

$

Currently unavailable

92170

Kawasaki 92170-7001

Clamp

$2.99

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

214

Kawasaki 214B0408

SCREW-PAN (4X8)
(Superseded to 214AA0408)

$3.99

$

In Stock, Qty 15

0

214A

Kawasaki 214B0412

Screw-Pan
(Superseded to 214AA0412)

$0.99

$

In Stock, Qty 6

0

311

Toro 311B0600

NUT-HEX (6mm)

$

$

Currently unavailable

411

Kawasaki 411B0600

Washer-Plain (6mm)
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0
