74179 (Z 149) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230005001 - 230006000) (2003) VALVE/CAMSHAFT ASSEMBLY KAWASAKI FH601V-DS06 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

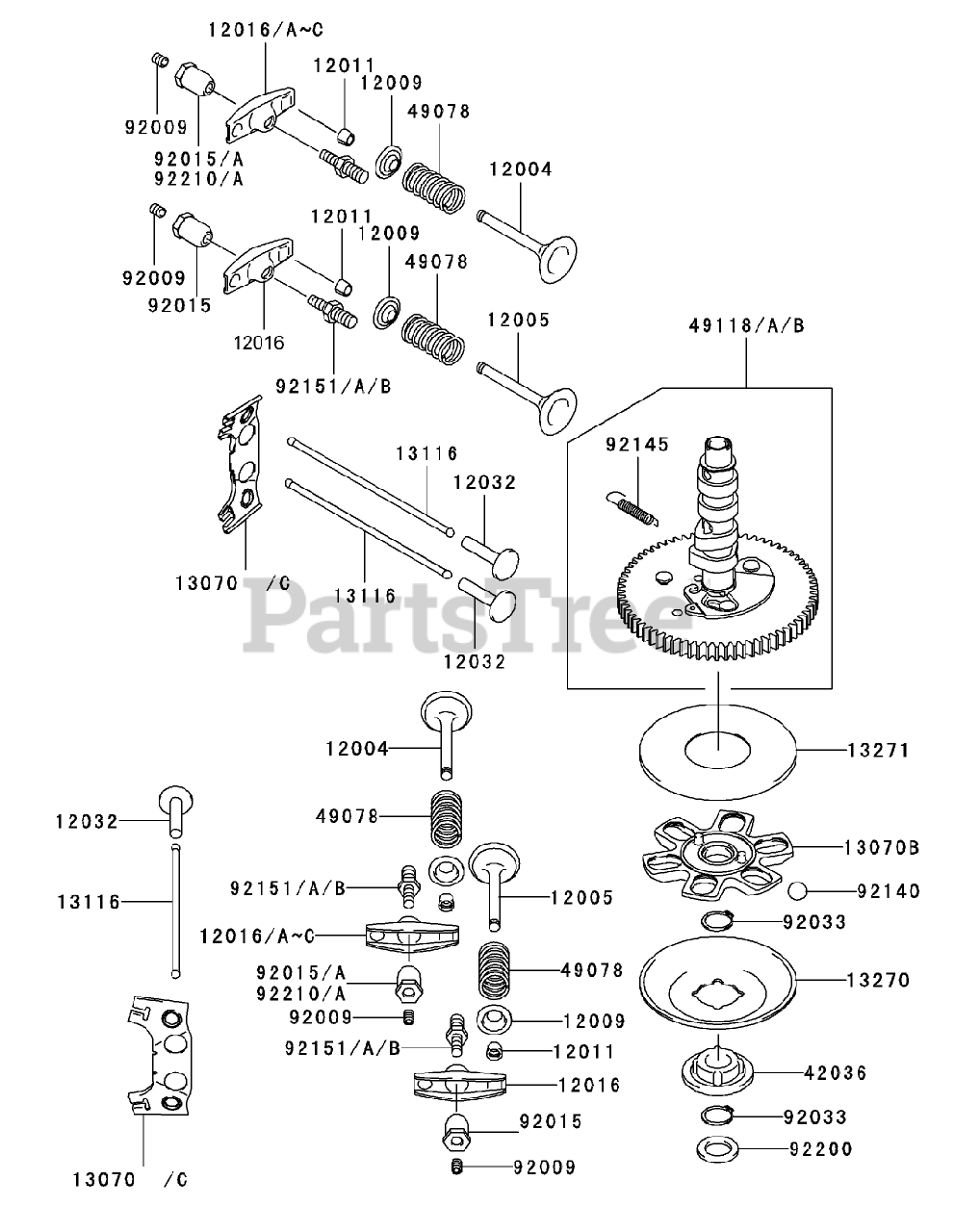

VALVE/CAMSHAFT ASSEMBLY KAWASAKI FH601V-DS06 Parts Diagram

  • Title

12004

Kawasaki 12004-7002

Valve-Intake

$18.99

$

In Stock, Qty 20+

0

12005

Kawasaki 12005-7002

Valve-Exhaust
(Superseded to 12005-7004)

$43.99

$

In Stock, Qty 20+

0

12009

Kawasaki 12009-7001

RETAINER-SPRING, VALVE

$2.49

$

In Stock, Qty 20+

0

12011

Kawasaki 12011-2056

Collet

$2.99

$

In Stock, Qty 20+

0

12016

Toro 12016-7006

Arm-Rocker

$

$

Currently unavailable

12032

Kawasaki 12032-7001

Tappet

$8.99

$

In Stock, Qty 20+

0

13070

Kawasaki 13070-7004

Guide
(Superseded to 13070-7002)

$5.99

$

In Stock, Qty 20+

0

13070A

Kawasaki 13070-7007

Guide
(Superseded to 13070-7003)

$4.99

$

In Stock, Qty 20+

0

13116

Kawasaki 13116-7002

Rod-Push
(Superseded to 13116-7001)

$4.99

$

In Stock, Qty 20+

0

13270

Kawasaki 13270-7002

Plate
(Superseded to 13271-7021)

$5.49

$

In Stock, Qty 18

0

13271

Kawasaki 13271-7007

Plate
(Superseded to 13270-7003)

$5.49

$

In Stock, Qty 10

0

42036

Toro 42036-7001

Sleeve

$

$

Currently unavailable

49078

Kawasaki 49078-7002

Spring-Valve, Engine (INTAKE)

$6.99

$

In Stock, Qty 20+

0

49118

Kawasaki 49118-7007

Camshaft
(Superseded to 99999-7074)

$109.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2341

Screw

$2.49

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-2253

Nut

$4.49

$

In Stock, Qty 20+

0

92033

Kawasaki 92033-7001

Ring-Snap
(Superseded to 92033-0727)

$0.99

$

In Stock, Qty 20+

0

92140

Kawasaki 92140-7002

Ball
(Superseded to 92140-7005)

$

$

Not available

92145

Kawasaki 92145-7001

Spring
(Superseded to 921451653)

$1.49

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-7019

Bolt
(Superseded to 92153-7019)

$2.49

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-7001

Washer

$1.99

$

In Stock, Qty 11

0
