74179 (Z 149) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230005001 - 230006000) (2003) CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FH601V-DS06 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

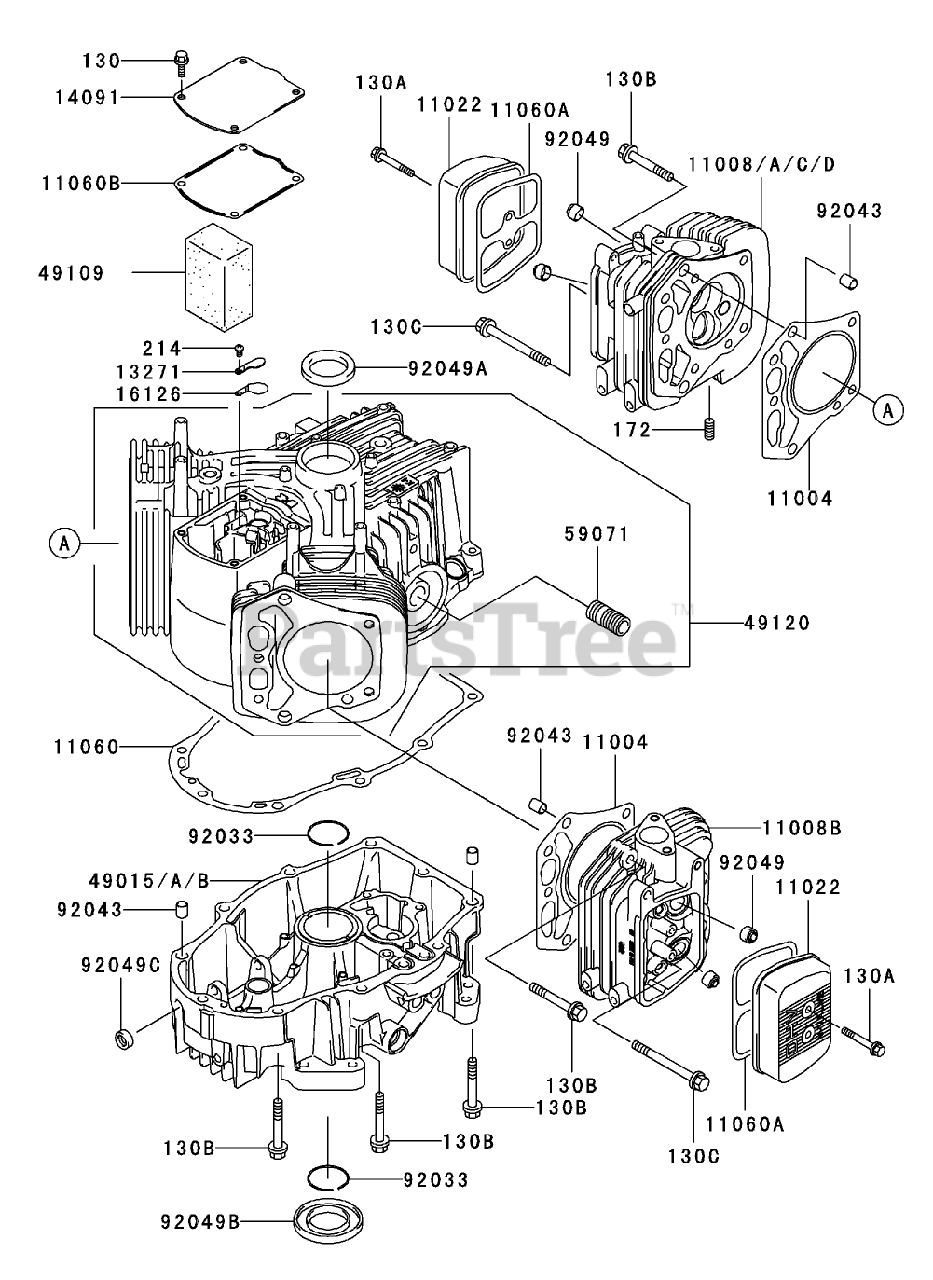

CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FH601V-DS06 Parts Diagram

  • Title
11004

Kawasaki 11004-7004

Gasket-Head
(Superseded to 11004-7006)

$10.99

$

In Stock, Qty 20+

0

11008

Toro 11008-7007

Head-Comp-Cylinder No. 1

$

$

Currently unavailable

11008A

Toro 11008-7004

Head-Comp-Cylinder No. 2

$

$

Currently unavailable

11022

Toro 11022-7002

Case-Rocker

$

$

Currently unavailable

11060

Kawasaki 11060-7012

Gasket-Cover, Crankcase
(Superseded to 11061-7098)

$48.99

$

In Stock, Qty 16

0

11060A

Kawasaki 11060-7013

Gasket-Case, Rocker

$5.99

$

In Stock, Qty 20+

0

11060B

Kawasaki 11060-7014

Gasket-Breather

$6.49

$

In Stock, Qty 20+

0

13271

$1.49

$

In Stock, Qty 20+

0

14090

$3.99

$

In Stock, Qty 14

0

16126

$2.49

$

In Stock, Qty 20+

0

49015

Kawasaki 49015-6225

Cover-Crankcase
(Superseded to 49015-6255)

$218.99

$

Usually ships in 2-5 days

0

49109

Kawasaki 49109-7003

Element-Breather
(Superseded to 99999-7072)

$14.99

$

In Stock, Qty 20+

0

49120

Kawasaki 49120-6130

Crankcase-Comp

$

$

Not available

59071

$6.49

$

In Stock, Qty 8

0

92033

$0.99

$

In Stock, Qty 20+

0

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-7001

SEAL-OIL, R V C2 (6X11X10.2)

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7002

Seal-Oil
(Superseded to 92049-7010)

$3.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7004

Seal-Oil
(Superseded to 92049-7011)

$5.99

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7005

SEAL-OIL, S O (8X14X5 H S)
(Superseded to 920497019)

$2.49

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0640

Bolt-Flanged (6X40)
(Superseded to 130AA0640)

$0.99

$

In Stock, Qty 20+

0

130B

Toro 130T0850

Bolt-Flanged (8X50)

$

$

Currently unavailable

130C

Kawasaki 130T0875

Bolt-Flanged (8X75)
(Superseded to 130CA0875)

$2.49

$

In Stock, Qty 9

0

172

Toro 172G0818

Bolt-Stud (8X18)

$

$

Currently unavailable

214

Kawasaki 214B0408

SCREW-PAN (4X8)
(Superseded to 214AA0408)

$3.99

$

In Stock, Qty 15

0
