74178 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230007001 - 230999999) (2003) OIL PAN/LUBRICATION ASSEMBLY KOHLER CV20S PRO 65593 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

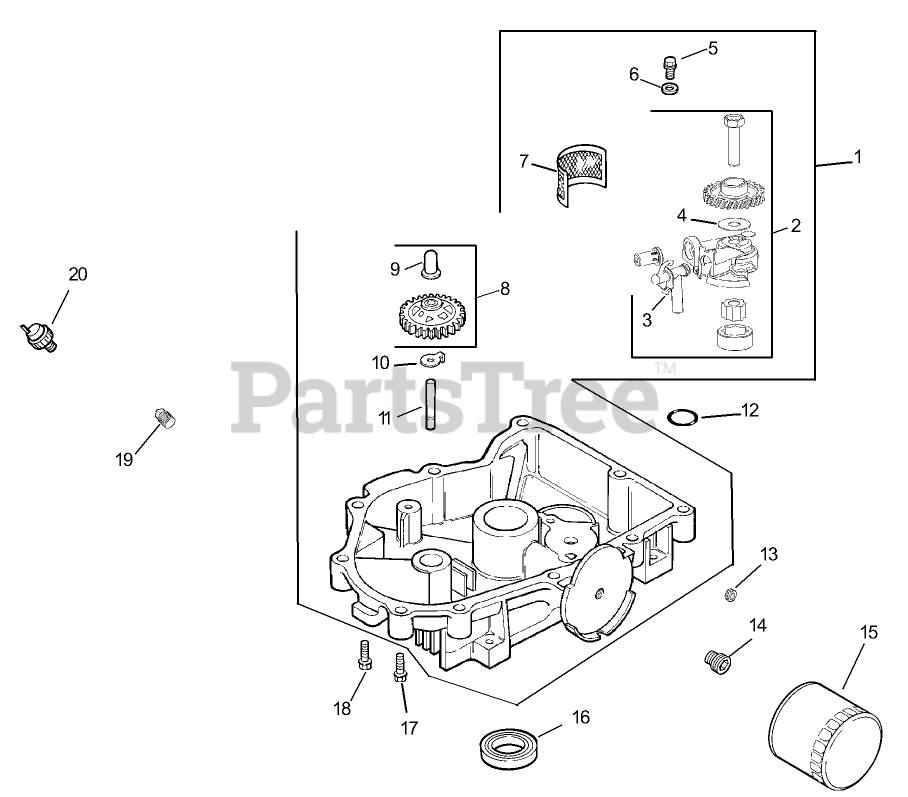

OIL PAN/LUBRICATION ASSEMBLY KOHLER CV20S PRO 65593 Parts Diagram

  • Title

1

Kohler 24 199 07-S

Pan, oil assembly (Includes 2-10)
(Superseded to 24 199 35-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$337.99

$

In Stock, only 1 left!

0

2

Kohler 24 393 37-S

Oil Pump ASM
(Superseded to 24 393 53-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler 24 393 37-S

Pump assembly, oil (Includes 3, 4) for SN 3229000001 and later
(Superseded to 24 393 53-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Kohler 24 381 11-S

Tube-pickup, oil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler 24 153 01-S

O-RING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 8

0

5

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

6

Kohler M-631005-S

WASHER-FLAT (6 MM)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

7

Kohler 24 162 26-S

Screen-oil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 1 left!

0

8

Kohler 24 043 12-S

Kit, governor gear w/pin (Includes 9)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$68.99

$

In Stock, Qty 12

0

9

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 9

0

10

Kohler 52 448 02-S

Tab-Locking
(Superseded to 24 448 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

11

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

12

Kohler 24 153 08-S

O-Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, only 1 left!

0

13

Kohler 25 139 62-S

Plug-pipe, HH (3/8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 2 left!

0

14

Kohler 24 136 01-S

Nipple-Filter, Oil
(Superseded to 24 136 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

Usually ships in 2-5 days

0

15

Kohler 52 050 02-S

Filter-Oil
(Superseded to 52-050-02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$14.99

$

In Stock, Qty 20+

0

16

Kohler 52 032 08-S

SEAL-OIL (P-T-O END)
(Superseded to 25 032 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, Qty 20+

0

17

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0

18

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0

19

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

20

Kohler 24 099 03-S

SWITCH-PRESSURE, OIL
(Superseded to 24 755 425-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$29.99

$

In Stock, only 1 left!

0
