74178 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230007001 - 230999999) (2003) IGNITION/ELECTRICAL ASSEMBLY KOHLER CV20S PRO 65593 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

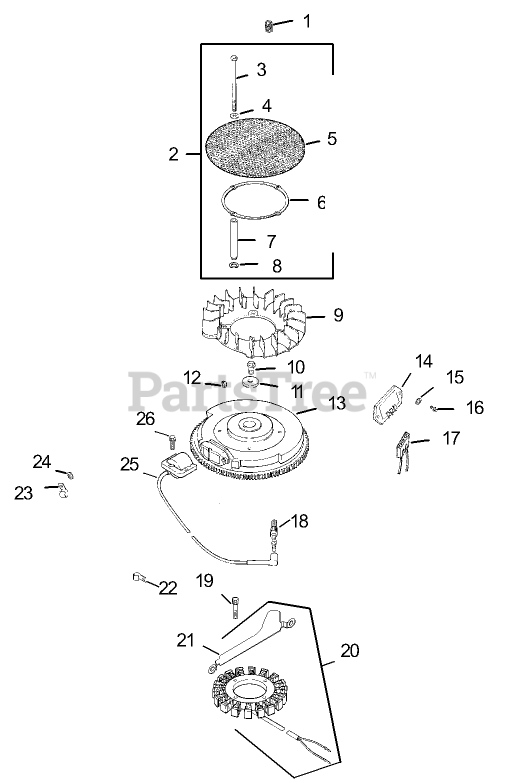

IGNITION/ELECTRICAL ASSEMBLY KOHLER CV20S PRO 65593 Parts Diagram

  • Title

1

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

2

Kohler 24 755 79-S

Kit, chopper screen (Includes 3-8, and41 037 10-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$130.99

$

Usually ships in 2-5 days

0

3

Kohler M-603100-S

Screw-HH (M6x1.0x100)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 4 left!

0

4

Kohler X-25-53-S

WASHER-FLAT (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

5

Kohler 24 162 25-S

Screen-Grass
(Superseded to 24 162 41-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$24.99

$

In Stock, only 1 left!

0

6

Kohler 24 141 06-S

Ring-Support
(Superseded to 25 141 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

Usually ships in 2-5 days

0

7

Kohler 24 112 14-S

Spacer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$18.99

$

Usually ships in 2-5 days

0

8

Kohler 24 468 11-S

Washer-Spring (10MM)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 24 157 08-S

Fan
(Superseded to 24 157 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$22.99

$

In Stock, only 1 left!

0

10

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 12

0

11

Kohler 12 468 03-S

WASHER-FLAT (13/32)
(Superseded to 25 468 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 2 left!

0

12

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 6

0

13

Kohler 24 025 01-S

Flywheel
(Superseded to 24 025 55-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler 25 403 03-S

Rectifier-Regulator, 15 amp
(Superseded to 41 403 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

15

Kohler X-25-92-S

WASHER-FLAT (.188)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

16

Kohler 24 086 18-S

SCREW-PHL HD (11-16X.88)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 236602-S

Connector (3 contact)
(Superseded to 25 155 41-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$24.99

$

In Stock, only 1 left!

0

18

Kohler 12 132 06-S

Spark Plug
(Superseded to 25 132 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$20.99

$

Usually ships in 2-5 days

0

19

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

20

Kohler 54 755 09-S

Kit, 15 amp stator (Includes 21)
(Superseded to 237878-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$149.99

$

In Stock, Qty 8

0

21

Kohler 24 126 71-S

Bracket-Wire, Stator
(Superseded to 24 126 139-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

Usually ships in 2-5 days

0

22

Kohler 235173-S

CLIP-CABLE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

Usually ships in 2-5 days

0

23

Kohler 48 154 02-S

Clip-Cable

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

Usually ships in 2-5 days

0

24

Kohler X-25-63-S

WASHER-FLAT (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

25

Kohler 24 584 25-S

Kit, ignition module (Includes 5)
(Superseded to 25 584 31-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$49.99

$

In Stock, only 2 left!

0

26

Kohler M-561025-S

Screw-Socket, Hex (M5x0.8x25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0

Kohler 24 176 109-S

Harness-Wiring

Note: Not illustrated

$46.99

$

Usually ships in 2-5 days

0

Kohler 24 176 109-S

Harness-Wiring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$46.99

$

Usually ships in 2-5 days

0

Kohler 24 518 12-S

Lead-Black

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 24 518 12-S

Lead-Black

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

Usually ships in 2-5 days

0

Kohler 24 113 18-S

DECAL-SCREEN, GRASS
(Superseded to 24 113 499-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

Usually ships in 2-5 days

0

Kohler 24 113 18-S

DECAL-SCREEN, GRASS
(Superseded to 24 113 499-S)

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 25 454 03-S

TIE-WIRE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

Kohler 25 454 03-S

TIE-WIRE

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0
